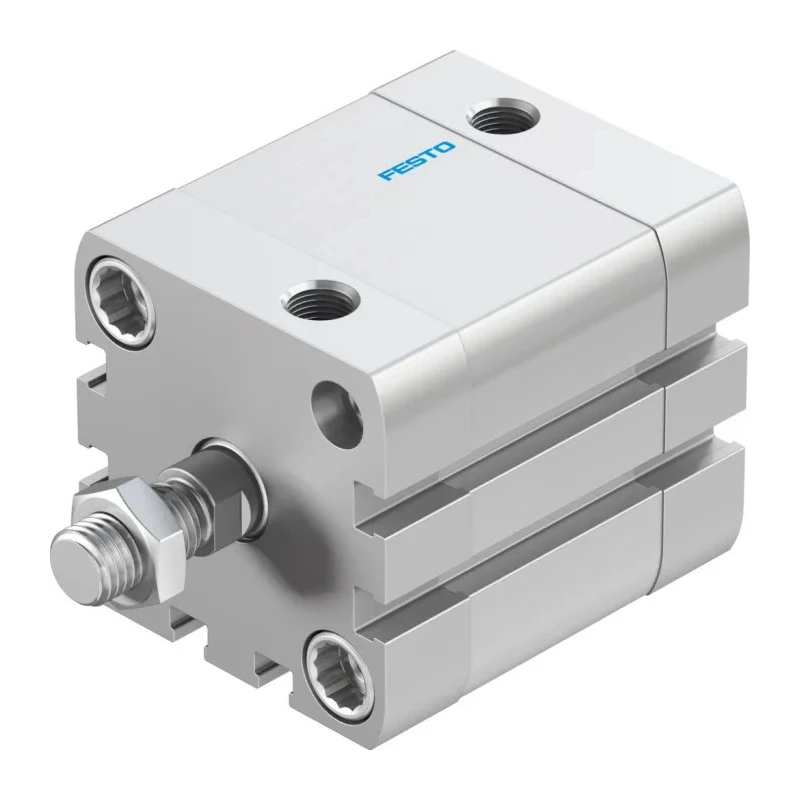

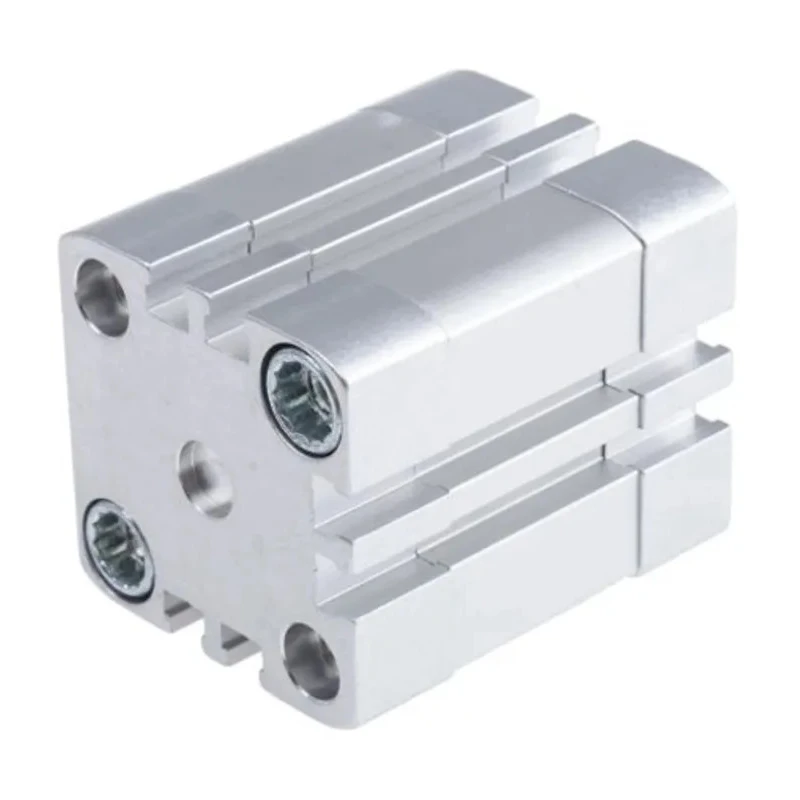

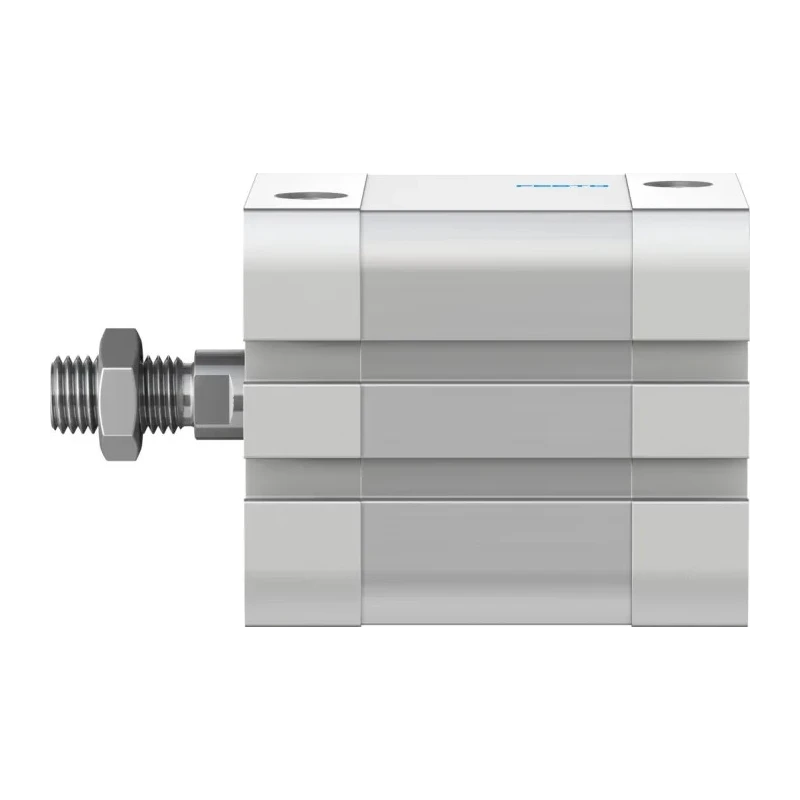

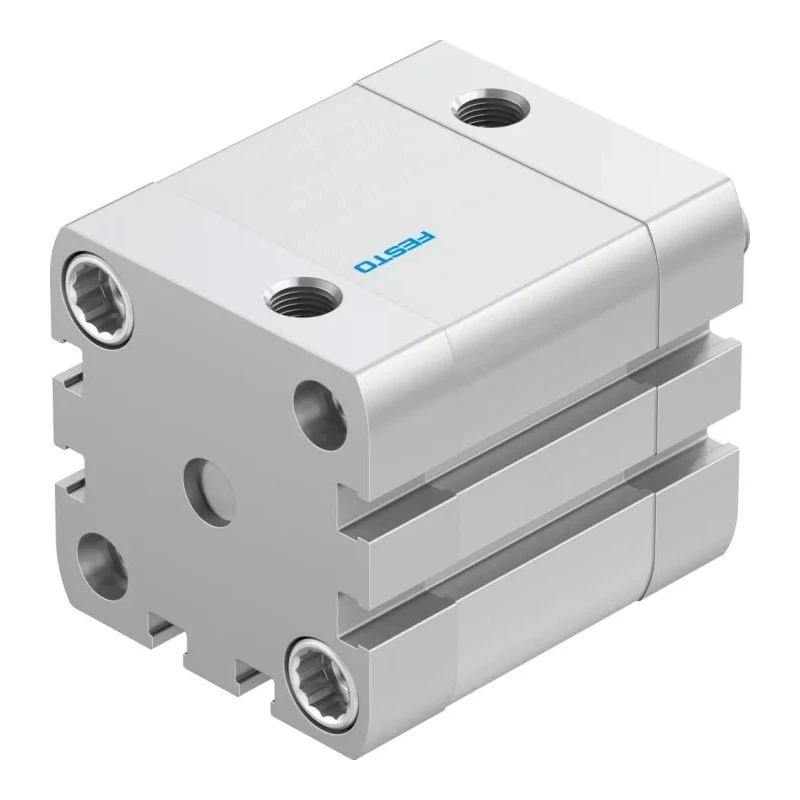

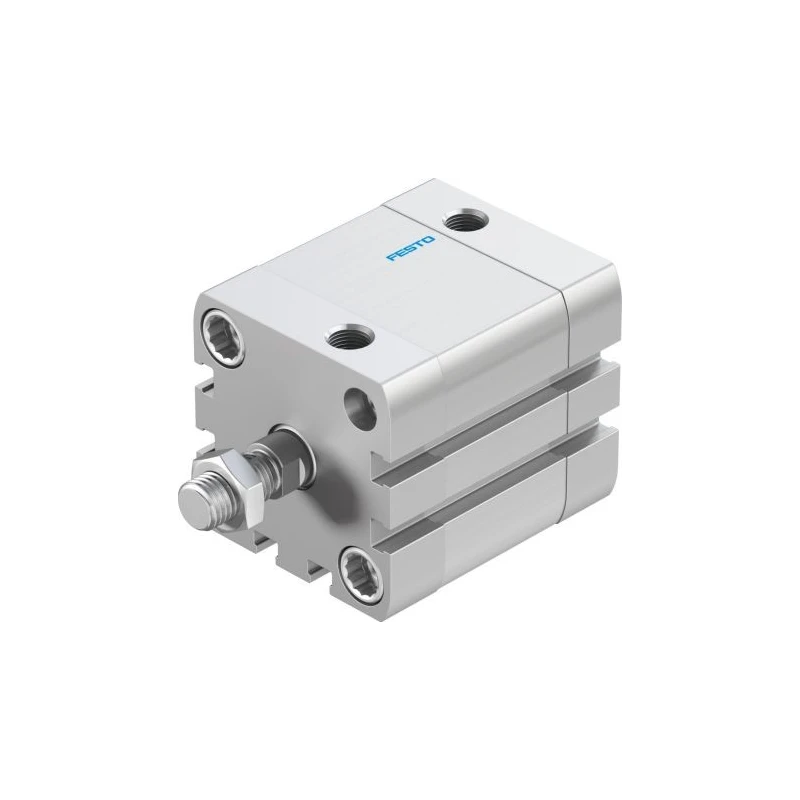

Festo Pneumatic Cylinder Aluminium Body Double Acting 40mm Bore 20mm Stroke M10x1.25 Thread ADN-40-20-A-P-A

Festo ADN-40-20-A-P-A Pneumatic Cylinder is a precision-engineered, double acting actuator designed for industrial automation and control systems. It features a 40mm bore diameter and a 20mm stroke length within a compact aluminium body, providing reliable linear motion for applications demanding short travel. The actuator utilizes elastic cushioning rings to moderate impact forces at stroke limits, enhancing durability and reducing maintenance needs.

This cylinder supports a maximum operating pressure of 10 bar and operates effectively in environments ranging from -20°C to 80°C, covering typical workshop and factory ambient conditions. The piston rod features an M10x1.25 male thread, enabling secure attachment of external accessories and tooling. The through-hole mounting design facilitates easy integration into frames or manifolds, ensuring precise alignment and stability during operation.

Common applications include pick-and-place units with short travel requirements, conveyor push-off mechanisms, gating operations, assembly jigs, and limited-travel valve actuation. Its compact size and light weight (438 grams) make it suitable for use in laboratory automation and other settings demanding precise, compact pneumatic solutions.

Compact pneumatic cylinder designed for precision short-travel linear actuation. 40mm bore provides substantial force for automation tasks. 20mm stroke length enables precise positioning in confined spaces. M10x1.25 piston rod thread allows secure fastening of accessories.

Aluminium body ensures reduced weight while maintaining strength. Suitable for pick-and-place units and conveyor push-off applications. Elastic cushioning rings absorb end-of-stroke shocks, extending component life. Rated for maximum operating pressure of 10 bar.

Operates reliably within temperature range of -20°C to 80°C. Through-hole mounting allows straightforward installation in various systems.

This Festo pneumatic cylinder conforms to ISO 21287 dimensional standards and complies with RoHS requirements for restricted substances, ensuring high quality and environmental compliance. It originates from Germany, reflecting precision manufacturing standards. For additional product options and related Pneumatic Cylinders, explore related categories on EnvMart.
