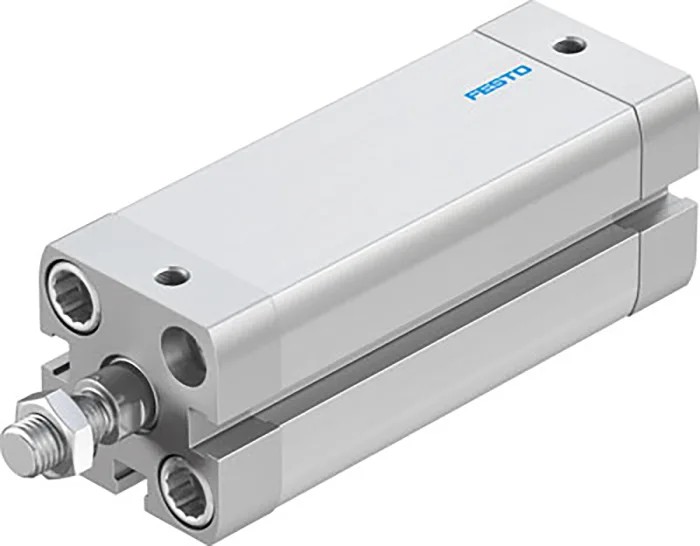

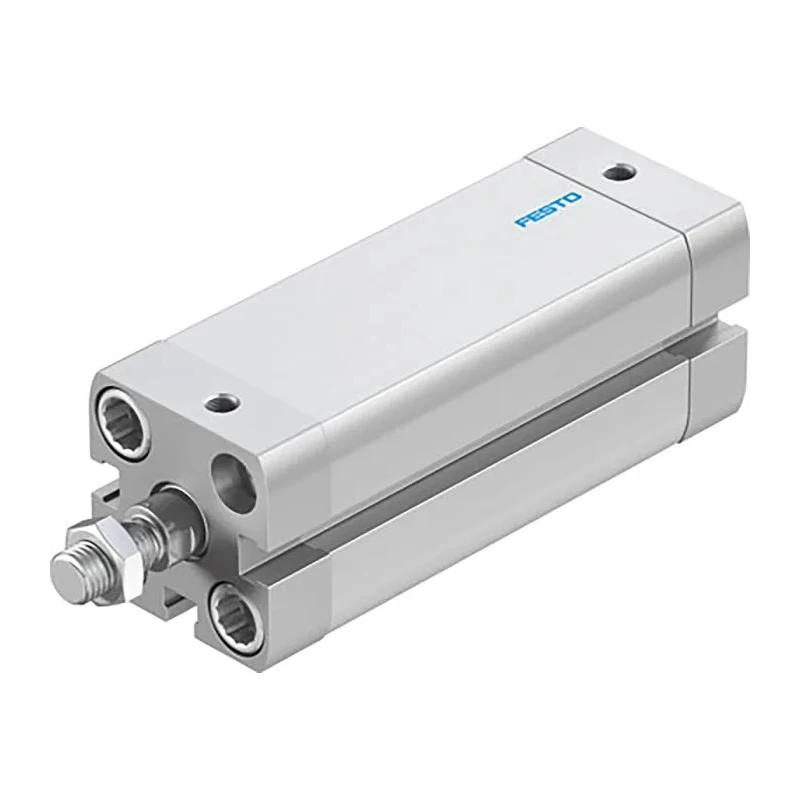

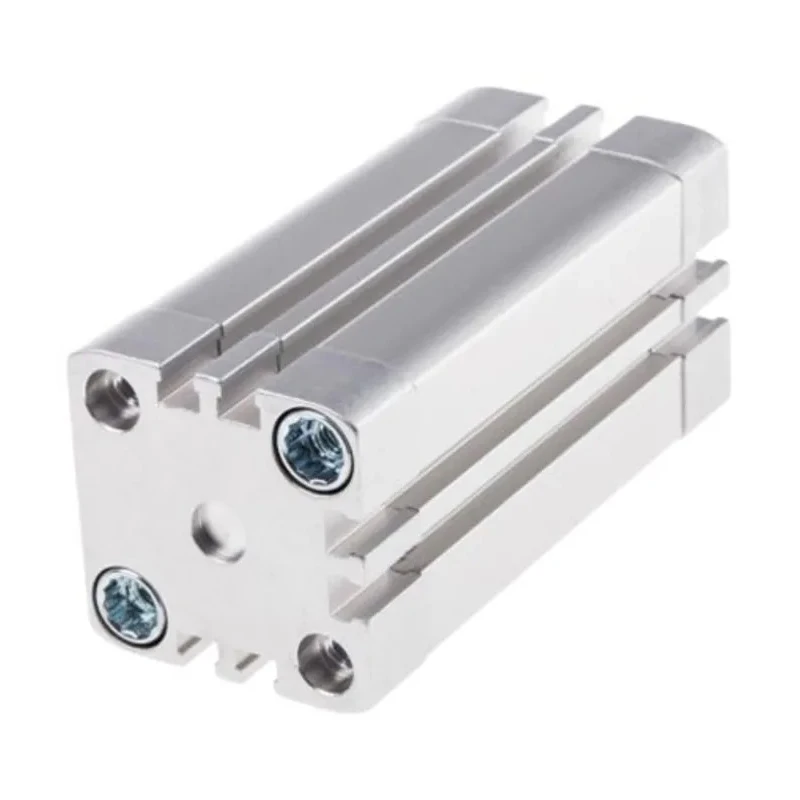

Festo Pneumatic Cylinder Double Acting Through Hole Mount Aluminium Body 40mm Bore 5mm Stroke ADN-40-5-A-P-A

Festo ADN-40-5-A-P-A Pneumatic Cylinder is a compact, double acting pneumatic actuator featuring a 40mm bore diameter and 5mm stroke length. Manufactured with an aluminium body, it offers excellent durability combined with lightweight properties, ideal for a wide range of industrial automation and fluid power applications.

Designed to comply with ISO 21287 standards and RoHS directives, this pneumatic cylinder ensures reliable performance and environmental safety. Its double acting operation uses compressed air to extend and retract the piston, providing controlled linear motion suited to various manufacturing, HVAC, water treatment, and laboratory automation uses.

The cylinder is equipped with air cushioning and cushioning rings, which reduce noise and vibration, extend the service life of the component, and improve operational productivity. The through hole mount type allows flexible installation, even in confined spaces, with compact dimensions (56.1mm length, 54.5mm height and width) making it well suited for tight machine assemblies.

The pneumatic actuator supports magnetic piston rods that enable contactless position feedback via proximity sensors. This feature is critical for precise motion control in advanced industrial machinery. It is built to sustain a maximum operating pressure of 10 bar and functions reliably within an operating temperature range of -20°C to 80°C.

Additional design elements include a single rod type and male piston rod thread size of 1/8 inch G, which offer secure mechanical connection and ease of integration with other components. Being a Better World product, it is repairable by the end user, supporting sustainable maintenance practices.

Complies with ISO 21287 and RoHS standards. Aluminium body delivers lightweight durability. Double acting with air cushioning minimizes noise and vibration. Through hole mounting suitable for compact installation. Maximum operating pressure 10 bar.

Operates from -20°C to 80°C. Single rod with male 1/8 in G piston rod thread. Magnetic piston rod for contactless position detection. Compact dimensions of 56.1mm length and 54.5mm width/height. Repairable by the end user to enhance sustainability.

This pneumatic cylinder is widely used across industrial plants, manufacturing lines, laboratory automation, HVAC systems, and water treatment facilities. Festo’s ADN series is recognized for compact size, flexibility, and reliable operation under demanding industrial conditions.
