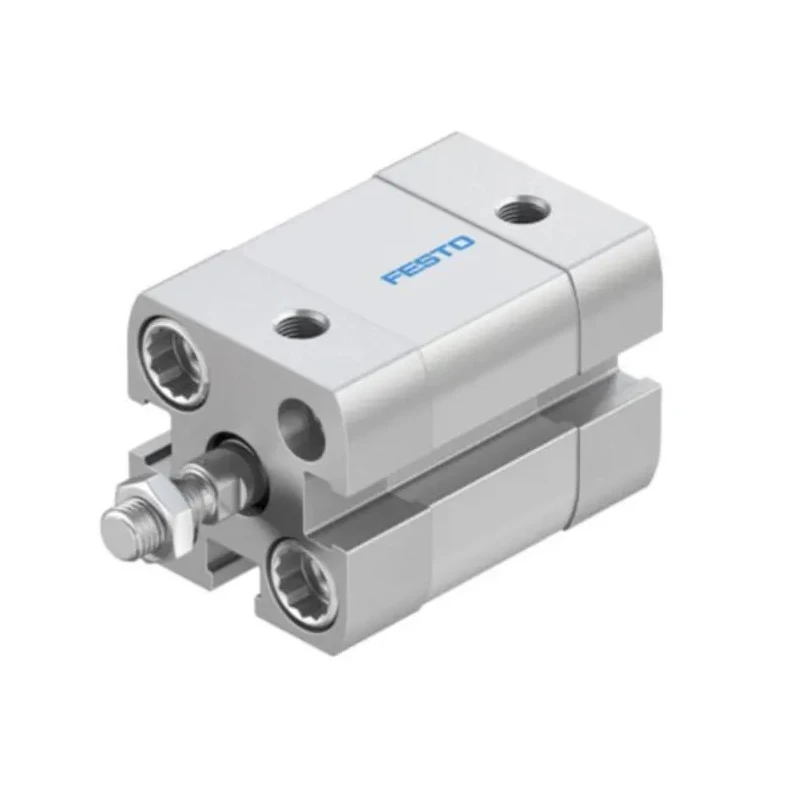

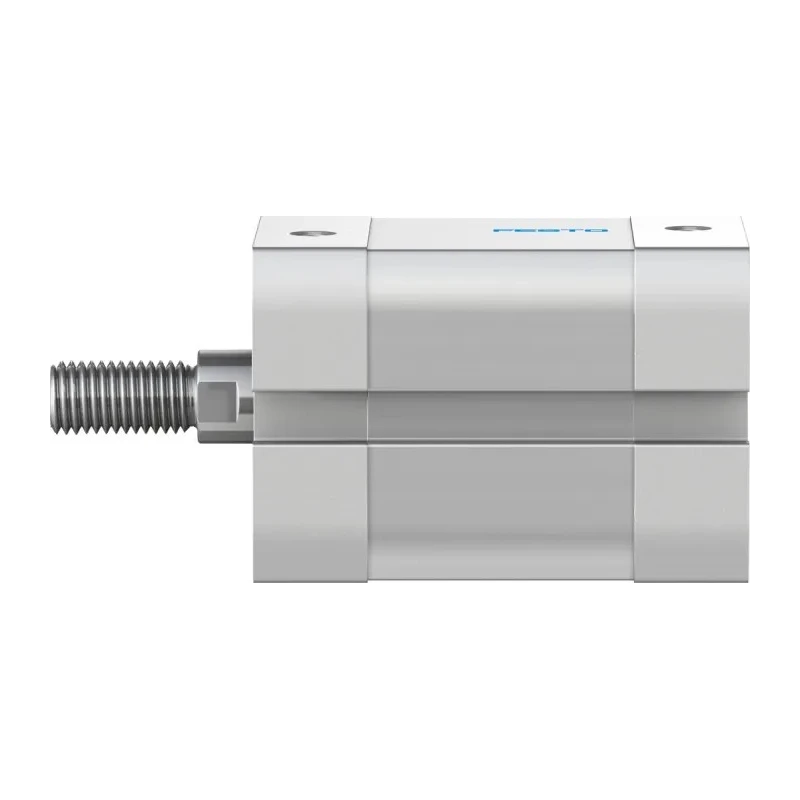

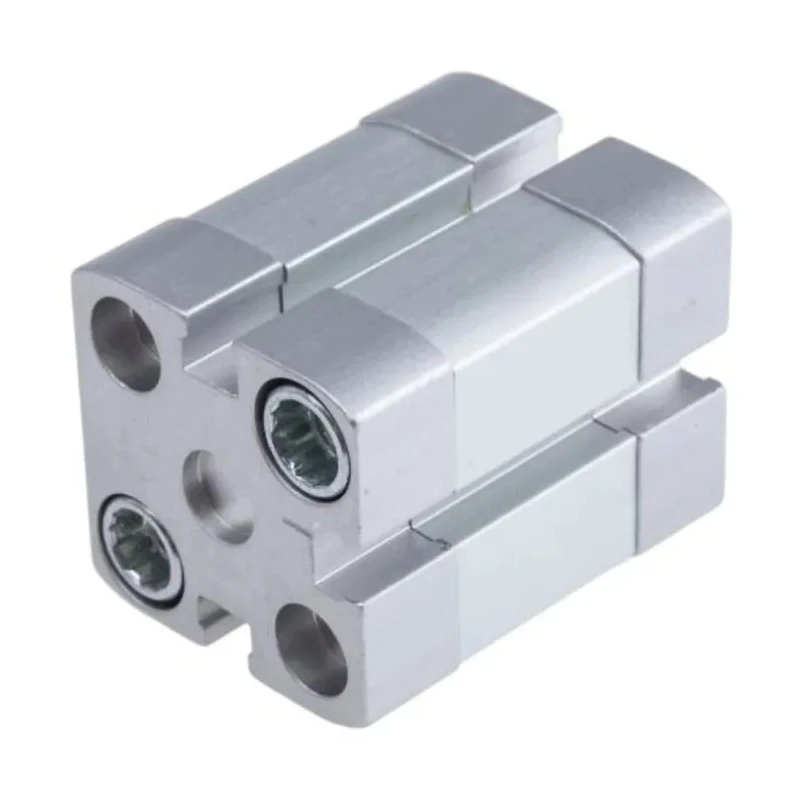

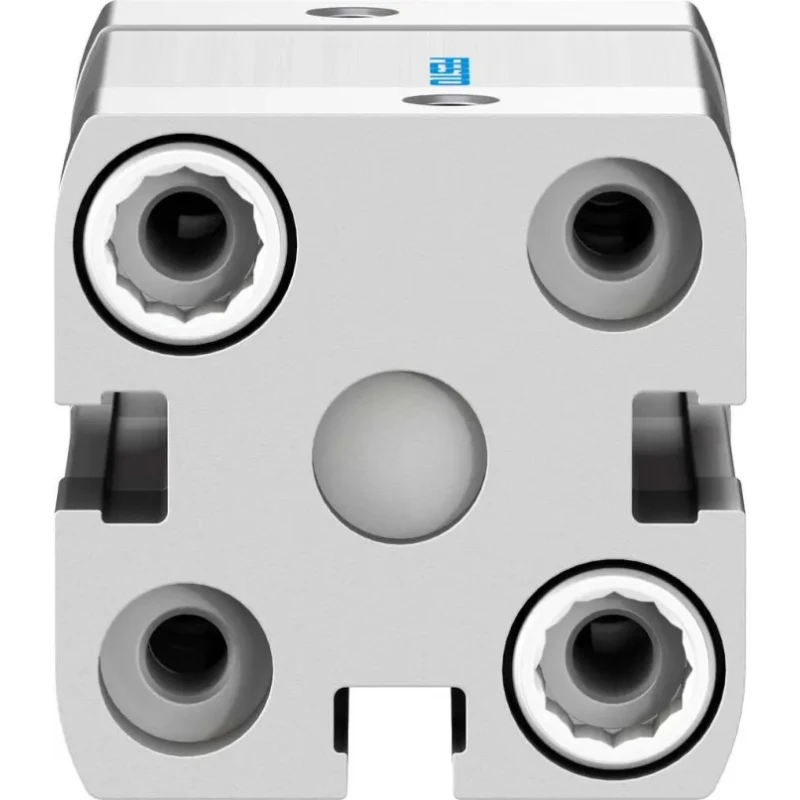

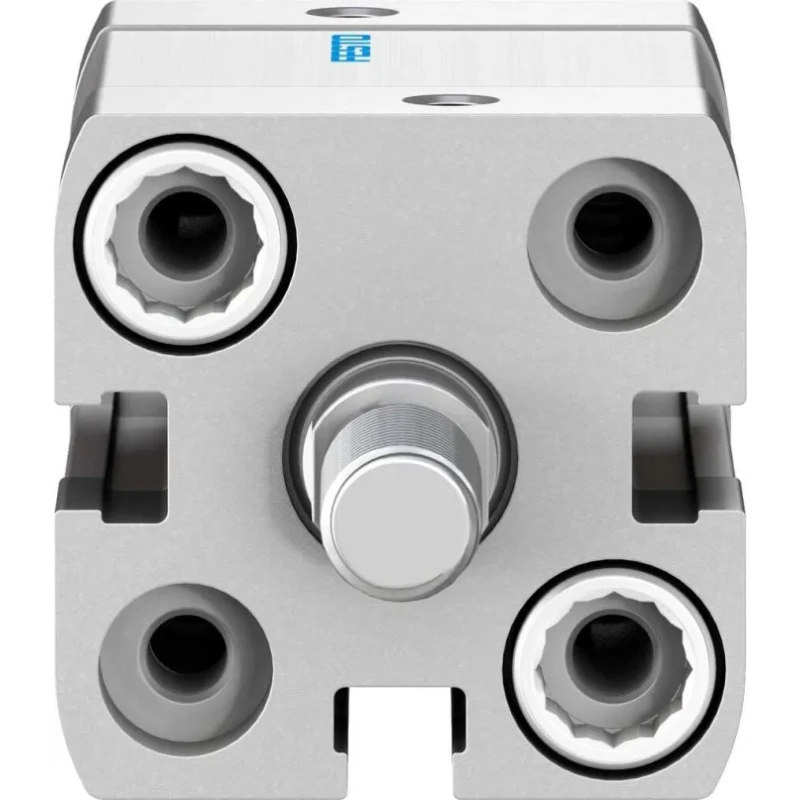

Festo Pneumatic Cylinder Double Acting ADN Series 20mm Bore 15mm Stroke Through Hole Mount ADN-20-15-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 35.5mm |
| Length | 57.5mm |
| Model | ADN-20-15-A-P-A |
| Width | 35.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 15mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Elastic |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
Key Features
- Double acting design enables forward and backward linear piston movement.
- Bore diameter of 20mm with a 15mm stroke length for compact actuation.
- Constructed with corrosion-resistant aluminium body and polyurethane seals for durability.
- Through hole mount type with elastic cushioning for smooth operation.
- Operates efficiently under pressure range up to 10 bar with max temperature of 80°C.
- Suitable for harsh industrial environments with operating temperatures from -20°C to 80°C.
- M5 piston rod thread size with male piston rod gender.
- Complies with ISO 21287 and RoHS standards.
Product Description
Festo ADN-20-15-A-P-A is a high-quality pneumatic cylinder designed to convert pressurized gas into precise mechanical motion. It is part of the ADN series and features a 20mm bore diameter coupled with a 15mm stroke length, offering efficient actuation in compact industrial applications.
This cylinder employs a double acting mechanism allowing for both forward and backward movement of the piston, ensuring versatile use in automated machinery and industrial processes. The body is manufactured from corrosion-resistant aluminium, enhancing durability in demanding environments including steamy or humid conditions.
Equipped with polyurethane seals, it guarantees low wear and tear and leak-free performance over extended operating periods. The mounting is through hole type, and the cushioning is elastic for smooth piston deceleration, reducing mechanical shocks.
The device is designed to operate within a maximum pressure of 10 bar and a temperature range from -20°C to 80°C, making it suitable for diverse operational conditions. It includes an M5 piston rod thread size with a single, male piston rod type for secure attachment.
Common industrial applications include vehicle braking systems, suspension components, manufacturing equipment, and main engine controls where reliable linear motion is critical. Double acting design enables forward and backward piston movement.
20mm bore with 15mm stroke length for compact power. Corrosion-resistant aluminium body for durability. Polyurethane seals provide wear resistance and leak-free service. Through hole mounting with elastic cushioning reduces impact.
Wide operating temperature range of -20°C to 80°C. Maximum operating pressure up to 10 bar. Complies with ISO 21287 and RoHS certification standards. Explore more Pneumatic Cylinders and actuators for industrial automation at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This pneumatic cylinder features a bore diameter of 20mm and a stroke length of 15mm, allowing for efficient actuation in compact applications.
The maximum operating pressure for this model is 10 bar, making it suitable for various industrial applications.
It can operate within a temperature range of -20°C to 80°C, accommodating diverse environmental conditions.
The body is made from corrosion-resistant aluminium, and it features polyurethane seals for enhanced durability and leak-free performance.
This pneumatic cylinder employs elastic cushioning, which helps to reduce mechanical shocks during operation.
The ADN-20-15-A-P-A uses a through hole mount type for installation, facilitating secure attachment in various setups.
The piston rod has an M5 thread size and is of male gender, allowing for secure connections to other components.
It complies with ISO 21287 and RoHS certification standards, ensuring adherence to industry regulations.
The dimensions of this model are 35.5mm in height, 35.5mm in width, and 57.5mm in length, making it compact for various applications.
This model features a double acting design, allowing for both forward and backward linear movement of the piston.
Common applications include vehicle braking systems, suspension components, and manufacturing equipment where reliable linear motion is required.
The elastic cushioning feature helps to ensure smooth piston deceleration, which reduces the impact and wear on the cylinder during operation.
