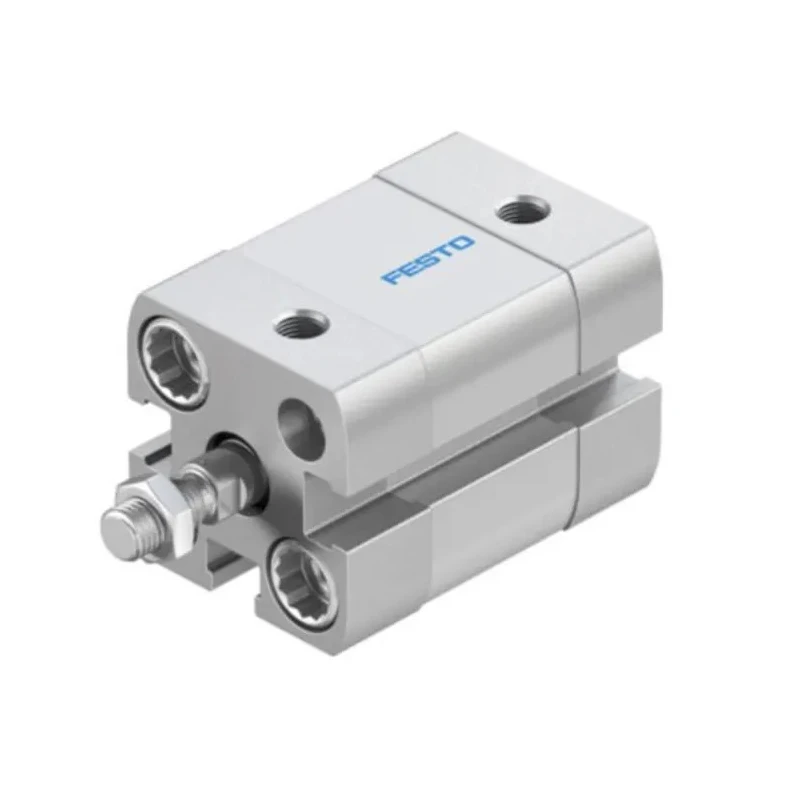

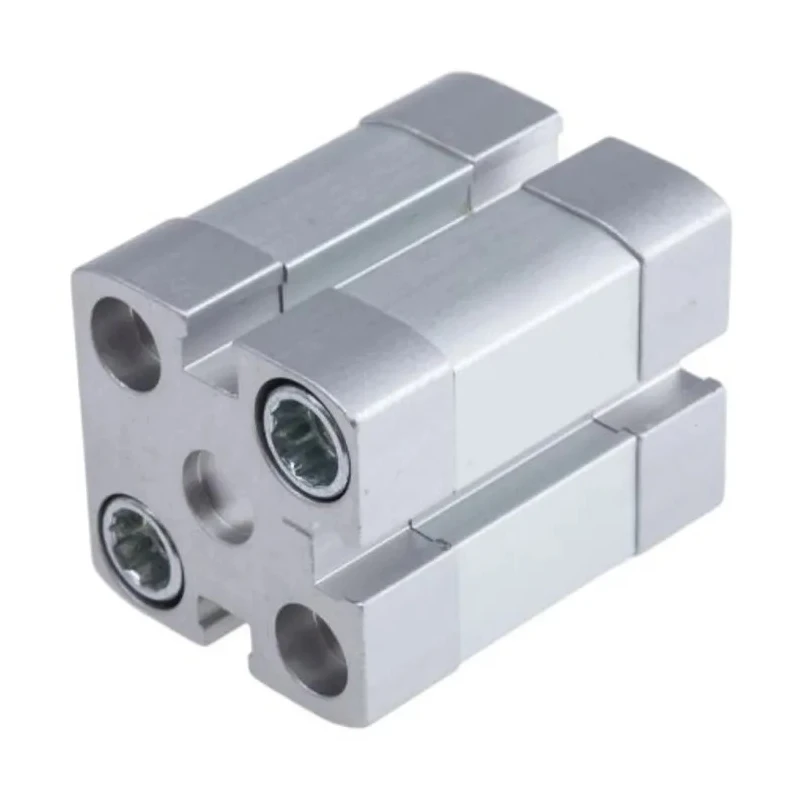

Festo Pneumatic Cylinder Double Acting 20mm Bore, 5mm Stroke, Aluminium Body ADN-20-5-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 35.5mm |
| Length | 47.5mm |
| Model | ADN-20-5-A-P-A |
| Width | 35.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 5mm |
| Bore Diameter | 20mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
Key Features
- Constructed with a lightweight aluminium body for durability.
- Operates with air cushioning and cushioning rings for smooth motion.
- Suitable for operating pressures up to 10 bar for industrial applications.
- Through hole mount type enables versatile installation options.
- Single piston rod with male thread size M5 for secure attachments.
- Complies with ISO 21287 standards ensuring quality and reliability.
- Can operate in temperature ranges from -20°C to 80°C for various environments.
- Compact design with dimensions 47.5mm length and 35.5mm height and width.
Product Description
Festo ADN-20-5-A-P-A pneumatic cylinder is a compact, double acting actuator designed for industrial and manufacturing fluid power applications.
This pneumatic cylinder features a 20mm bore diameter and a 5mm stroke length, providing precise and reliable linear motion. The aluminium body construction ensures reduced weight while maintaining structural integrity. The cylinder is through hole mounted, enabling flexible installation in constrained or complex machinery setups.
Equipped with air cushioning and cushioning rings, the model reduces noise and vibration, enhancing operational life and efficiency. The piston rod is single and has an M5 thread with male gender, fitting securely with various attachments. It meets the ISO 21287 standard and complies with RoHS requirements, reflecting high manufacturing and environmental standards.
The cylinder operates reliably within temperature ranges of -20°C to 80°C and withstands maximum operating pressure up to 10 bar, making it suitable for diverse industrial environments including automation, packaging, and assembly lines. Magnetic piston rods allow for proximity sensor-based position detection, enabling integration into automated control systems.
Lightweight aluminium body construction ensures durability and easy handling. Double acting operation provides controlled advance and retraction of the piston. Flexible mounting options with through hole design suit various machine configurations.
Air cushioning reduces noise and mechanical wear during operation. Compliant with ISO 21287 and RoHS standards. Designed for use in industrial automation, manufacturing, and fluid power applications. Compact dimensions allow installation in confined spaces.
The Festo ADN series is known for its compact size, up to 50% smaller than standard cylinders, optimizing productivity in limited-space environments. This model helps engineers and technicians achieve efficient pneumatic motion control with long service life and minimal maintenance.
Browse the Industrial Tools & Equipment category on EnvMart for more Pneumatic Cylinders and automation components to meet your application needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic cylinder is 10 bar.
This model has dimensions of 47.5mm in length, 35.5mm in height, and 35.5mm in width.
The stroke length of this pneumatic cylinder is 5mm.
It features a through hole mount type, allowing for versatile installation options.
The bore diameter is 20mm.
The body of this model is constructed from lightweight aluminium.
It can operate in temperature ranges from -20°C to 80°C.
It complies with ISO 21287 standards and RoHS requirements.
This model features a double acting action type.
It has a single piston rod with a male thread size of M5.
It is equipped with air cushioning and cushioning rings to enhance motion smoothness.
This model is suitable for industrial automation, manufacturing, and fluid power applications.
