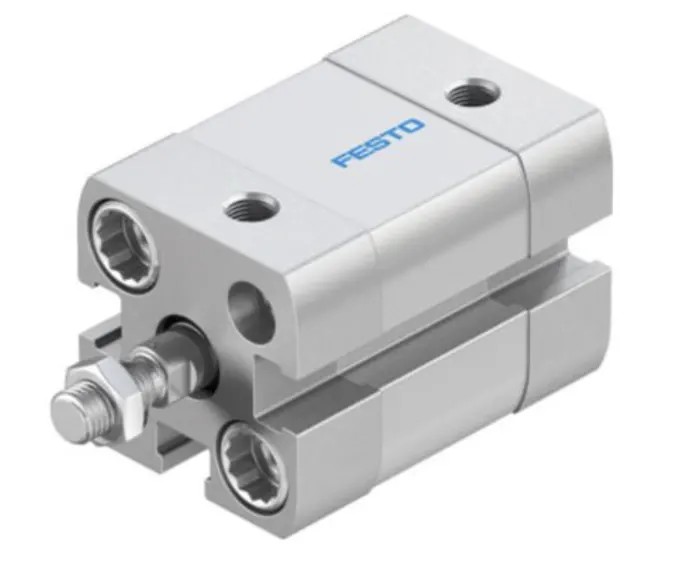

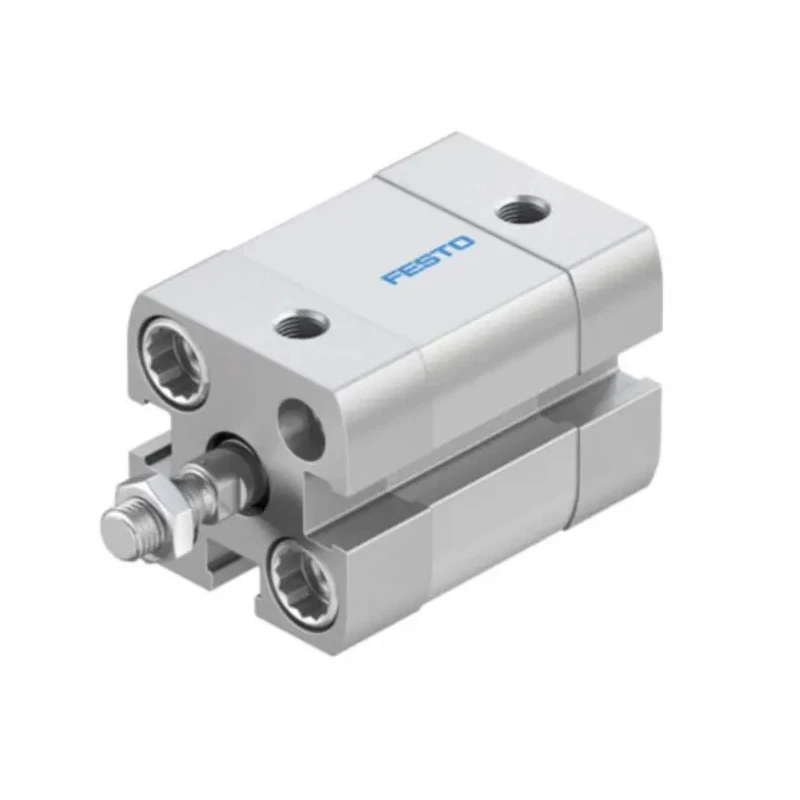

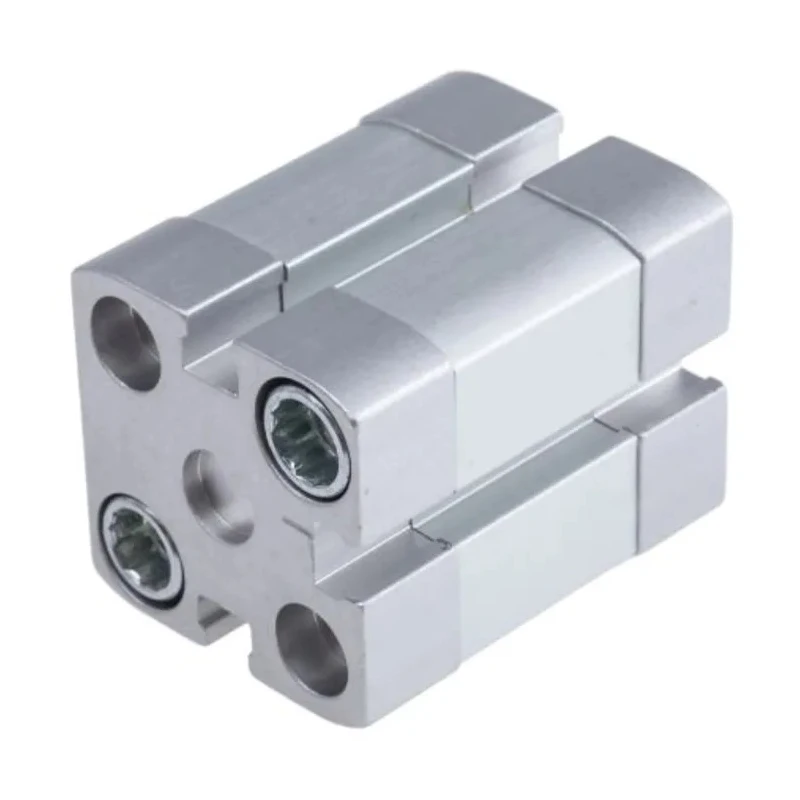

Festo Compact Aluminium Double Acting Pneumatic Cylinder 16mm Bore 5mm Stroke Through Hole Mount ADN-16-5-A-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 29mm |
| Length | 44.7mm |
| Model | ADN-16-5-A-P-A |
| Width | 29mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 5mm |
| Bore Diameter | 16mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Air Cushioning, Cushioning Rings |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
Key Features
- Complies with ISO 21287 and RoHS standards.
- Constructed from lightweight aluminium for durability.
- Double acting piston rod extends and retracts using compressed air.
- Operating pressure up to 10 bar suitable for various pneumatic systems.
- Flexible polymer end cushioning minimizes noise and vibration during operation.
- Features a single male piston rod with M5 thread size.
- Designed for continuous low-friction operation enhancing productivity.
- Operational temperature range of -20°C to 80°C.
Product Description
Festo ADN-16-5-A-P-A pneumatic cylinder is a compact, double acting actuator designed for precise linear motion with a 16mm bore diameter and a 5mm stroke length. Constructed from aluminium, it offers lightweight durability and is engineered to comply with ISO 21287 and RoHS certification standards.
This pneumatic piston rod cylinder operates by applying compressed air to both sides of the piston, enabling extension and retraction of the single male piston rod with an M5 thread. The through hole mounting type allows for easy integration in varied industrial setups.
The cylinder includes air cushioning with cushioning rings that reduce noise and vibration, prolong service life, and improve operational efficiency. Ideal for use in industrial automation, manufacturing, and fluid power tools, the ADN series delivers reliable performance even under continuous operation thanks to its low friction design.
Designed to function within a temperature range of -20°C to 80°C and withstand maximum operating pressures up to 10 bar, this actuator is suitable for a broad range of industrial, laboratory, and manufacturing applications needing compact and precise pneumatic actuation.
Complies with ISO 21287 and RoHS standards. Flexible polymer end cushioning for noise and vibration reduction. Low friction design enables extended continuous use. Through hole mount offers versatile installation options.
Single acting double acting piston rod with M5 male thread. Constructed from durable aluminium material. Compact size for use in confined spaces. Operating temp. range: -20°C to 80°C for varied environments. Max operating pressure of 10 bar suitable for heavy-duty pneumatic systems.
Suitable for industrial, manufacturing, and fluid power applications.
Set contains 1 Pc Pneumatic Cylinder as specified. Browse the Industrial Tools & Equipment Pneumatic Piston Rod Cylinders category at EnvMart for compatible mounts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this pneumatic cylinder is 10 bar.
This model has a stroke length of 5mm.
The bore diameter of this pneumatic actuator is 16mm.
It features a through hole mounting type, allowing for versatile installation options.
The operational temperature range is from -20°C to 80°C.
It includes air cushioning with cushioning rings that help reduce noise and vibration during operation.
It complies with ISO 21287 and RoHS standards.
The body is constructed from lightweight aluminium.
This model operates as a double acting cylinder, allowing for extension and retraction using compressed air.
The piston rod has a male thread size of M5.
It is suitable for various industrial, manufacturing, and fluid power applications requiring precise pneumatic actuation.
The dimensions are 44.7mm in length, 29mm in height, and 29mm in width.
