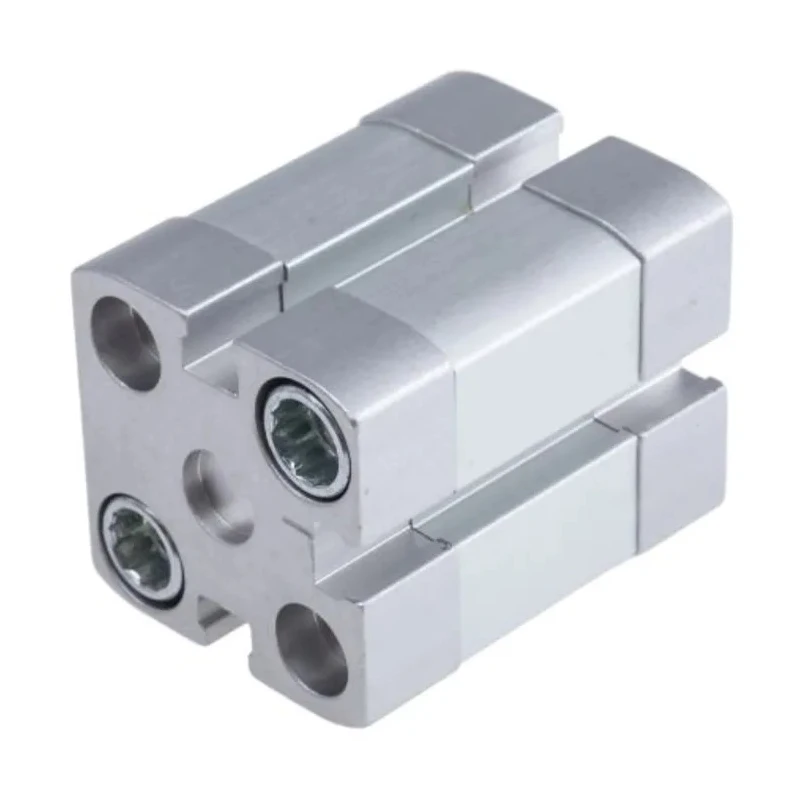

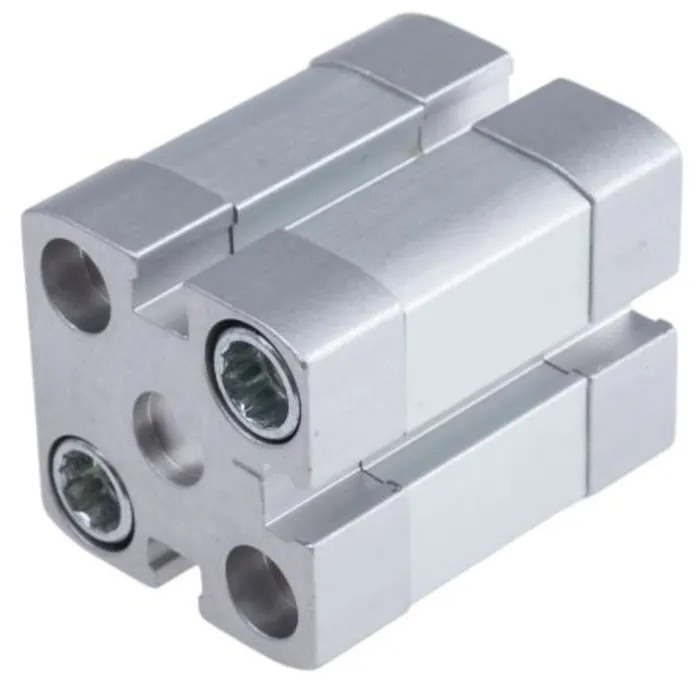

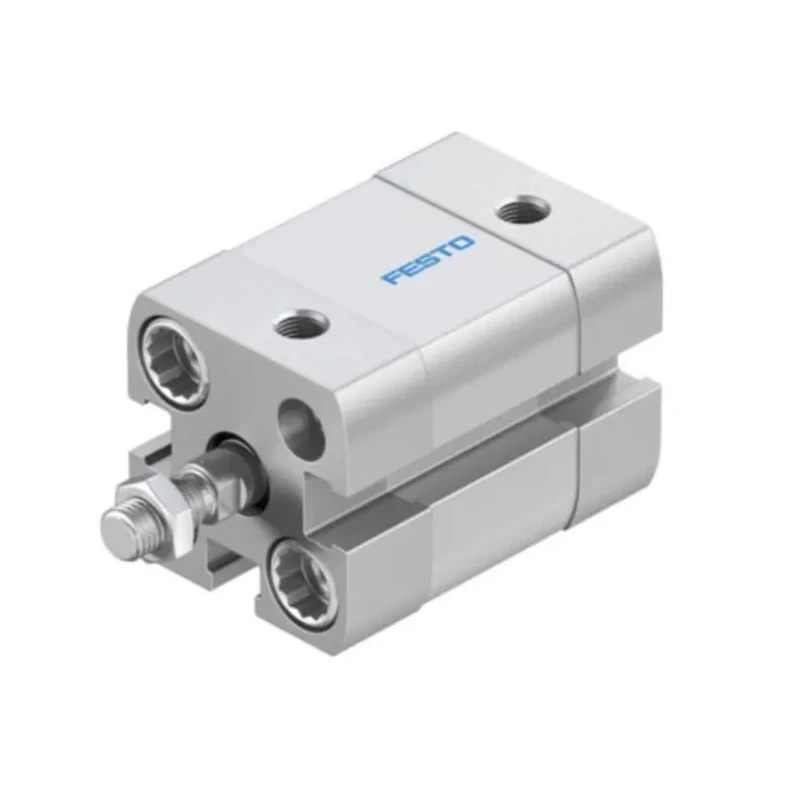

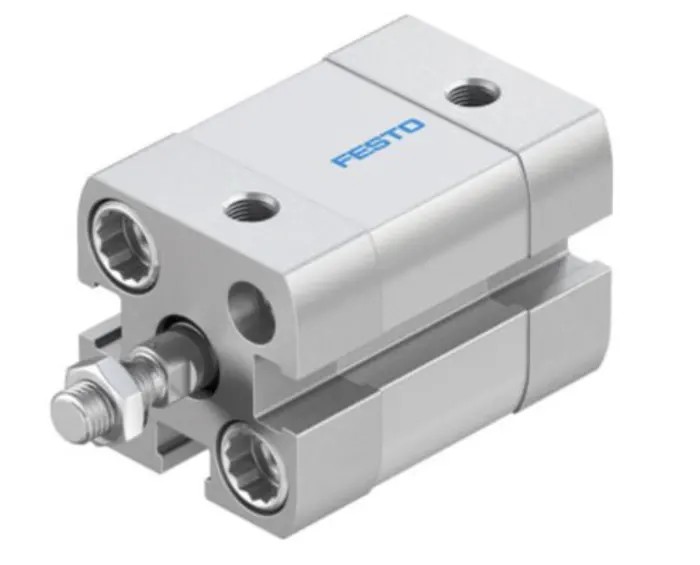

Festo Pneumatic Cylinder ADN Series Double Acting 12mm Bore 25mm Stroke Aluminium Body ADN-12-25-A-P-A

Festo ADN-12-25-A-P-A Pneumatic Cylinder is a compact double acting actuator with a bore diameter of 12mm and stroke length of 25mm. This aluminium-bodied pneumatic cylinder belongs to the ADN Series, designed to deliver efficient linear motion through compressed air supply applied alternately to both sides of the piston.

The cylinder features air cushioning with cushioning rings to minimize noise and vibration, prolonging equipment life and improving production productivity. It is engineered to meet ISO 21287 standards and RoHS compliance, ensuring quality and environmental standards are adhered to.

Constructed for flexibility, the pneumatic cylinder's through hole mount system allows installation in varied orientations, horizontally or vertically, adaptable to multiple industrial setups. The piston rod is male threaded with an M5 size, and the rod type is single, supporting typical actuator applications.

The maximum operating pressure capability of 10 bar and a temperature operating range from -20°C to 80°C make the cylinder ideal for industrial automation, manufacturing, handling systems, and process control environments. The included slots accommodate flush mounting of proximity sensors compatible with magnetic piston rods, enabling contactless position detection for precision control.

Compact ADN series provides up to 50% smaller size than conventional cylinders. Double acting operation with dual air ports for piston extension and retraction. Aluminium construction ensures lightweight along with durability.

Flexible mounting through through-hole design enables varied installation possibilities. Air cushioning reduces operational noise, vibration and wear. Slots designed for proximity sensor mounting facilitate position sensing.

Compliant with ISO 21287 and RoHS for quality and environmental requirements. Operating temperature from -20°C to +80°C suits diverse industrial applications. Maximum operating pressure up to 10 bar for reliable pneumatic actuation.

Piston rod with male M5 thread supports standard attachment fittings.

These cylinders are commonly applied in industrial automation, mechanical handling, packaging machinery, material transport, pneumatic tooling, and other manufacturing operations requiring compact, precise pneumatic actuation. Their design ensures long service life with reduced maintenance effort, making them suitable for continuous operation in demanding environments.

Explore the wide range of Festo Pneumatic Cylinders in the ADN Series at EnvMart to suit your pneumatic actuation needs.
