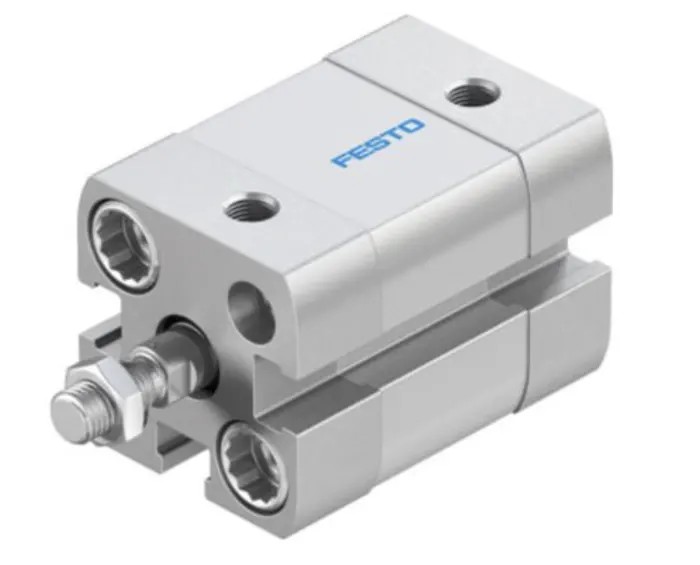

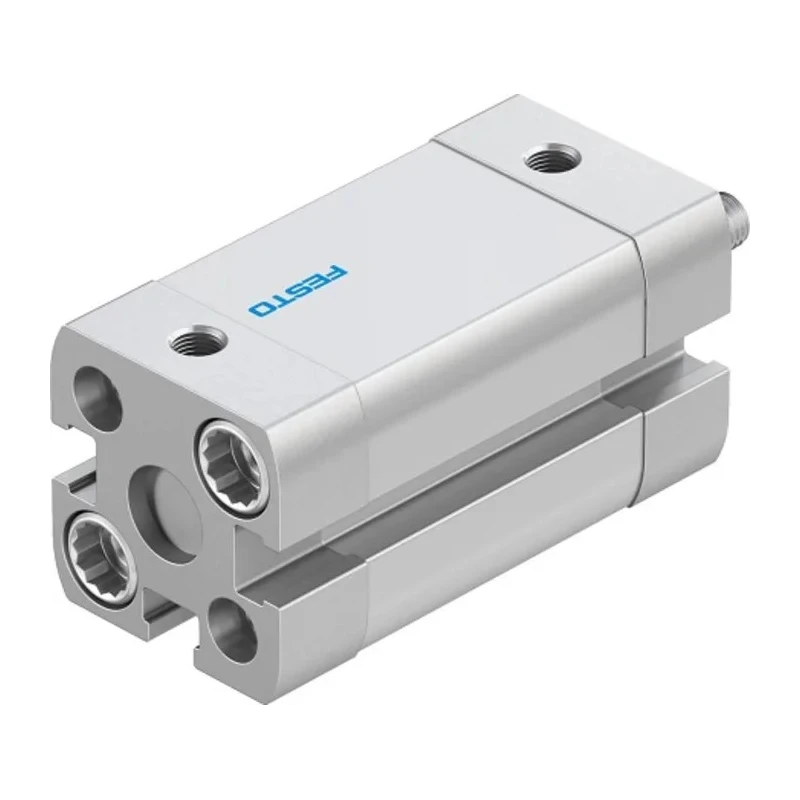

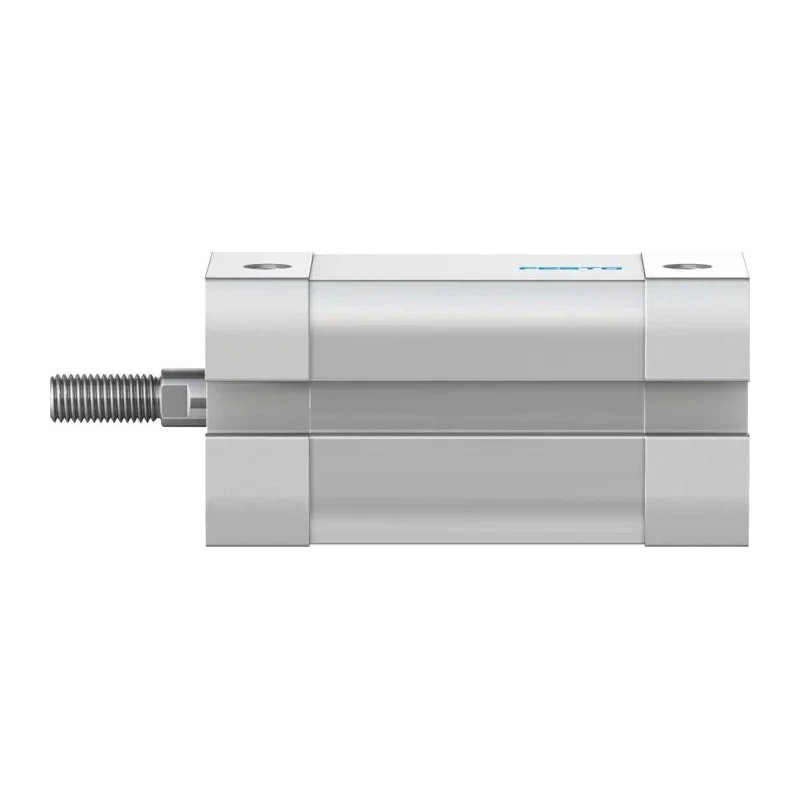

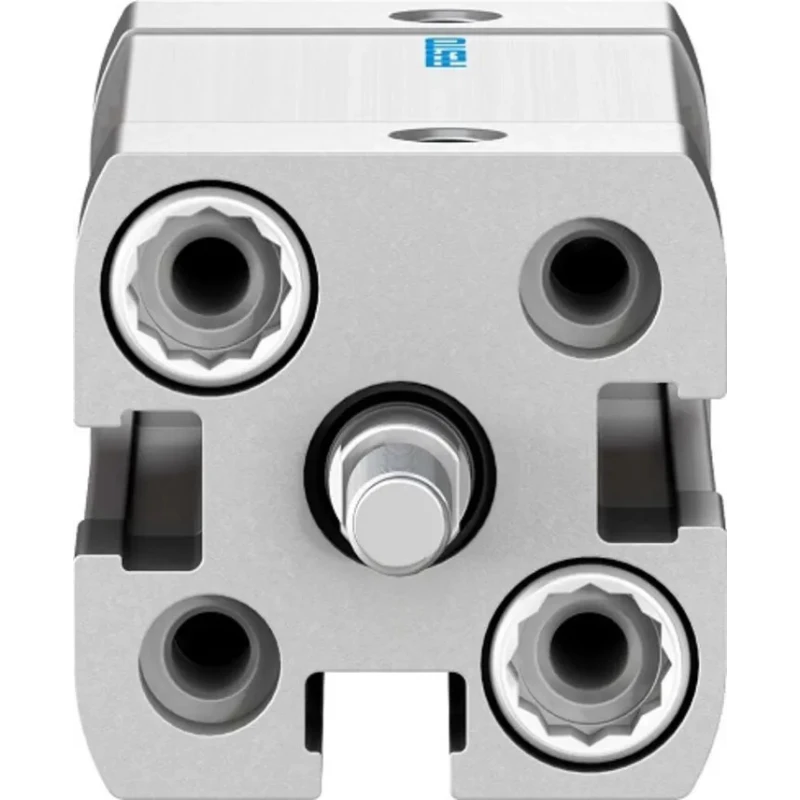

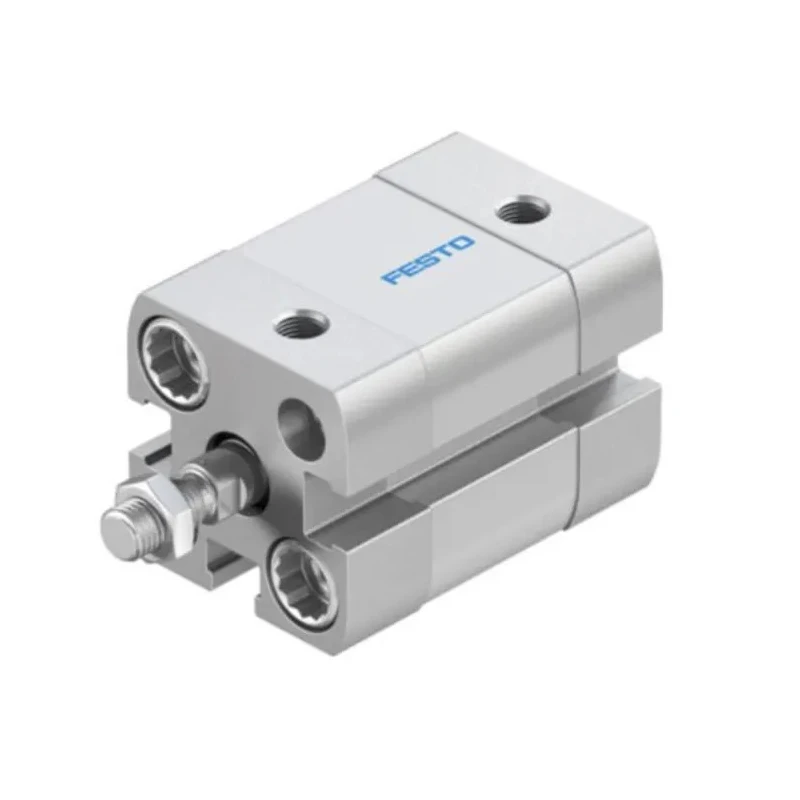

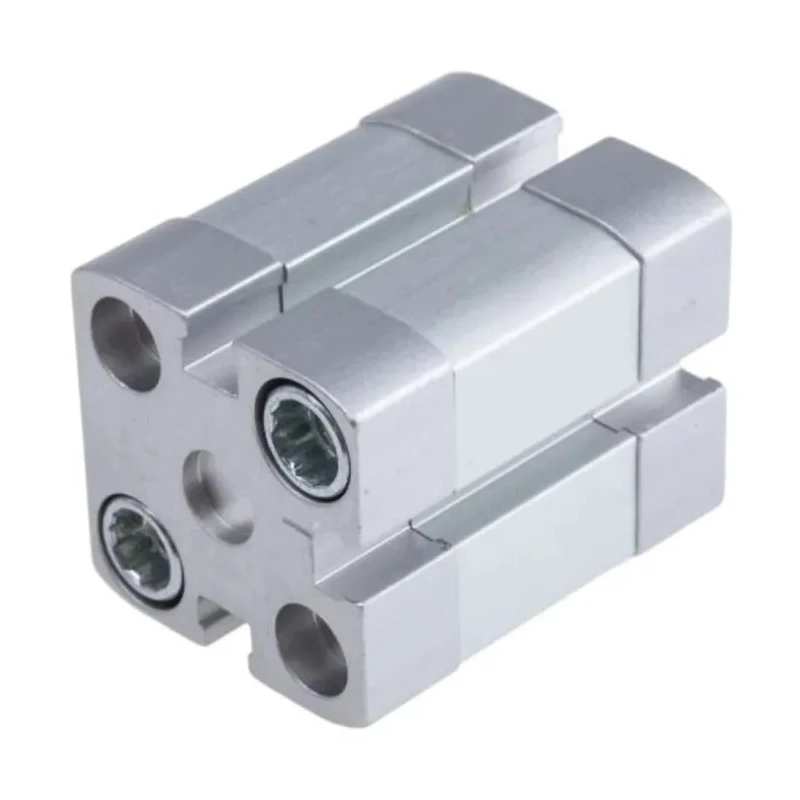

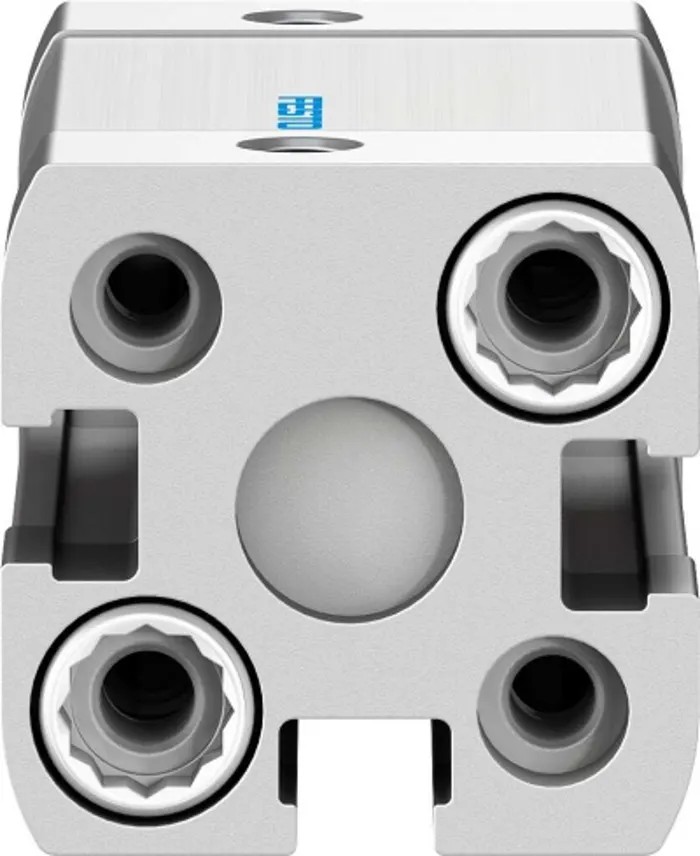

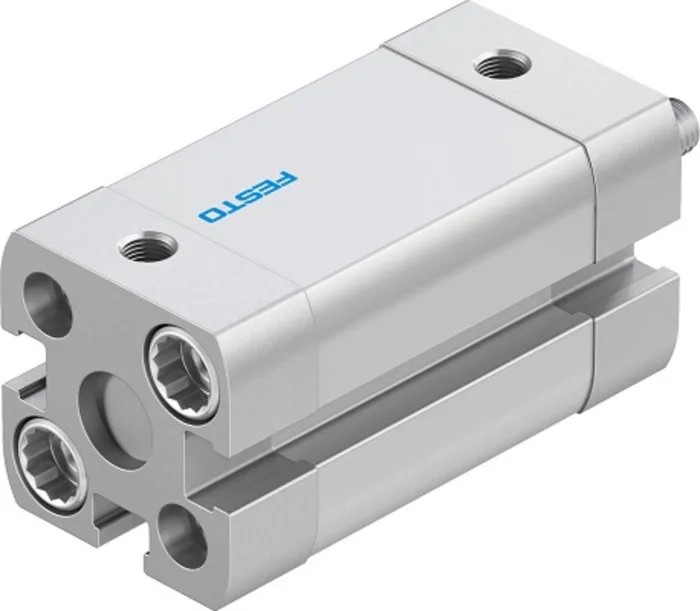

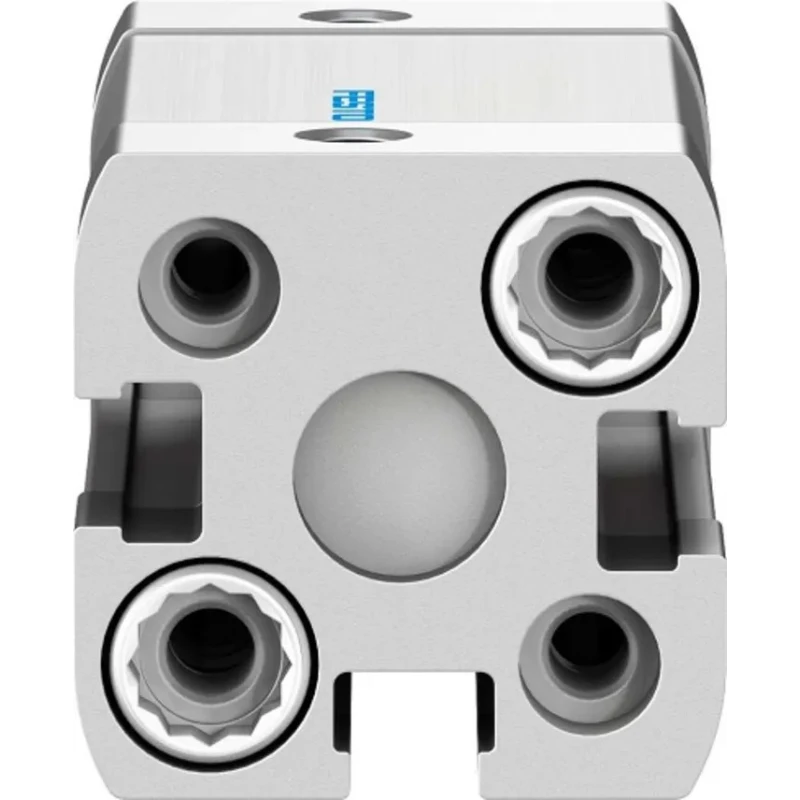

Festo Pneumatic Cylinder ADN-12-20-A-P-A Double Acting 12mm Bore 20mm Stroke Aluminium Body Germany
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Maximum Operating Pressure | 10 bar |
| Height | 27.5mm |
| Length | 59.2mm |
| Model | ADN-12-20-A-P-A |
| Gross Weight | 77g |
| Width | 27.5mm |
| Mount Type | Through Hole |
| Series | ADN |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -20°C |
| Stroke Length | 20mm |
| Bore Diameter | 12mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | ISO 21287, RoHS |
| Cushioning Type | Elastic |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | M5 |
Key Features
- Compact size with a length of 59.2mm and a width and height of 27.5mm each.
- Constructed with a corrosion-resistant aluminium alloy body for durability.
- Operates within a pressure range up to 10 bar for versatile applications.
- Includes low-friction TPE-U(PUR) seals and elastic cushioning for extended service life.
- Flexible through-hole mounting ensures easy integration into various systems.
- Suitable for temperature ranges from -20°C to +80°C for demanding environments.
- Single male piston rod with M5 thread for standard fittings and accessories.
- Meets ISO 21287 and RoHS standards, ensuring quality and compliance.
Product Description
Festo ADN-12-20-A-P-A pneumatic cylinder is a precision-engineered double acting actuator designed to deliver efficient linear motion with a 12mm bore diameter and 20mm stroke length.
This compact cylinder measures 59.2mm in length, with a width and height both at 27.5mm, making it ideal for space-limited installations. Its aluminium body offers corrosion resistance and structural strength for reliable performance in industrial and commercial environments.
Operating at pressures up to 10 bar and temperatures from -20°C to 80°C, it suits a wide range of applications including automotive manufacturing, dental equipment, and medical imaging devices. The cylinder features low-friction TPE-U(PUR) seals maintaining airtight operation and elastic cushioning that absorbs impact, prolonging operational life.
Mounting is facilitated via through holes and the single male piston rod with an M5 thread size allows easy connection to standard pneumatic fittings. The unit includes slots on three sides for convenient sensor mounting to enable contactless detection and automation.
Compact 59.2mm (L) x 27.5mm (W) x 27.5mm (H) dimensions. Aluminium alloy body minimizes corrosion and maximizes durability. Operating pressure up to 10 bar for precise control. Temperature range from -20°C to +80°C for versatile use.
Low-friction seals and elastic cushioning for increased service life. Through hole mount type supports flexible installation. Single male piston rod with M5 thread for compatibility. ISO 21287 and RoHS compliant for quality assurance.
Applications in automotive manufacturing, medical imaging, dental, and automated factory systems.
This Festo Pneumatic Cylinder combines compact design and reliable performance for demanding industrial and laboratory pneumatic applications. Explore more pneumatic piston rod cylinders and actuators from leading manufacturers on EnvMart for your precise engineering needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of the Festo Pneumatic Cylinder ADN-12-20-A-P-A is 10 bar.
This pneumatic cylinder measures 59.2mm in length, 27.5mm in width, and 27.5mm in height.
The stroke length of this pneumatic cylinder is 20mm.
The body of the Festo Pneumatic Cylinder is made from a corrosion-resistant aluminium alloy.
This model operates within a temperature range of -20°C to +80°C.
The cylinder features a through hole mount type, allowing for flexible installation.
It includes elastic cushioning that absorbs impact, prolonging operational life.
The bore diameter of the ADN-12-20-A-P-A is 12mm.
This pneumatic cylinder meets ISO 21287 and RoHS standards, ensuring quality and compliance.
It features a single male piston rod with an M5 thread size for compatibility with standard fittings.
This model is suitable for applications in automotive manufacturing, dental equipment, and medical imaging devices.
The gross weight of the Festo Pneumatic Cylinder ADN-12-20-A-P-A is 77g.
