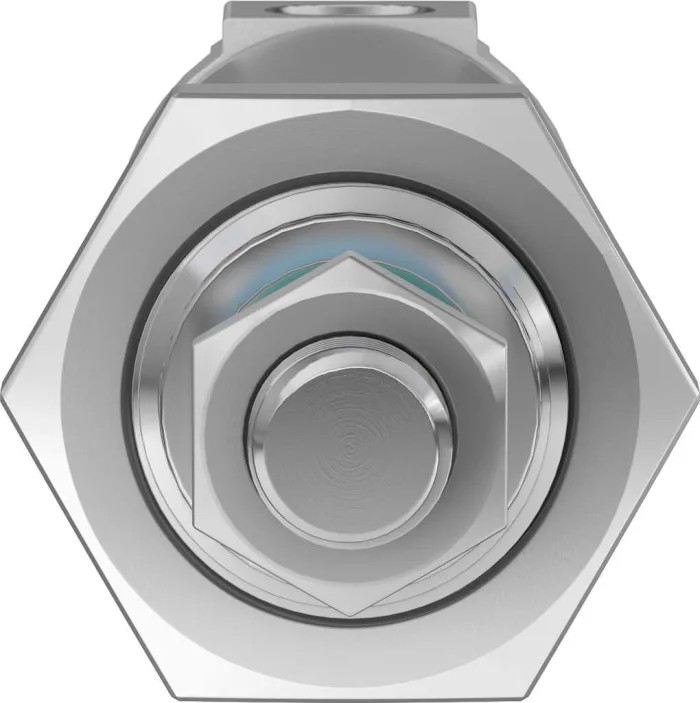

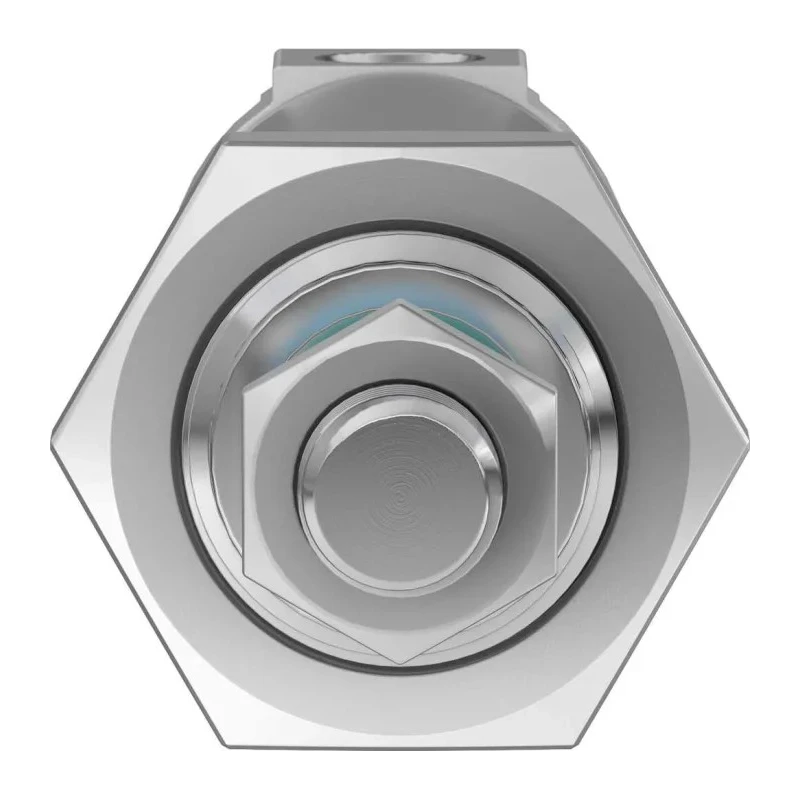

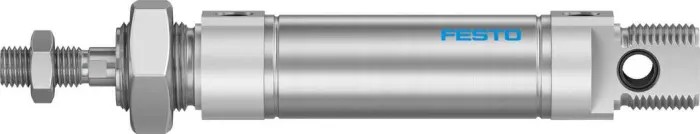

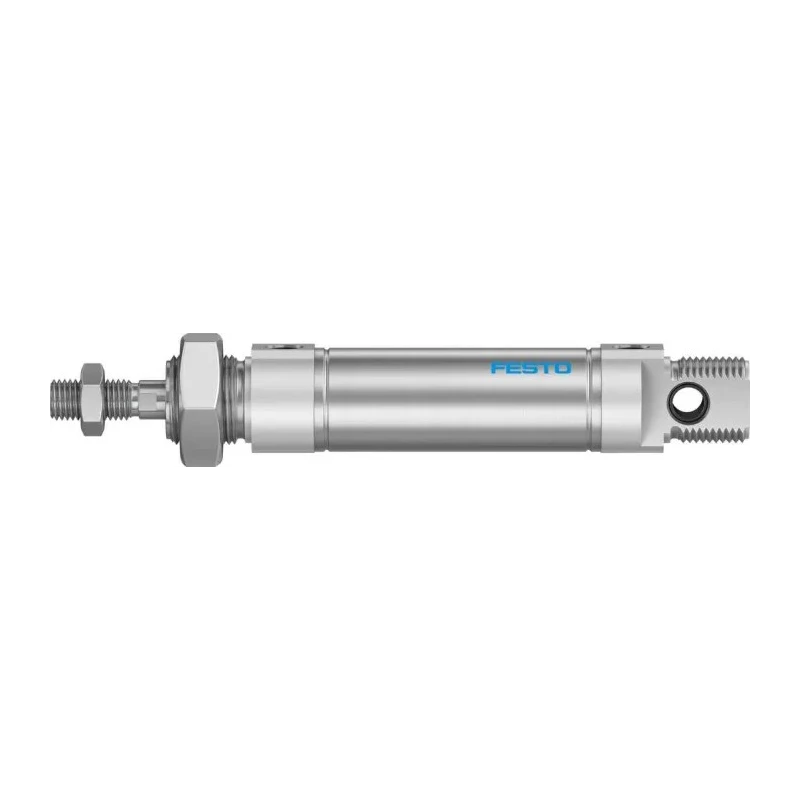

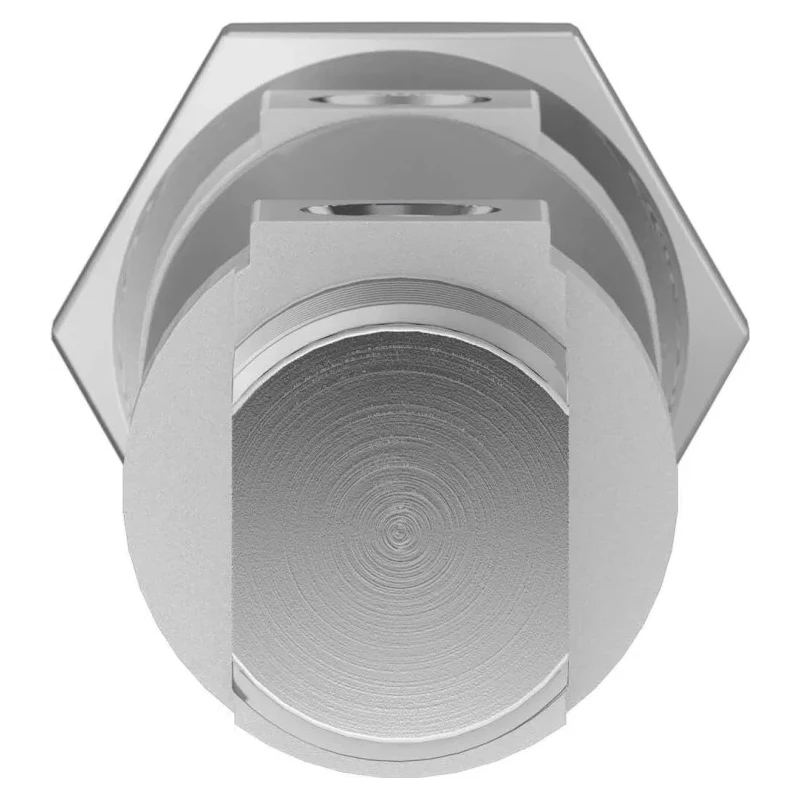

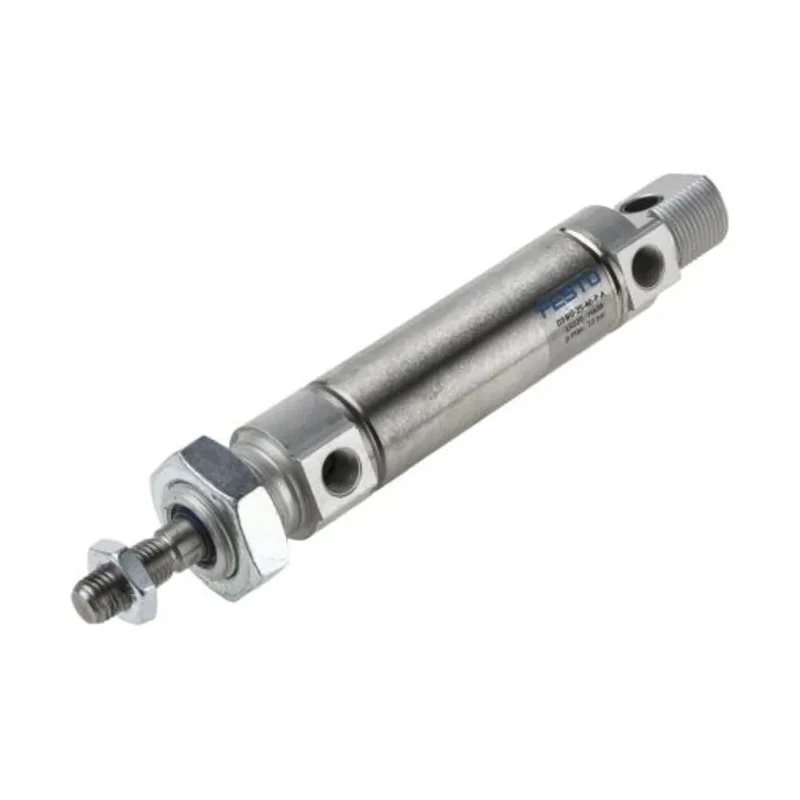

Festo Pneumatic Cylinder Double Acting 25 mm Piston Diameter, 35 mm Stroke, Aluminium Body DSNU-25-35-P-A
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Festo |
| Body Material | Aluminium |
| Length | 176.5mm |
| Model | DSNU-25-35-P-A |
| Mount Type | Through Hole |
| Series | DSNU |
| Maximum Operating Temperature | 80°C |
| Stroke Length | 35mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | CETOP RP 52 P, ISO 6432, RoHS |
| Cushioning Type | Elastomer |
| Piston Rod Gender | Male |
| Piston Rod Thread Size | 1/8 in G |
| • The design structure of the cylinder is | Piston, piston rod and cylinder barrel |
Key Features
- The cylinder features a piston rod thread size of 1/8 in G and single rod type.
- Designed for flexible mounting positions and through hole mount type.
- Maximum operating temperature rating up to 80°C ensuring durability in industrial environments.
- Conforms to ISO 6432, CETOP RP 52 P standards, and RoHS compliance for quality assurance.
- Constructed with aluminium body and stainless steel piston rod for corrosion resistance and extended service life.
- Double-acting operation allows for precise linear motion control in automation applications.
- Includes flexible cushioning rings at both ends for smooth operation and shock absorption.
- Suitable for pneumatic actuator uses in industrial automation, manufacturing, and fluid power systems.
Product Description
Festo DSNU-25-35-P-A Pneumatic Cylinder is a high-quality double acting actuator offering a 25 mm piston diameter and 35 mm stroke length, featuring a robust aluminium body and elastomer cushioning. This piston rod cylinder is designed for versatility in installation with a through hole mounting method, allowing assembly in any position. It provides reliable performance in industrial automation, fluid power, manufacturing, and pneumatic systems requiring linear motion control.
The DSNU series conforms to ISO 6432 standards, ensuring standardized metric mounting dimensions for effortless interchangeability. It operates double acting with a single stainless steel piston rod threaded M10x1.25 for secure connection. Flexible cushioning rings integrated at both actuator barrel ends absorb energy effectively, making it suitable for low-speed and small load applications.
Key specifications include a maximum operating temperature of 80°C, elastomer cushioning type, CETOP RP 52 P and RoHS compliance, and a G 1/8 pneumatic connection port. The cylinder barrel and piston rod are made from high alloy steel and aluminium, providing corrosion resistance for long service life. Optional mounting accessories enhance flexibility for various industrial installation needs.
The cylinder features a piston rod thread size of 1/8 in G and single rod type. Designed for flexible mounting positions and through hole mount type. Maximum operating temperature rating up to 80°C ensuring durability in industrial environments.
Conforms to ISO 6432, CETOP RP 52 P standards, and RoHS compliance for quality assurance. Constructed with aluminium body and stainless steel piston rod for corrosion resistance and extended service life. Double-acting operation allows for precise linear motion control in automation applications.
Includes flexible cushioning rings at both ends for smooth operation and shock absorption. Suitable for pneumatic actuator uses in industrial automation, manufacturing, and fluid power systems.
This Pneumatic Cylinder is a reliable solution for pneumatic piston rod cylinder needs in industrial tools and equipment. It combines standardized design, robust materials, and flexible operation modes to support effective automation and mechanical movement applications. Explore EnvMart's comprehensive selection of pneumatic system components for expanded project solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The stroke length of this model is 35 mm.
It has a maximum operating temperature rating of 80°C.
This unit features a through hole mount type for flexible installation positions.
The length of this model is 176.5 mm.
It is constructed with an aluminium body and a stainless steel piston rod for corrosion resistance.
This model conforms to CETOP RP 52 P, ISO 6432 standards, and is RoHS compliant.
It operates as a double acting cylinder, allowing for precise linear motion control.
The piston rod thread size is 1/8 in G.
It includes elastomer cushioning rings at both ends for smooth operation and shock absorption.
This cylinder features a single rod type.
It is suitable for pneumatic actuator uses in industrial automation, manufacturing, and fluid power systems.
The piston rod gender is male.
