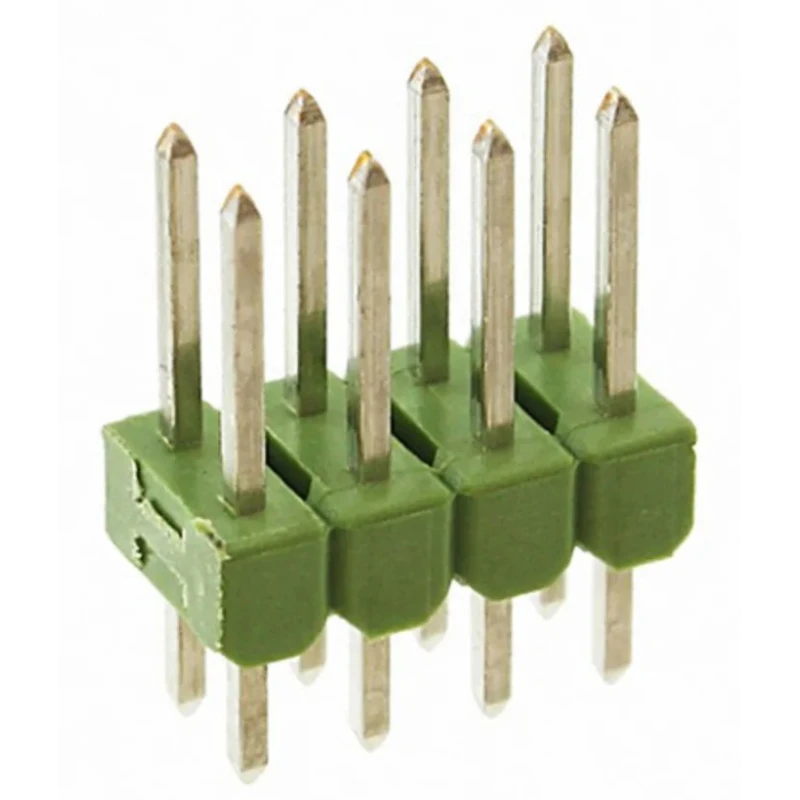

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 8 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded 826925-4

TE Connectivity 826925-4 AMPMODU MOD II Series Straight Through Hole Pin Header provides an 8-contact configuration with a 2.54 mm pitch arranged in 2 rows. The unshrouded pin header delivers reliable electrical connections in board-to-board and wire-to-board applications, making it ideal for industrial, automotive, telecommunications, and medical equipment use.

Manufactured with brass contacts that are tin-plated, this connector offers durability and corrosion resistance. The housing utilizes polybutylene terephthalate, ensuring mechanical strength and stability across a wide temperature range from -65°C to 105°C.

The pin header features a straight orientation with through-hole mounting, facilitating permanent PCB soldering with a 3.2 mm tail pin length and a mating pin length of 6.7 mm. Its design allows easy modification by breaking the header into smaller segments, optimizing installation efficiency and customization.

This component carries a voltage rating of up to 750V and a current rating of 3A, suitable for demanding industrial and automation systems. The AMPMODU MOD II interconnect system is recognized for its versatility, reliability, and cost-effectiveness across multiple applications including automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, storage equipment, and appliances.

This pin header supports a current rating of 3A for reliable electrical performance. Constructed with brass contacts plated in tin for corrosion resistance. The housing is made from durable polybutylene terephthalate suitable for industrial environments.

It features a straight orientation and through-hole mounting for secure PCB integration. Operating temperature range extends from -65°C up to 105°C, ensuring versatility in harsh conditions. Pin tail length is 3.2 mm with mating pin length of 6.7 mm for effective solder connections.

Compatible with board-to-board and wire-to-board connector systems in control and automation applications. The unshrouded double row design allows customization by breaking into the required size. Ideal for automotive controls, telecommunications, industrial equipment, and medical instrumentation.

Explore similarly precise, durable, and high-quality PCB Headers in EnvMart's advanced connectors category to find the optimal solution for your industrial, commercial, and laboratory needs.
