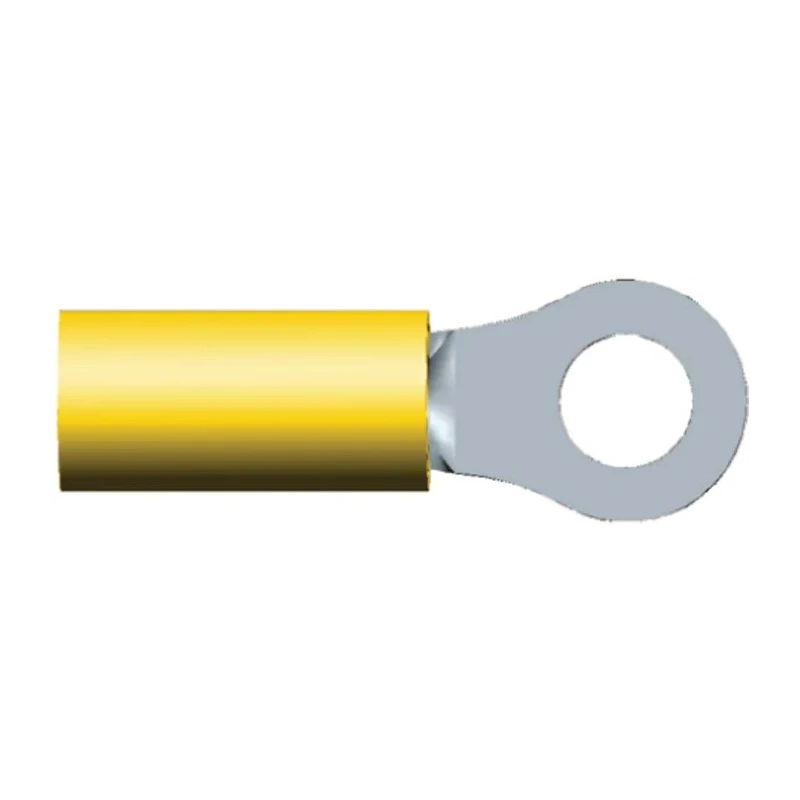

TE Connectivity PIDG Insulated Ring Terminal, M5 Stud Size, 12 AWG to 10 AWG Wire Size, Yellow, Model 2-36161-3

TE Connectivity 2-36161-3 PIDG Insulated Ring Terminal is a high-quality ring tongue wire crimp terminal engineered to provide uniform reliability in demanding circuit environments. It features a precision-formed high conductivity copper construction combined with a yellow-colored nylon insulation sleeve, facilitating easy wire size recognition and providing robust insulation.

The terminal offers a serrated wire barrel to maximize contact area and tensile strength post-crimping, as well as a copper sleeve inside the barrel to improve wire insulation support and prevent wire fraying. A funnelled entry design allows for quick insertion of wires, expediting installation in high-speed production settings.

This ring terminal accommodates M5 stud size and wire sizes ranging from 12 AWG to 10 AWG (2.6 to 6.6 mm²), with an overall length of 29.15 mm and thickness of 0.79 mm. It is suitable for industrial, laboratory, electronic, power connectivity, automotive, aerospace, manufacturing, HVAC, and electrical applications where secure and reliable wire termination is essential.

The operating temperature rating of 105°C ensures performance stability in elevated temperature conditions. Compliance with RoHS standards guarantees this product's suitability for environmentally responsible installations.

High conductivity copper body ensures superior electrical conductance. Yellow coloration aids fast wire size recognition and tooling identification. Serrated barrel enhances contact reliability and tensile strength after crimping.

Funnelled wire entry optimizes the wire insertion process. Supports wire sizes 12 AWG to 10 AWG for versatile electrical applications. Rated for maximum operating temperature of 105°C ensuring durable use under heat stress.

RoHS compliant reflecting adherence to environmental and safety standards. Construction designed for uniform reliable crimps in complex circuit systems.

This TE Connectivity PIDG Insulated Ring Terminal is ideal for use in electrical wiring systems for instruments, control panels, lighting systems, power supplies, and transportation or aerospace equipment, where consistent performance and mechanical reliability are critical. Its precise engineering and rigorous testing make it a dependable component for industrial, commercial, and laboratory environments.
