TE Connectivity PIDG Insulated Nylon Ring Terminal M3.5 Stud Size 26 AWG to 16 AWG Wire Size 2-36149-5

Free Delivery in India | Lowest Global Shipping Charges

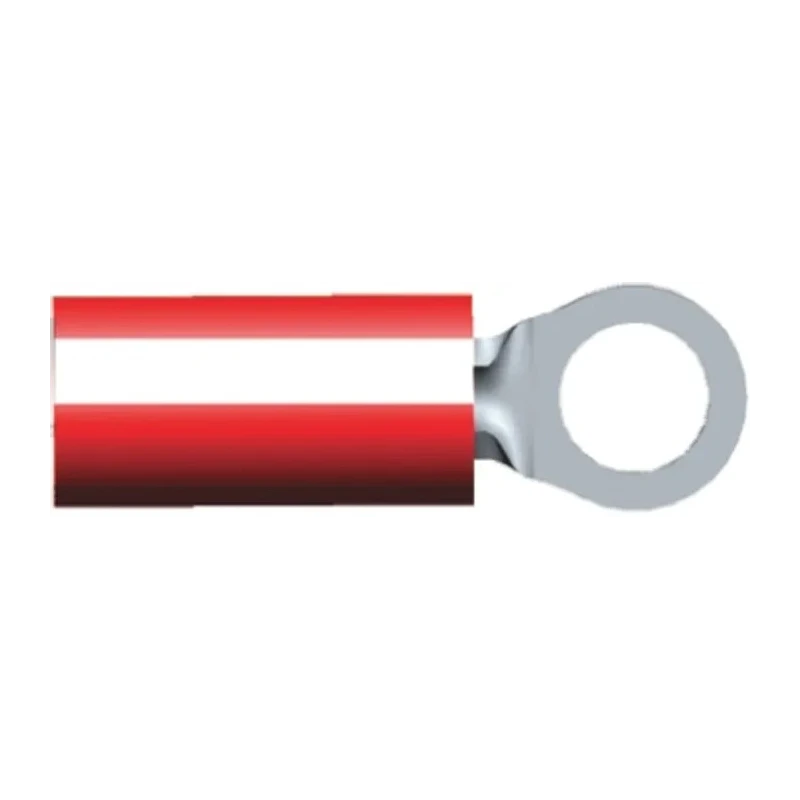

TE Connectivity PIDG Insulated Nylon Ring Terminal M3.5 Stud Size 26 AWG to 16 AWG Wire Size 2-36149-5

Name: TE Connectivity PIDG Insulated Nylon Ring Terminal M3.5 Stud Size 26 AWG to 16 AWG Wire Size 2-36149-5
Brand: TE Connectivity
SKU: 205565
Price: 1.3 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Red, White
THICKNESS	0.79mm
Insulation	Insulated
Overall Length	18.64mm
Contact Material	Copper
Series	PIDG
Maximum Operating Temperature	105°C
Insulation Material	Nylon
Standards/Approvals	RoHS
Contact Plating	Tin
Minimum Wire Size mm²	0.26mm²
Maximum Wire Size mm²	1.65mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	16AWG
Outer Ring Diameter	5.54mm
Inner Ring Diameter	3.68mm
Stud Size	M3.5

Key Features

High conductivity copper body ensures excellent electrical performance.
Insulated with a robust red and white nylon sleeve for wire size identification.
Serrations in the wire barrel provide strong tensile contact after crimping.
Funnelled wire entry design facilitates quick and reliable wire insertion.
Meets RoHS compliance and supports reliable electrical connections up to 105°C.
Designed for use in instruments, lighting, power supplies, panel boxes, motors, and aerospace applications.

Product Description

TE Connectivity 2-36149-5 PIDG insulated nylon ring terminal features a high conductivity copper body and barrel construction, providing uniform reliability in demanding circuit environments. It is designed with a tin plating on the copper contact material to resist corrosion and ensure long-lasting connections.

The ring terminal has an overall length of 18.64 mm, an outer ring diameter of 5.54 mm, and an inner ring diameter of 3.68 mm. It supports wire sizes ranging from 26 AWG (0.26 mm²) up to 16 AWG (1.65 mm²), accommodating common wiring requirements.

Its insulation is made from durable nylon, color-coded red and white, to enable fast wire size identification and enhanced insulation protection. The wire barrel is internally serrated, offering maximum contact and tensile strength after crimping, which is critical for secure electrical connections.

The funnelled wire entry prevents wire strand turn-backs during insertion, contributing to efficient, high-speed assembly processes. This terminal meets RoHS standards and is rated for maximum operating temperatures of up to 105°C, making it suitable for various industrial and commercial electrical applications.

High conductivity copper construction with tin plating for corrosion resistance. Nylon insulation sleeve in red and white for quick wire size identification. Serrated barrel for maximum tensile and contact strength after crimping.

Funnelled wire entry ensures easy and secure wire insertion. Complies with RoHS standards and rated for 105°C operating temperature. Ideal for use in instrumentation, control panels, lighting, power supplies, transportation equipment, motors, aerospace, and appliances.

This Ring Terminal is part of the PIDG series and is engineered to deliver consistent performance in electrical wiring tasks, compatible with specialized tool dies for uniform crimps.
