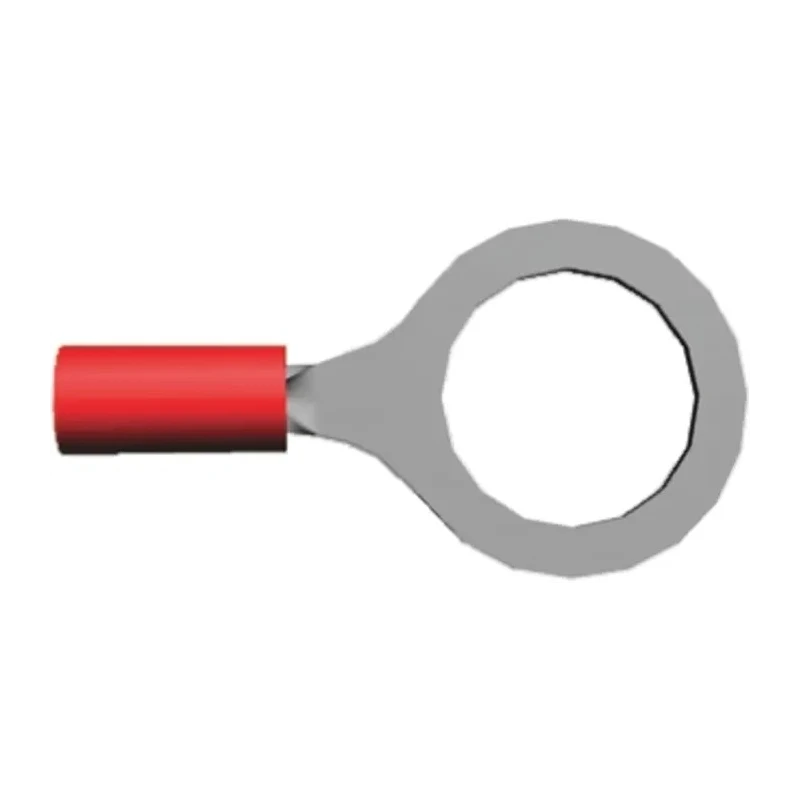

TE Connectivity PIDG Insulated Ring Terminal, M12 Stud Size, 22 AWG to 16 AWG Wire Size, Nylon Insulation, Red 328975

TE Connectivity 328975 PIDG Insulated Ring Terminal is a high-quality wire crimp terminal designed for industrial, aerospace, and electronic applications requiring secure and reliable connections. It supports wire sizes from 22 AWG to 16 AWG and features an M12 stud size to meet diverse installation needs. The terminal's red nylon insulation allows for easy wire size identification and adds durable protection.

The terminal is constructed from high conductivity copper with tin plating to enhance electrical conductivity and resist corrosion. Its precision-formed copper sleeve inside the barrel supports wire insulation and prevents fraying, while serrations provide strong mechanical and electrical contacts after crimping. The funnelled wire entry is engineered to facilitate quick wire insertion, optimizing assembly efficiency.

These PIDG ring terminals conform to RoHS standards, ensuring they are environmentally friendly and compliant with global regulations. Their robust construction and features make them suitable for applications such as instrumentation control, power supplies, panel wiring, lifting equipment, motors, lighting, transportation, and general industrial wiring.

Key features include high conductivity copper contacts, nylon insulation for wire protection, efficient crimping design, and color-coding for ease of use. This product offers a versatile and reliable wiring solution for demanding electrical and electronic installation tasks.

Constructed with high conductivity copper and tin-plated contacts for reliability. Insulated with nylon for enhanced wire protection. Precision-formed copper sleeve supports improved wire insulation and prevents wire fraying.

Serrations in the wire barrel provide maximum contact and tensile strength after crimping. Colour-coded nylon sleeves facilitate easy wire size and tooling identification. Funnelled wire entry allows fast and accurate wire insertion.

Meets RoHS environmental and safety standards. Suitable for instrumentation, aerospace, industrial, and control applications.

This product is part of the TE Connectivity PIDG terminal series known for excellent connectivity and durable design. It is ideal for professionals seeking reliable and high-performance Ring Terminals for various electrical wiring projects.
