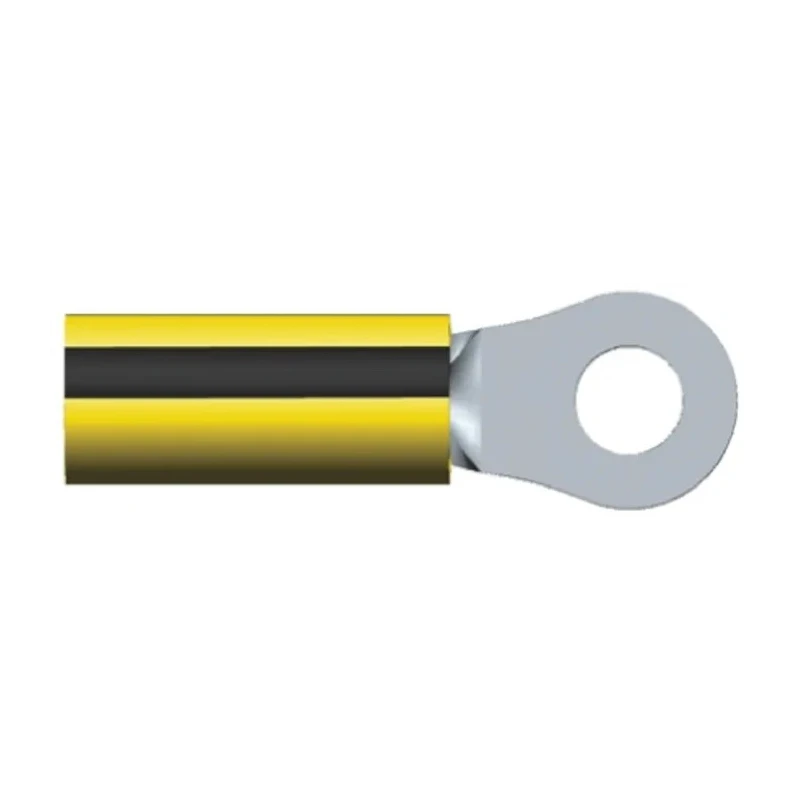

TE Connectivity PIDG Insulated Ring Terminal Black Yellow M4 Stud Size 16 AWG 14 AWG Wire Size 35106

TE Connectivity 35106 PIDG Insulated Ring Terminal is a high-quality electrical connector designed specifically for use with M4 stud sizes and wire gauges ranging from 16 AWG to 14 AWG. Featuring a precision-formed copper body, the terminal offers excellent conductivity and reliable electrical performance essential for industrial and laboratory wiring.

This insulated ring terminal incorporates a nylon color-coded sleeve, allowing fast and accurate wire size identification during installation. The barrel contains serrations that ensure maximum contact and tensile strength post crimping, significantly improving mechanical robustness and electrical continuity. Copper sleeves inside reinforce wire insulation support and prevent wire fraying, contributing to longer product life and safer operation.

With an outer ring diameter of 8.71mm and an inner ring diameter of 4.34mm, the terminal fits securely on M4 studs. Its overall length of 26.57mm and a thickness of 1.27mm make it compliant with strict dimensional standards, facilitating compatibility with a wide range of terminal blocks and electrical panels.

The contact plating uses tin to resist corrosion, making the terminal suitable for demanding environments and extended use. Rated to withstand temperatures up to 105°C, these ring terminals are suitable for various industrial applications, including instrumentation, panel wiring, power supplies, aerospace, and automotive electrical systems.

High conductivity copper body for reliable electrical contact. Color-coded nylon insulation sleeve for easy wire gauge identification. Serrated barrel ensures strong and uniform crimps. Compatible with wire sizes from 16 AWG to 14 AWG.

Conforms to CSA LR7189, RoHS, and UL E13288 standards. Maximum operating temperature 105°C. Manufactured in the United States ensuring quality and consistency.

This PIDG insulated ring terminal from TE Connectivity offers a versatile solution for durable, safe, and efficient circuit connections across industrial, laboratory, automotive, aerospace, and manufacturing sectors. Its engineering precision and robust design support high-performance wiring needs in complex assemblies.
