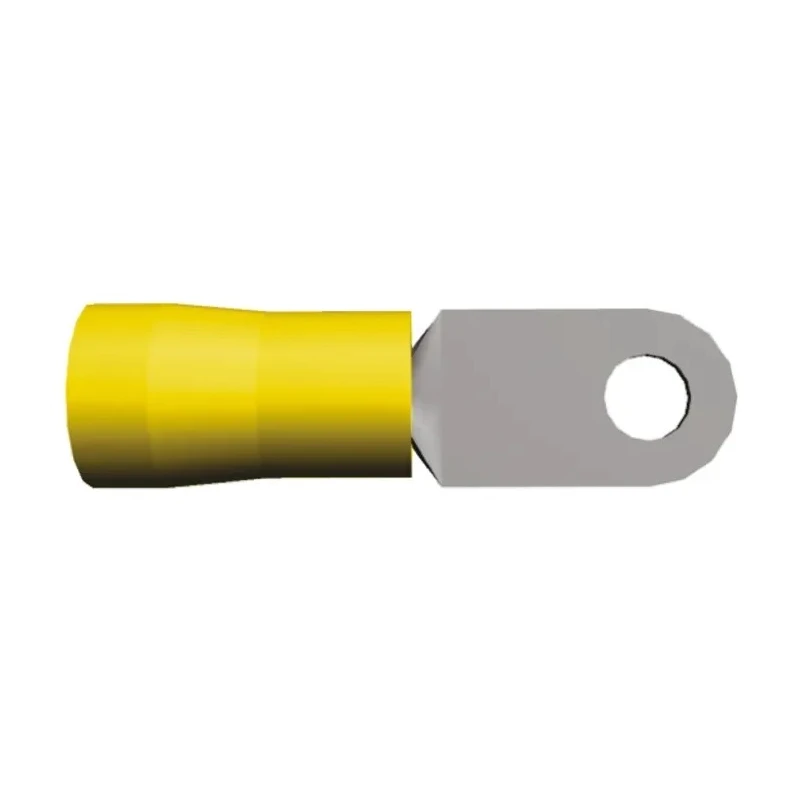

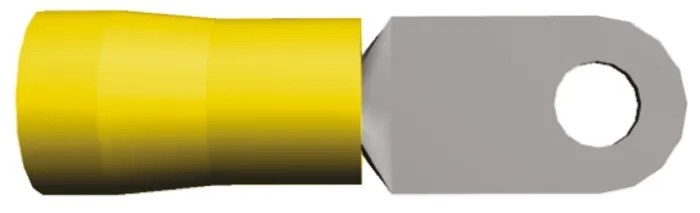

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 4 AWG Wire Size Yellow 52043-3

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 4 AWG Wire Size Yellow 52043-3

Name: TE Connectivity PLASTI-GRIP Insulated Ring Terminal M6 Stud Size 4 AWG Wire Size Yellow 52043-3
Brand: TE Connectivity
SKU: 205531
Price: 5.6 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Yellow
THICKNESS	0.79mm
Model	52043-3
Insulation	Insulated
Overall Length	49.48mm
Contact Material	Copper
Series	PLASTI-GRIP
Maximum Operating Temperature	105°C
Insulation Material	Polyvinyl Chloride
Standards/Approvals	UL, RoHS, CSA
Contact Plating	Tin
Minimum Wire Size mm²	16.77mm²
Maximum Wire Size mm²	26.65mm²
Minimum Wire Size AWG	4AWG
Outer Ring Diameter	13.87mm
Inner Ring Diameter	5mm
Stud Size	M6

Key Features

Constructed from high conductivity copper with tin plating for optimal electrical contact.
Yellow polyvinyl chloride vinyl insulation rated 94V-0 for high dielectric strength and durability.
Overall length is 49.48 mm with an outer ring diameter of 13.87 mm and inner ring diameter of 5 mm.
Serrated inner barrel ensures maximum electrical contact and tensile strength after crimping.
Suitable for wire sizes from 16.77 mm² to 26.65 mm² complying with UL, RoHS, and CSA standards.
Rated maximum operating temperature of 105 degrees Celsius for reliable performance.
Design allows easy insertion of stripped wire with a funneled entry on the barrel.
Ideal for industrial and electronic applications requiring durable and insulated wire terminals.

Product Description

TE Connectivity 52043-3 PLASTI-GRIP insulated ring terminal features copper construction with tin plating to provide excellent conductivity and corrosion resistance. Its polyvinyl chloride insulation in yellow color provides high dielectric strength with a 94V-0 rating to ensure safety and durability under electrical load.

Designed for an M6 stud size and compatible with 4 AWG wire size, this ring terminal has an overall length of 49.48 mm with precise dimensional tolerances including a 13.87 mm outer ring diameter and 5 mm inner ring diameter, ensuring secure and reliable connections.

The terminal features a serrated inner barrel that guarantees maximum electrical contact and tensile strength after crimping. The funneled wire barrel entry allows for easy insertion of stripped wires, enhancing efficiency during installation.

This terminal is rated for a maximum operating temperature of 105 degrees Celsius and complies with UL, RoHS, and CSA standards, making it suitable for stringent industrial, manufacturing, electronic, and electrical applications.

Applications include power connectors and wire terminal splicing in industrial automation, machinery, commercial electrical installations, and other professional use cases requiring reliable insulated Ring Terminals.

High conductivity copper with tin plating ensures reliable electrical contact. Yellow polyvinyl chloride insulation rated 94V-0 provides excellent dielectric strength. Precise fit for M6 stud and 4 AWG wire size with specified dimensions.

Serrated barrel enhances tensile strength and contact reliability. Complies with UL, RoHS, and CSA for safety standards. Maximum operating temperature up to 105°C. Ease of wire insertion via funneled barrel design. Suitable for diverse industrial and electrical applications.
