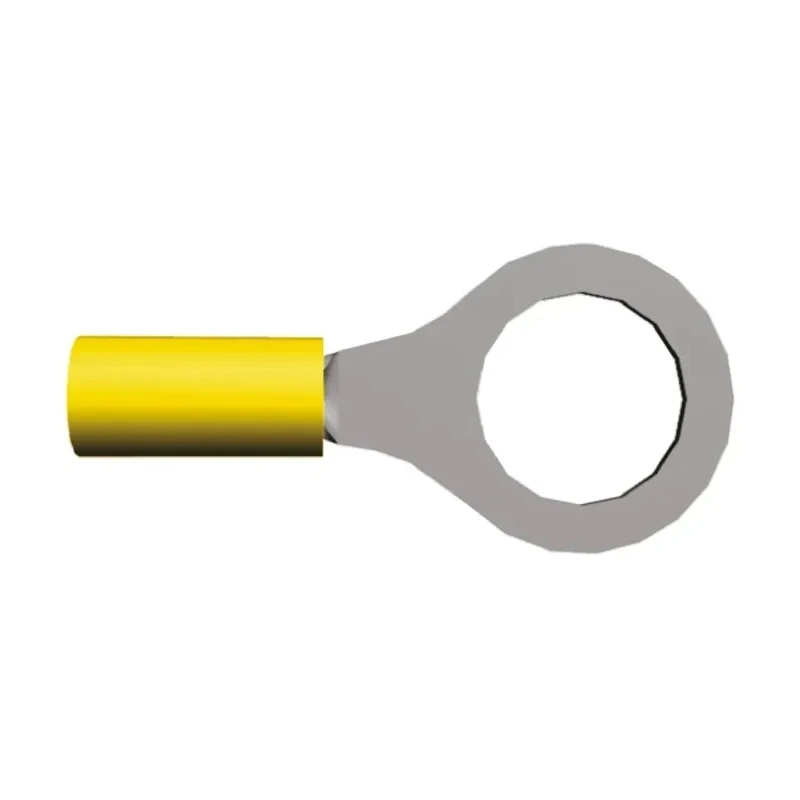

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M12 Stud Size 12 AWG 10 AWG Wire Size Yellow 34837

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity PLASTI-GRIP Insulated Ring Terminal M12 Stud Size 12 AWG 10 AWG Wire Size Yellow 34837

Name: TE Connectivity PLASTI-GRIP Insulated Ring Terminal M12 Stud Size 12 AWG 10 AWG Wire Size Yellow 34837
Brand: TE Connectivity
SKU: 205525
Price: 1.4 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	India
Brand	TE Connectivity
Colour	Yellow
THICKNESS	1mm
Model	34837
Insulation	Insulated
Overall Length	40.49mm
Contact Material	Copper
Series	PLASTI-GRIP
Maximum Operating Temperature	105°C
Insulation Material	Vinyl
Standards/Approvals	UL E13288, RoHS, CSA LR7189
Contact Plating	Tin
Minimum Wire Size mm²	2.6mm²
Maximum Wire Size mm²	6.6mm²
Minimum Wire Size AWG	12AWG
Maximum Wire Size AWG	10AWG
Stud Size	M12

Key Features

The ring terminal features high conductivity tin-plated copper construction with serrated inner barrel for maximum electrical contact.
The vinyl insulation sleeve offers high dielectric strength rated to 94V-0.
Designed for wire sizes between 12 AWG (2.6 mm²) and 10 AWG (6.6 mm²).
Overall length of the terminal is 40.49 mm with a thickness of 1 mm.
The terminal operates at maximum temperature of 105°C, compliant with UL, RoHS, and CSA standards.
Yellow color indicates compatibility with wire sizes 2.7 to 6.6 mm².

Product Description

TE Connectivity 34837 PLASTI-GRIP insulated ring terminal is designed for reliable electrical connections in power and electronic assemblies. Featuring an M12 stud size and compatible with wire sizes ranging from 12 AWG to 10 AWG, this terminal provides high conductivity through its tin-plated copper contact, maximizing electrical flow.

The insulation utilizes a high dielectric strength vinyl sleeve rated 94V-0, ensuring safety and durability in industrial environments with a maximum operating temperature of 105°C. The serrated inner barrel design enhances tensile strength and electrical contact after crimping, making installation efficient and secure.

This ring terminal is widely used in industrial, manufacturing, electrical maintenance, and power connector applications where reliable wire termination is critical. The yellow vinyl insulation also facilitates easy identification for wire sizing compatibility between 2.7 mm² and 6.6 mm².

The terminal measures 40.49 mm in overall length and has a thickness of 1 mm, suitable for compact wiring assemblies. It meets international standards including UL E13288, RoHS compliance, and CSA LR7189 for assured quality and environmental safety.

The ring terminal features high conductivity tin-plated copper construction with serrated inner barrel for maximum electrical contact. The vinyl insulation sleeve offers high dielectric strength rated to 94V-0. Designed for wire sizes between 12 AWG (2.6 mm²) and 10 AWG (6.6 mm²).

Overall length of the terminal is 40.49 mm with a thickness of 1 mm. The terminal operates at maximum temperature of 105°C, compliant with UL, RoHS, and CSA standards. Yellow color indicates compatibility with wire sizes 2.7 to 6.6 mm².

This TE Connectivity PLASTI-GRIP Ring Terminal is ideal for use in electronic components, power connectors, wiring harnesses, and industrial electronic assemblies. Browse the Electronics & Electricals category for more professional-grade wire terminal solutions at EnvMart.
