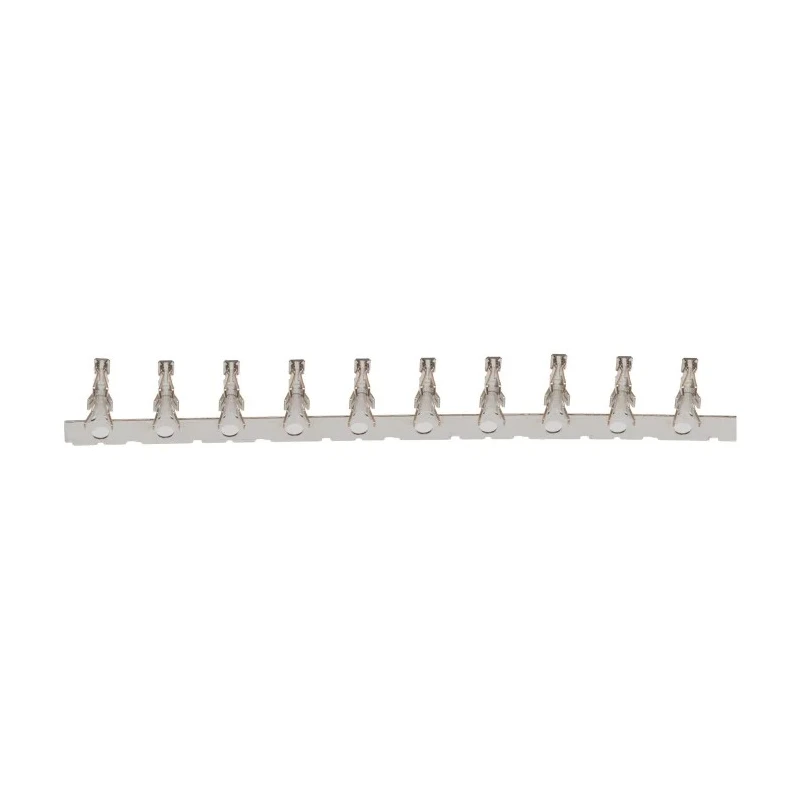

Hirose DF11 Series Female Crimp Terminal for DF11 Connector Housing, Tin Plated, 2A Current, 26-22 AWG

Hirose DF11-22SCF is a female crimp terminal from the DF11 series, engineered specifically for use with DF11 connector housings featuring a 2.00mm pitch. These terminals are designed to provide secure and reliable electrical connections within compact PCB and wire housing assemblies.

Constructed with phosphor copper and plated with tin, these crimp terminals offer low electrical resistance with a maximum contact resistance rated at 30 milliohms. Designed to carry up to 2 amps of current, the DF11-22SCF terminals accommodate wire sizes ranging from 26 AWG minimum to 22 AWG maximum, with the maximum wire size up to 0.3 mm².

The terminals operate effectively in a temperature range from -30°C to 85°C, making them suitable for demanding industrial and electronic environments. The termination method is crimping, ensuring a stable and durable mechanical and electrical connection between the wire and the terminal body.

Hirose DF11 series crimp terminals are widely employed in electronic components, power and connector applications, especially in industrial automation systems and PCB connector assemblies. They comply with RoHS directives, reflecting the brand's commitment to environmentally conscious manufacturing.

Compatible with DF11 Series 2.00mm connector housings. Phosphor copper contact material with tin plating for enhanced corrosion resistance. Maximum contact resistance of 30 milliohms. Supports wire sizes from 26 AWG (minimum) to 22 AWG (maximum).

Current rating of 2 amps suitable for low-power electronic circuits. Termination by crimp ensuring strong mechanical hold. Operating temperature from -30°C to 85°C. Environmentally compliant with RoHS standards. Recommended wire type UL1061 for optimized performance.

The set is essential for manufacturers and technicians working with PCB assemblies requiring reliable and efficient wire-to-board connectivity. Hirose connectors and terminals are renowned for precision engineering, durability, and consistent performance in complex electronic systems.
