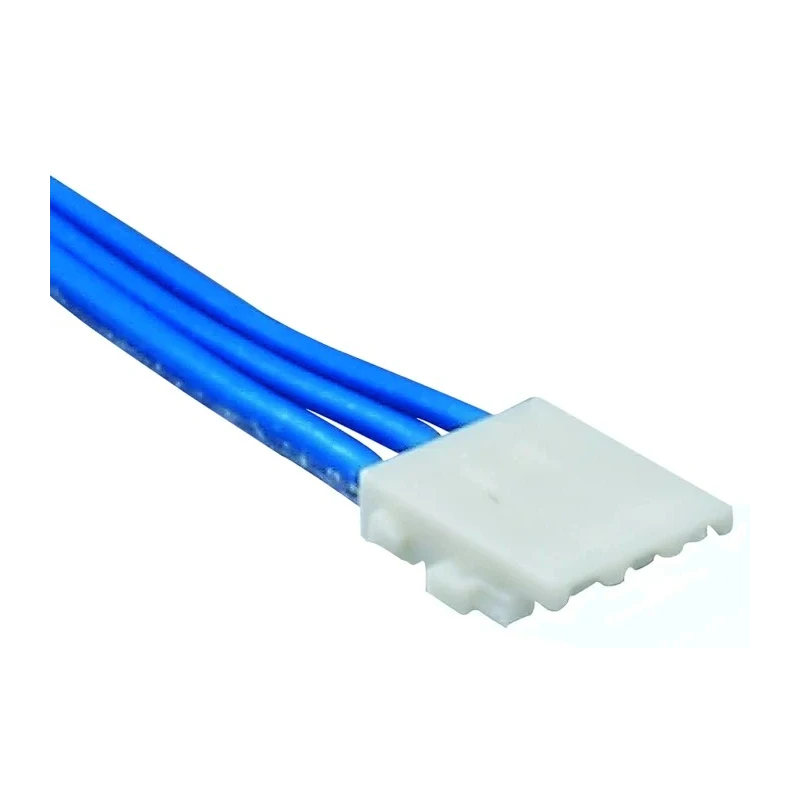

Hirose DF57 Female Connector Housing 1.2 mm Pitch 5 Way 1 Row Straight DF57
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 5.9mm |
| Model | DF57 |
| Width | 1.2mm |
| Mount Type | Surface Mount |
| Housing Material | Nylon |
| Series | DF57 |
| Number of Rows | 1 |
| Pitch | 1.2mm |
| For Use With | DF57H Connector |
| Number of Contacts | 5 |
| Connector Gender | Female |
Key Features
- Features a reinforced swing lock design with a double locking mechanism for enhanced cable retention.
- Includes insert key guides to ensure correct mating alignment preventing connector breakage.
- Low profile mating height of 1.4 mm for compact integration.
- Accepts wire sizes ranging from 34 AWG to 26 AWG.
- Constructed from durable nylon for reliable electrical insulation and mechanical strength.
- Suitable for connecting LED drivers to lighting fixtures and other electronic devices.
- Supports a high current capability of 2.5 A for industrial applications.
- Designed with a positive lock mechanism providing tactile feedback upon connection.
Product Description
Hirose DF57 Female Connector Housing DF57 is a precision-engineered 1.2 mm pitch, 5 contact, 1 row straight connector housing designed for secure and reliable surface mount PCB applications. It is constructed from high-quality nylon material ensuring durability and electrical insulation. The connector features a unique reinforced swing lock design with a double locking mechanism for increased cable retention, providing a stable connection in industrial and electronic environments.
The housing's insert key guides help prevent misalignment during mating, protecting against potential connector damage. With a low profile mating height of 1.4 mm, it supports compact device designs where space is critical. This housing supports wire sizes from 34 AWG to 26 AWG, making it versatile for a variety of wiring requirements.
The connector is suitable for applications including LED driver connections to lighting fixtures, digital still cameras, digital video cameras, notebook PCs, and tablet PCs, where a low profile and secure cable connection are vital. The housing is designed for surface mount alongside the DF57H connector series, providing a complete interconnect solution.
Reinforced swing lock design for secure cable retention. Double locking mechanism enhances connection reliability. Insert key guides prevent mismating and reduce damage risk. Compact low profile mating height of 1.4 mm. Wire size compatibility from 34 AWG to 26 AWG.
Constructed from nylon for strength and insulation. Rated for high current capability of 2.5 A. Positive lock mechanism offers tactile engagement confirmation.
This Hirose DF57 series connector housing is ideal for industrial, electronic manufacturing, and lighting system applications requiring secure and low profile wire-to-board connections. For more electronic components and Connector Housing options, explore our Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of the Hirose DF57 Female Connector Housing is 1.2 mm.
This connector housing features 5 contacts.
It accepts wire sizes ranging from 34 AWG to 26 AWG.
The housing supports a high current capability of 2.5 A.
It is constructed from durable nylon, providing reliable electrical insulation and mechanical strength.
The orientation of this connector housing is straight.
The length is 5.9 mm and the width is 1.2 mm.
Yes, it is designed for surface mount applications.
It features a reinforced swing lock design with a double locking mechanism for enhanced cable retention.
It is designed for use with the DF57H connector series.
It is suitable for connecting LED drivers to lighting fixtures and other electronic devices.
The housing includes insert key guides that ensure correct mating alignment, preventing connector breakage.
