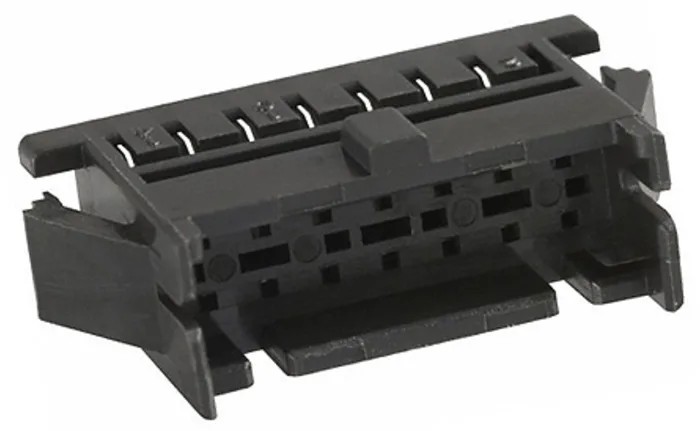

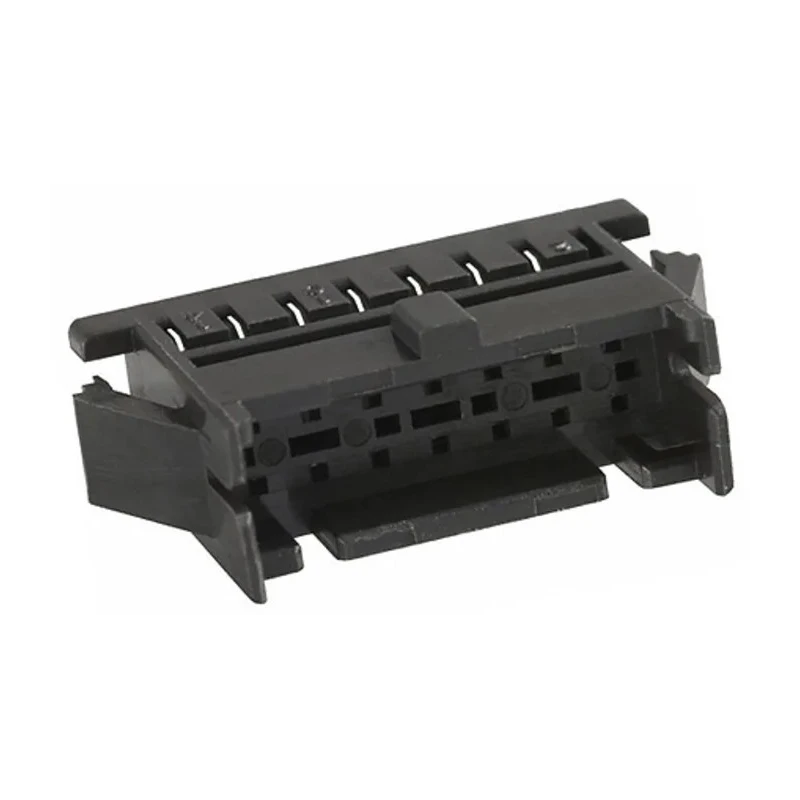

Hirose DF11 Series Male Connector Housing 2 mm Pitch 14 Way 2 Row Straight
Specifications
| Country of Origin | India |
|---|---|
| Brand | Hirose |
| Orientation | Straight |
| Length | 21mm |
| Model | DF11 |
| Width | 13mm |
| Mount Type | Panel |
| Housing Material | Polyamide |
| Series | DF11 |
| Number of Rows | 2 |
| Pitch | 2mm |
| For Use With | DF11 Series Contact |
| Number of Contacts | 14 |
| Connector Gender | Male |
Key Features
- Compact double row design saves board space with dimensions of 21 mm length and 13 mm width.
- Polyamide housing material ensures durability and thermal resistance.
- Friction locking mechanism secures the connector firmly in panel mount applications.
- Guide ribs prevent incorrect insertion and ensure proper mating alignment.
- Supports panel thickness between 1.0 mm to 1.6 mm for versatile mounting.
- Ideal for electronic devices needing multiple signal connections in limited space.
- Compatible with DF11 Series contacts, providing reliable electrical connections.
- Widely used in digital cameras, LCD displays, navigation systems, and measurement equipment.
Product Description
Hirose DF11-14DEP-2C male connector housing is a precision-designed electronic connector housing featuring a 2 mm pitch, 14 contacts arranged in a compact 2 row straight configuration. Its polyamide construction provides excellent durability and resistance to environmental stress. The double row design compresses a high number of contacts into a shallow 5 mm depth, allowing a space-saving footprint without sacrificing connectivity.
This male connector housing includes guide ribs to prevent misalignment or mating errors, and a friction locking mechanism that guarantees secure panel mounting retention. It can be mounted on panels ranging from 1.0 mm to 1.6 mm thick, making it versatile for various assembly environments.
These connectors are ideal for applications requiring multiple signal lines in compact electronic devices such as digital cameras, LCD monitors, digital video recorders, car navigation units, access control systems, and measurement instruments. The DF11 Series ensure reliable electrical performance with compliant mating contacts available separately.
Compact double row design saves board space with dimensions of 21 mm length and 13 mm width. Polyamide housing material ensures durability and thermal resistance. Friction locking mechanism secures the connector firmly in panel mount applications.
Guide ribs prevent incorrect insertion and ensure proper mating alignment. Supports panel thickness between 1.0 mm to 1.6 mm for versatile mounting. Compatible with DF11 Series contacts, providing reliable electrical connections.
Widely used in digital cameras, LCD displays, navigation systems, and measurement equipment.
Hirose DF11-14DEP-2C provides a high-quality, compact Connector Housing solution for modern electronics design. Explore our Electronics Components category at EnvMart for additional connector types and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a length of 21 mm and a width of 13 mm.
The connector housing features a 2 mm pitch.
It supports 14 contacts arranged in a double row configuration.
The housing is made from polyamide, which provides durability and thermal resistance.
It supports panel thicknesses between 1.0 mm and 1.6 mm.
This model is designed for panel mounting.
The orientation of this connector housing is straight.
It is compatible with DF11 Series contacts, which are sold separately.
This model is widely used in digital cameras, LCD displays, navigation systems, and measurement equipment.
Yes, it features a friction locking mechanism that secures the connector firmly in panel mount applications.
The housing includes guide ribs that prevent misalignment and ensure proper mating alignment.
It has a compact double row design that saves board space while providing reliable connectivity.
