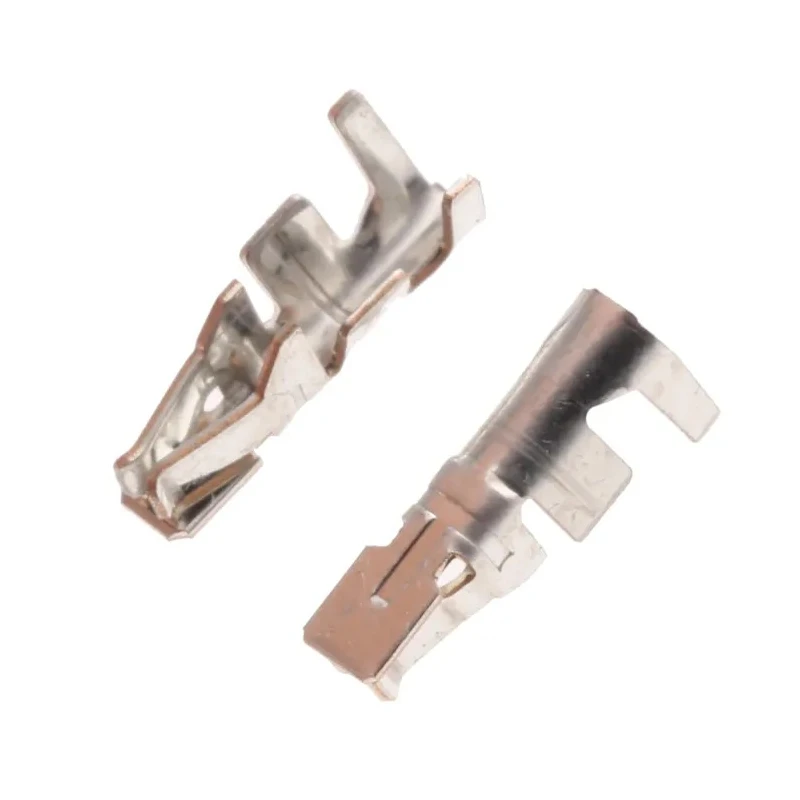

Hirose DF11 Series Female Crimp Terminal, 30 AWG Min Crimp, 22 AWG Max DF11

Hirose DF11 Series Female Crimp Terminal DF11 is engineered for precise and secure crimp connections in electronic assemblies. This female crimp terminal supports wire sizes ranging from 30 AWG minimum to 22 AWG maximum, making it suitable for fine to medium gauge wiring applications in industrial and electronic systems.

Constructed from copper alloy, the contact ensures excellent conductivity and mechanical strength. Tin plating offers superior corrosion resistance and robust electrical contact reliability, vital for sustained performance in industrial environments.

Rated for 2A current and capable of operating within temperatures from -30°C to 85°C, these terminals are designed to endure various operational stresses encountered in electronics manufacturing, automation, and communication equipment.

The crimp termination style provides a secure mechanical and electrical connection when used with compatible DF11 connector housings, which are widely implemented in PCB connectors and wire housing assemblies. The contact resistance is maintained below 30 milliohms, ensuring minimal signal loss and efficient power transmission.

Manufactured in Japan, Hirose maintains stringent quality controls, positioning these crimp terminals for reliability and long service life in critical electronic applications. The product is ideal for assembly lines requiring high throughput crimp processes and consistent connector performance.

Suitable for use with DF11 connector housings ensuring secure wire connections. Constructed with copper alloy for reliable conductivity. Tin plating provides corrosion resistance and good electrical contact. Rated for a maximum current of 2 amperes.

Operating temperature range from -30°C to 85°C ensures durability. Designed for crimp termination type applications. Maximum contact resistance of 30 milliohms guarantees efficient signal transmission. Manufactured in Japan with high-quality standards.

Compatible with wire sizes from 30 AWG to 22 AWG (0.3 mm² maximum).

This terminal is suitable for industrial automation, electronic manufacturing, communication devices, and PCB assembly. It enhances wiring reliability in various equipment and devices requiring robust electrical connections.
