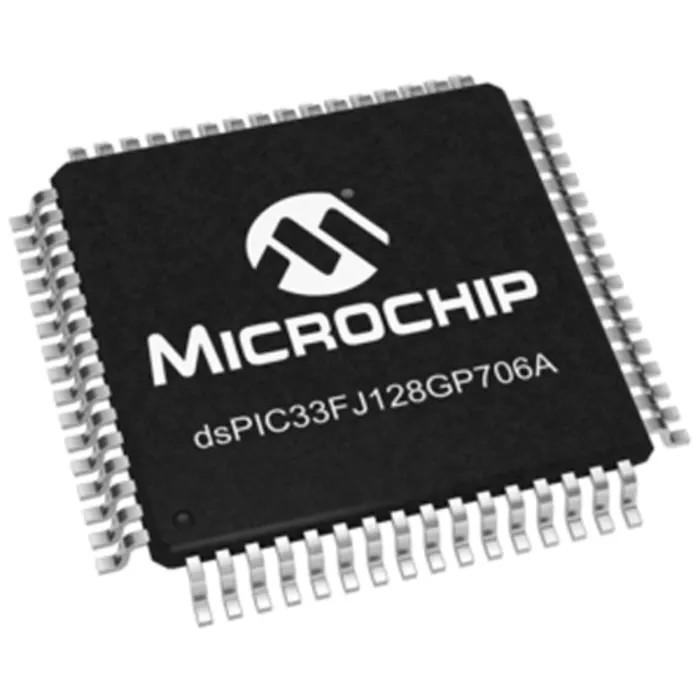

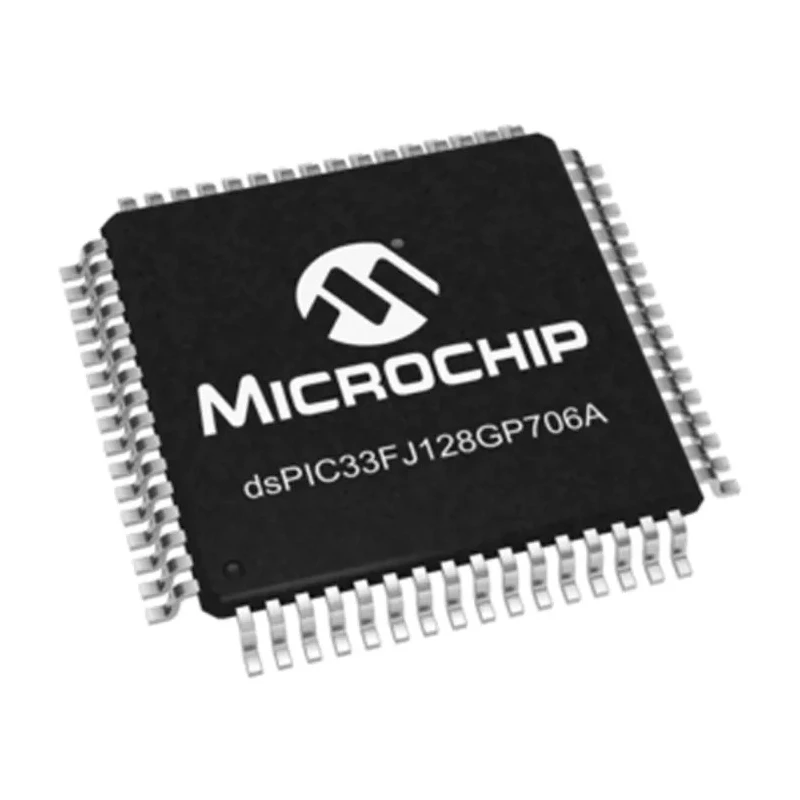

Microchip 16 Bit Digital Signal Processor 40 MIPS 128kB FLASH 64-Pin TQFP dsPIC33FJ128GP706A-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | dsPIC33FJ128GP706A-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 19bit |
| Timer Resolution | 16bit |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 128kB |
| Number of Timers | 9 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 36 |
| Number of PWM Channels | 8 |
Key Features
- Features a 16 bit data bus and 16kB RAM for efficient data handling.
- Operates with a RISC instruction set architecture at a maximum clock frequency of 40 MIPS.
- Supports one ADC with 19 bit resolution and 36 ADC channels for high precision measurement.
- Equipped with 8 PWM channels and 9 timers, including a timer resolution of 16 bit.
- Designed with automotive standard AEC-Q100 compliance for reliability in industrial applications.
- Operates within a temperature range of -40°C to 85°C, suitable for harsh environments.
- Compact dimensions of 10mm length, 10mm width, and 1.05mm height in a surface mount TQFP package.
- Ideal for digital filter algorithms, high-speed precision digital control loops, and digital audio and speech processing.
Product Description
Microchip dsPIC33FJ128GP706A-I/PT is a high-performance 16 bit Digital Signal Processor featuring 40 MIPS processing capability and 128kB FLASH program memory in a compact 64-Pin TQFP surface mount package. It operates on a supply voltage range of 3V to 3.6V and is rated for operation from -40°C to 85°C, making it suitable for demanding industrial and automotive applications.
This device includes a 16 bit data bus, 16kB RAM, and utilizes a RISC instruction set architecture that enables efficient execution of complex digital signal processing algorithms. It incorporates a single ADC with a resolution of 19 bits across 36 ADC channels, supporting high precision sensing and control tasks.
With 8 PWM channels, one PWM unit, and 9 timers with 16 bit resolution, the dsPIC33FJ128GP706A-I/PT is optimized for motor control and power electronics applications. Automotive AEC-Q100 standard compliance ensures robust performance in vehicle environments.
Typical uses include digital filter implementation, audio and speech processing, and sophisticated motor control solutions requiring precise pulse width modulation and fast analog-to-digital conversion. The device is well-suited for digital power supply designs with integrated SMPS features such as high speed PWM and analog comparators.
16 bit data bus and 16kB RAM ensure rapid data processing. 40 MIPS maximum clock frequency with RISC architecture for efficient code execution. Single ADC with 19 bit resolution and 36 channels for enhanced signal acquisition.
Eight PWM channels support complex motor and power control. Operates at temperatures from -40°C to 85°C, complying with automotive standards.
The compact 64-pin TQFP package measures 10mm x 10mm x 1.05mm, facilitating high-density PCB designs. This DSP is ideal for industrial automation, automotive electronics, laboratory instrumentation, and advanced embedded control systems.
Explore more Microchip Digital Signal Processors and accessories at EnvMart for your advanced embedded system requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a maximum processing speed of 40 MIPS.
The operating temperature range is from -40°C to 85°C, making it suitable for harsh environments.
It features 128kB of FLASH program memory.
The device includes a single ADC with a resolution of 19 bits.
This model supports 8 PWM channels.
The dimensions are 10mm in length, 10mm in width, and 1.05mm in height.
It utilizes a RISC instruction set architecture for efficient processing.
The device is equipped with 9 timers, each with a resolution of 16 bits.
It is designed with automotive standard AEC-Q100 compliance for reliability in industrial applications.
The supply voltage range is from 3V to 3.6V.
It is ideal for digital filter algorithms, high-speed precision digital control loops, and digital audio and speech processing.
This model has a pin count of 64.
