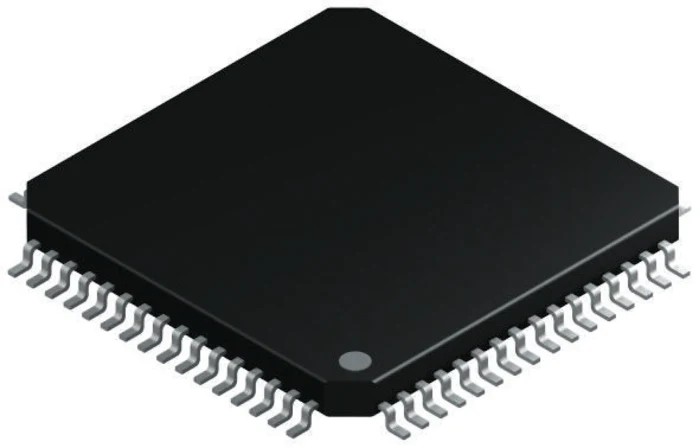

Microchip 16-bit Digital Signal Processor 40 MIPS 128kB FLASH 64-Pin TQFP dsPIC33FJ128GP306A-I/PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 10mm |
| Model | dsPIC33FJ128GP306A-I/PT |
| Width | 10mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 85°C |
| Package Type | TQFP |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 16bit |
| Pin Count | 64 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3V |
| Program Memory Size | 128kB |
| Number of Timers | 9 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 1 |
| PWM Resolution | 16bit |
| ADC Channels | 18 |
| Number of PWM Channels | 8 |
Key Features
- Operates at a maximum clock frequency of 40 MIPS for efficient processing.
- Utilizes a 16-bit data bus width and RISC instruction set architecture.
- Includes 16kB RAM and 128kB FLASH program memory for robust application support.
- Supports single ADC and multiple PWM channels for versatile control applications.
- Operates under supply voltages ranging from 3V to 3.6V.
- Designed for surface mount with a 64-pin TQFP package type.
- Features automotive standard AEC-Q100 compliance ensuring reliability.
- Functions in temperature range from -40°C to 85°C for diverse environments.
Product Description
Microchip dsPIC33FJ128GP306A-I/PT is a 16-bit Digital Signal Processor delivering 40 MIPS performance, equipped with 128kB FLASH memory and 16kB RAM. It supports a RISC instruction set and operates with a 16-bit data bus width, making it suitable for precision digital control and embedded applications.
This processor is designed with a 64-pin TQFP surface-mount package, maintaining compact physical dimensions of 10mm by 10mm and 1.05mm height, apt for space-constrained designs.
Its operating voltage ranges from 3V to 3.6V, supporting a wide temperature range of -40°C to 85°C, ensuring reliability in automotive and industrial environments. The device complies with automotive standard AEC-Q100, enhancing its suitability for automotive applications.
The dsPIC33FJ128GP306A-I/PT features 1 ADC, 8 PWM channels, and sophisticated timer resolution and PWM capabilities at 16-bit. It includes 9 timers and 18 ADC channels, offering extensive peripheral support for complex control tasks.
This processor is ideal for industrial, automotive, and embedded electronics applications requiring high-speed signal processing, motor control, digital audio processing, and digital power supplies. Its on-chip advanced peripherals facilitate the design of precision motor control systems and high-performance power electronics.
Operates at maximum clock frequency of 40 MIPS for fast digital processing. Incorporates 16-bit data bus width and RISC architecture for efficient instruction execution. Offers 128kB FLASH and 16kB RAM memory for program and data storage.
Suitable for surface mount applications in a compact 64-pin TQFP package. Complies with automotive standard AEC-Q100 to meet stringent quality demands. Extends operational temperature range from -40°C to 85°C for robust performance.
Features 18 ADC channels and 8 PWM channels for complex control. Equipped with 9 timers and 16-bit resolution for timing precision. Explore more Microchip Digital Signal Processors and related components on EnvMart to enhance your electronic designs with innovative and reliable semiconductor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MIPS, allowing for efficient processing capabilities.
It operates within a temperature range of -40°C to 85°C, making it suitable for diverse environments.
This processor includes 128kB of FLASH program memory for robust application support.
The dsPIC33FJ128GP306A-I/PT is equipped with 16kB of RAM.
It features 18 ADC channels, providing extensive peripheral support for complex control tasks.
This model is designed in a 64-pin TQFP surface-mount package, with dimensions of 10mm x 10mm and a height of 1.05mm.
It complies with the automotive standard AEC-Q100, ensuring reliability for automotive applications.
It operates under supply voltages ranging from 3V to 3.6V.
The processor supports 8 PWM channels, which are useful for versatile control applications.
It utilizes a RISC instruction set architecture for efficient instruction execution.
This model includes 9 timers, providing enhanced timing precision for various applications.
