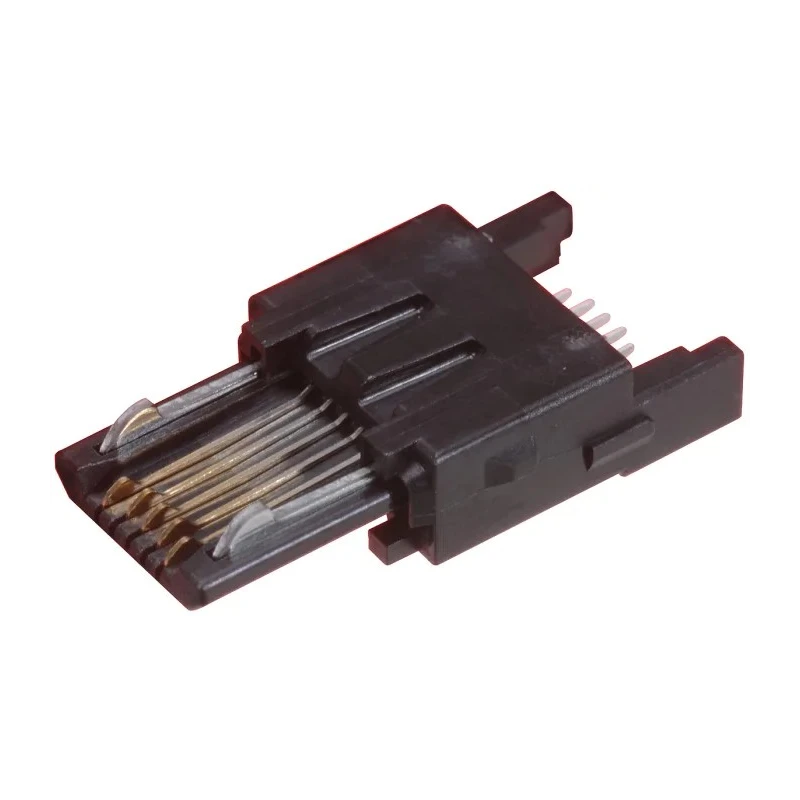

Hirose Straight Surface Male USB Type B USB Connector USB 2.0 Mount Type Surface Current 1A Voltage 30V ZX64-B-5S-UNIT(31)

Hirose ZX64-B-5S-UNIT(31) is a high-quality USB Connector featuring a straight surface mount male plug with USB Type B interface, compliant with USB 2.0 standards. Rated for 1 amp current and 30 volts, this connector is engineered for secure and durable connections in electronic devices.

The compact design of the ZX series USB 2.0 connectors is approximately 60% smaller than standard mini USB connectors, delivering high-speed data transfer rates up to 480 Mbps. The active latch mechanism provides a tactile click feedback upon mating, ensuring a reliable attachment and reducing accidental disconnections.

This model supports smooth mating and unmating operations with a withdrawal force of just 8 newtons, which minimizes connector wear and prolongs operational lifespan up to 10,000 cycles. It operates effectively over a wide temperature range from -30°C to 85°C, making it suitable for diverse environments.

The contacts are made from copper alloy for excellent electrical conductivity and are terminated via solder type for robust PCB integration. Suitable for ultra-thin phones, data recorders, readers, cameras, camcorders, PDAs, and handheld GPS units, this connector supports applications requiring compact size and high reliability.

ZX64-B-5S-UNIT(31) offers versatile mounting options with surface mounting type suitable for modern circuit board designs. The connector is not certified for hazardous areas and conforms to no specific standards beyond USB 2.0 but is designed with high manufacturing quality by Hirose.

Compact Surface Mount USB Type B male connector for reliable connections. Supports USB 2.0 high-speed data transfer at 480 Mbps. Active latch mechanism ensures secure tactile click when mated. Durable design rated for 10,000 mating cycles with low wear.

Operates reliably from -30°C up to 85°C temperature range. Copper alloy contact material provides excellent conductivity. Solder termination type for stable PCB mounting. Designed for compact and high-reliability applications in electronics.

This USB Connector is ideal for various industrial and commercial electronic applications such as consumer electronics manufacturing, telecommunications, and embedded systems requiring high-speed USB 2.0 connectivity in space-constrained devices.
