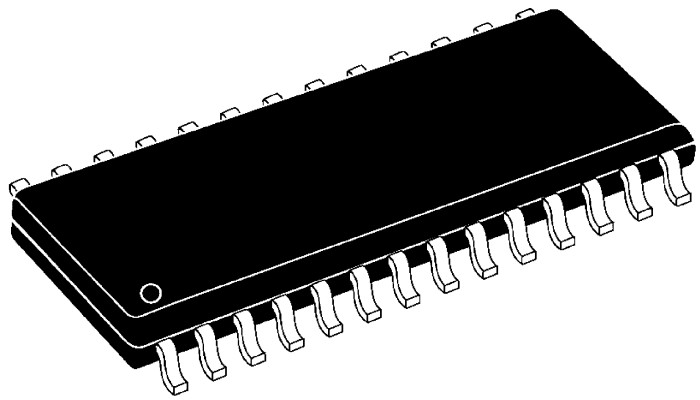

Microchip 16 Bit Digital Signal Controller 40 MHz 128kB FLASH 28-Pin SOIC DSPIC33FJ128MC802-I/SO
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 2.05mm |
| Length | 17.9mm |
| Model | dsPIC33FJ128MC802-I/SO |
| Width | 7.5mm |
| Mount Type | Surface |
| Core | dsPIC33F |
| Series | DSPIC33FJ128MC |
| Maximum Operating Temperature | 85°C |
| Number Of Cores | 1 |
| Package Type | SOIC W |
| Minimum Operating Temperature | -40°C |
| Ram size | 16kB |
| ADC Resolution | 12bit |
| Timer Resolution | 32bit |
| Standards/Approvals | VDE, AEC-Q100, IEC 60730 |
| Pin Count | 28 |
| Automotive Standard | AEC-Q100 Rev G Grade 0 |
| Maximum Supply Voltage | 3.6V |
| Minimum Supply Voltage | 3.3V |
| Program Memory Size | 128kB |
| Maximum Clock Frequency | 40MHz |
| Number of Timers | 5 |
| Instruction Set Architecture | RISC |
| Program Memory Type | FLASH |
| Number of ADCs | 1 |
| Device Million Instructions per Second | 40MIPS |
| Number of PWM Units | 4 |
| PWM Resolution | 25ns |
| ADC Channels | 9 |
| Number of PWM Channels | 8 |
| Numeric and Arithmetic Format | 16 x 16 |
Key Features
- Operates at a maximum clock frequency of 40 MHz delivering 40 Million Instructions Per Second.
- Features a 16-bit data bus and 16kB RAM for efficient processing.
- Utilizes a dsPIC33F core with RISC instruction set architecture for optimized performance.
- Includes a single ADC with 12-bit resolution and 9 ADC channels for precise analog measurements.
- Equipped with 8 PWM channels and 4 PWM units supporting 25ns resolution for motor control applications.
- Designed with a surface mount 28-pin SOIC package measuring 17.9mm by 7.5mm by 2.05mm.
- Operates within voltage range of 3.3V to 3.6V and temperature range of -40°C to 85°C.
- Compliance with VDE, AEC-Q100 Rev G Grade 0, and IEC 60730 standards ensures reliability and automotive suitability.
Product Description
Microchip DSPIC33FJ128MC802-I/SO is a sophisticated 16 bit digital signal controller designed to combine the computational power of a Digital Signal Processor with the ease of a microcontroller. Running at a maximum clock frequency of 40 MHz, this device provides up to 40 MIPS of processing capability, ideal for high-speed precision digital control loops, digital audio processing, and complex algorithms.
The controller includes a 16-bit data bus, 16kB RAM, and 128kB of FLASH program memory, programmed via a RISC architecture dsPIC33F core. This architecture supports efficient execution of 16x16 numeric and arithmetic operations, enhancing signal processing performance.
Featuring one 12-bit ADC with 9 ADC channels, and 8 PWM channels spread across 4 PWM units with 25 ns resolution, it is well suited to precision motor control and power conversion applications. The package is a surface mount SOIC with 28 pins, ensuring compactness for embedded systems.
Operating voltage ranges from 3.3V minimum to 3.6V maximum, supporting a wide range of industrial power supplies. The device functions reliably within a wide temperature range (-40°C to 85°C), conforming to automotive-grade AEC-Q100 Rev G Grade 0 standards along with VDE and IEC 60730 certifications.
Applications include industrial motor control, digital power supplies, automotive sensor systems, and embedded signal processing in commercial and industrial environments. Operates at a maximum clock frequency of 40 MHz delivering 40 Million Instructions Per Second.
Features a 16-bit data bus and 16kB RAM for efficient processing. Utilizes a dsPIC33F core with RISC instruction set architecture for optimized performance. Includes a single ADC with 12-bit resolution and 9 ADC channels for precise analog measurements.
Equipped with 8 PWM channels and 4 PWM units supporting 25ns resolution for motor control applications. Designed with a surface mount 28-pin SOIC package measuring 17.9mm by 7.5mm by 2.05mm. Operates within voltage range of 3.3V to 3.6V and temperature range of -40°C to 85°C.
Compliance with VDE, AEC-Q100 Rev G Grade 0, and IEC 60730 standards ensures reliability and automotive suitability. Explore Microchip 16 bit digital signal controllers for robust, high-performance embedded processing applications at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum clock frequency of this model is 40 MHz, delivering up to 40 Million Instructions Per Second (MIPS).
It features 128kB of FLASH program memory for storing instructions and data.
This model includes one ADC with 12-bit resolution and 9 ADC channels for precise analog measurements.
It operates within a voltage range of 3.3V to 3.6V.
The surface mount package measures 17.9mm in length, 7.5mm in width, and 2.05mm in height.
It is equipped with 8 PWM channels across 4 PWM units, supporting a resolution of 25 ns.
The device operates reliably within a temperature range of -40°C to 85°C.
It complies with VDE, AEC-Q100 Rev G Grade 0, and IEC 60730 standards.
It utilizes a RISC instruction set architecture for optimized performance.
This model features 16kB of RAM for efficient processing.
It supports a 16 x 16 numeric and arithmetic format for enhanced signal processing performance.
The device includes 5 timers for various timing applications.
