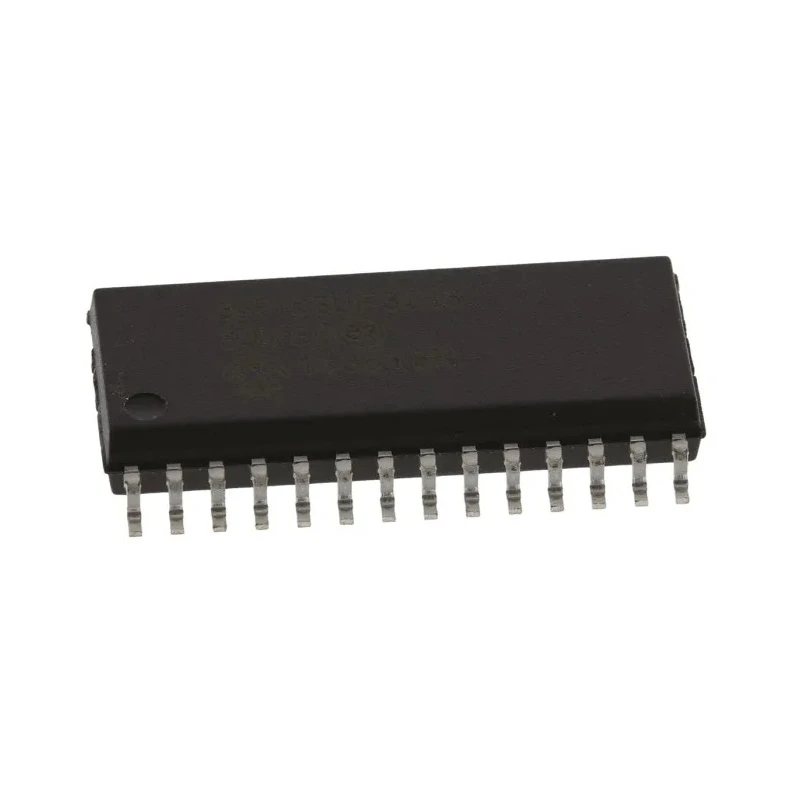

Microchip 16 bit Digital Signal Processor 30 MIPS 24kB FLASH 28-Pin SOIC dsPIC30F3013-30I/SO

Microchip dsPIC30F3013-30I/SO is a 16 bit Digital Signal Processor designed for industrial, embedded, and automation applications requiring high processing speed with low power consumption. Featuring a maximum clock frequency of 30 MIPS, this processor provides efficient real-time signal processing capabilities.

This dsPIC30F variant integrates 24kB FLASH program memory with 2kB RAM, utilizing a RISC instruction set architecture for optimized performance. The processor operates over a wide supply voltage range from 2.5 V to 5.5 V, supporting low voltage and 5V systems alike. Its surface mount SOIC package with 28 pins enables easy PCB integration in compact designs.

With operational temperature ranging from -40°C to 85°C, the device is well-suited for industrial and automotive environments where reliability is critical. The integrated peripherals include one 12-bit ADC with 10 channels for precise analog signal conversions and two 16-bit PWM units for motor control or power modulation applications. Additionally, three 16-bit timers provide extended timing functions for embedded systems.

The compact physical dimensions of length 17.9 mm, width 7.5 mm, and height 2.35 mm help reduce board space while maintaining high performance. This Digital Signal Processor is ideal for advanced control tasks such as motor drives, digital power conversion, audio processing, and smart sensing applications.

It provides designers with a reliable platform for implementing efficient digital signal processing solutions across various industrial, automotive, and consumer product sectors. Operates at a maximum clock frequency of 30 MIPS for efficient digital processing.

Features 16-bit data bus width with 2kB RAM for versatile application support. Includes a RISC instruction set architecture optimized for digital signal control. Program memory size of 24kB using FLASH type, enabling easy code updates.

Operates over a wide supply voltage range from 2.5 V to 5.5 V. Surface mount package with SOIC type and 28 pins ensuring compact integration. Temperature range from -40°C to 85°C suitable for industrial environments. Incorporates 1 ADC with 12-bit resolution and 10 ADC channels for accurate analog input.

Includes 2 PWM units with 16-bit resolution and 3 timers with 16-bit resolution. Compact dimensions: length 17.9 mm, width 7.5 mm, height 2.35 mm. Explore our extensive range of Digital Signal Processors and related semiconductor products at EnvMart to support your next innovative embedded system project.
