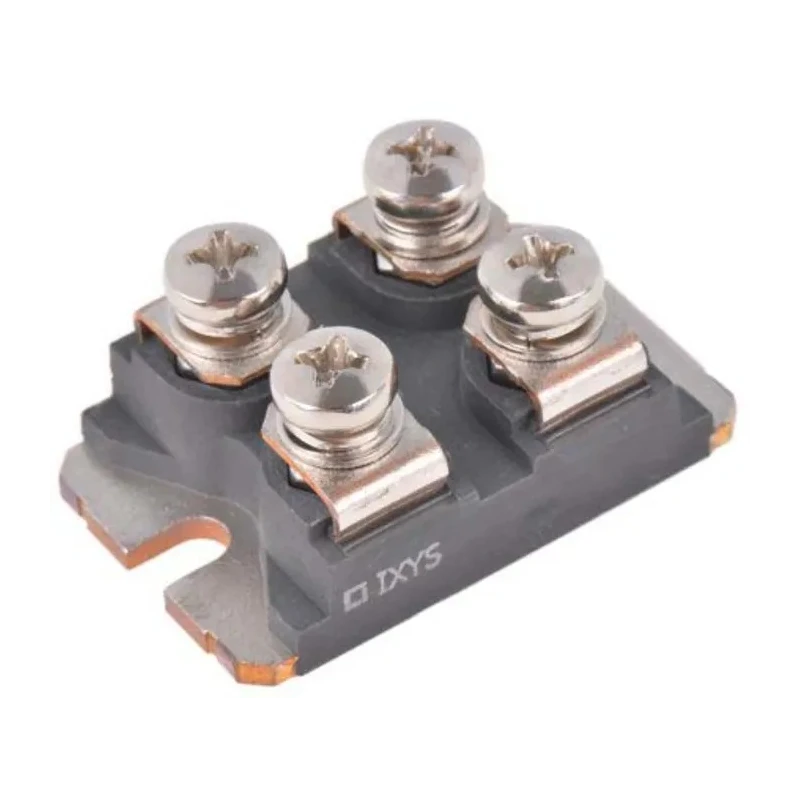

IXYS 300 V 60 A General Purpose Diode Panel Mount 4-Pin SOT-227 DSEP2x61-03A

IXYS DSEP2x61-03A is a high-performance General Purpose Diode designed for panel mounting with a 4-pin SOT-227 package. This diode module integrates two isolated Fast Recovery Epitaxial Diodes (FRED) in a single robust moulded package, facilitating efficient power conversion and rectification in industrial and electronic systems.

Rated for a maximum continuous forward current of 60 A and a peak reverse repetitive voltage of 300 V, the DSEP2x61-03A offers excellent thermal performance and electrical reliability. The M4 screw connections combined with a two-hole isolated fixing base ensure secure and easy installation in various power applications.

Its low reverse recovery current characteristic significantly reduces power losses and optimizes switching efficiency, making it suitable for use in power supply, inverter, and motor drive applications. The diode's soft reverse recovery behavior leads to minimized electromagnetic interference (EMI) and radio frequency interference (RFI), improving system stability and compliance.

The module withstands high surge currents, rated at 600 A peak non-repetitive forward surge current, and operates safely within a temperature range down to -40°C and up to 125°C. Its compact size, with dimensions of 38.23 mm length, 25.25 mm width, and 12.22 mm height, allows integration into space-sensitive applications.

Contains two isolated Fast Recovery Epitaxial Diodes (FRED) in one module for efficient rectification. Low leakage current and excellent avalanche voltage rating ensure reliability. Soft reverse recovery time improves EMI and RFI performance in electronic systems.

Ideal for use in industrial power electronics, motor control, power supplies, and manufacturing equipment. Panel mount style with M4 screw terminals and isolated fixing base for easy installation. Operates at temperatures from -40°C to 125°C for versatile environmental compatibility.

Complies with general-purpose rectifier applications requiring high current and voltage capability.

This diode is suitable for industrial, manufacturing, power electronics, and laboratory applications requiring reliable and efficient power rectification. Choose IXYS DSEP2x61-03A for enhanced performance and durability in demanding environments.
