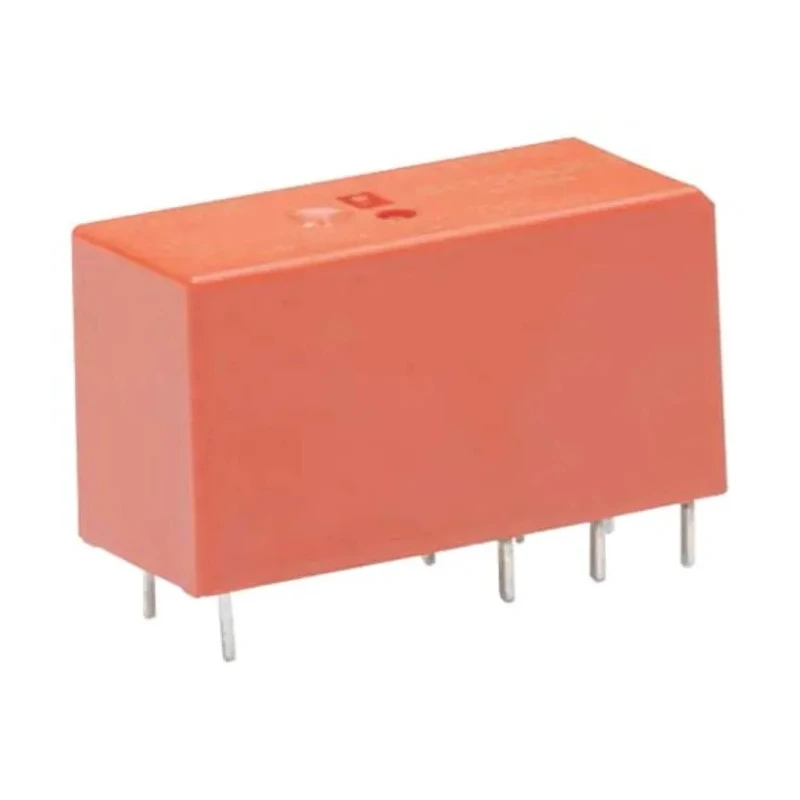

WAGO DIN Rail Power Relay 24V DC Coil, 8A Switching Current, DPDT Contact Configuration 788-156
Specifications
| Country of Origin | India |
|---|---|
| Brand | WAGO |
| Height | 15mm |
| Length | 29mm |
| Model | 788-156 |
| Width | 12.7mm |
| Mount Type | DIN Rail |
| Contact Material | Silver Alloy |
| Series | 788 |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 8A |
| Terminal type | Plug-In |
| Standards/Approvals | RoHS |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
Key Features
- Features a plug-in terminal type for easy installation.
- Compact dimensions measuring 29mm length x 15mm height x 12.7mm width.
- Operates reliably in temperatures from -40°C to 85°C.
- Silver alloy contacts ensure durability and excellent conductivity.
- Red status indicator for clear operational monitoring.
- Designed for general purpose use in industrial and automation relays.
- Complies with RoHS standards for environmental safety.
- Switching power rated at 4kVA and switching AC voltage up to 250V AC.
Product Description
WAGO 788-156 DIN Rail Power Relay is a highly reliable miniature relay designed for industrial and automation applications. It features a 24V DC coil and a Double Pole Double Throw (DPDT) contact configuration suitable for various switching tasks.
The relay comes with plug-in terminals to facilitate quick and secure installation on DIN rails. Compact in size, measuring 29mm in length, 15mm in height, and 12.7mm in width, it saves space in control panels while ensuring robust performance.
Its wide operating temperature range from -40°C to 85°C makes it suitable for harsh industrial environments. Silver alloy contact material provides excellent conductivity and long service life. The built-in red status indicator enables easy visual confirmation of relay status during operation.
WAGO 788 Series miniature relays are known for their superior reliability and time-saving features, making them ideal components in power relay and signal conditioning applications across manufacturing, automation, electrical installations, and control systems.
Features a plug-in terminal type for easy installation. Compact dimensions measuring 29mm length x 15mm height x 12.7mm width. Operates reliably in temperatures from -40°C to 85°C. Silver alloy contacts ensure durability and excellent conductivity.
Red status indicator for clear operational monitoring. Designed for general purpose use in industrial and automation relays. Complies with RoHS standards for environmental safety. Switching power rated at 4kVA and switching AC voltage up to 250V AC.
This power relay is widely used in electrical and electronic equipment, industrial automation systems, and control circuits requiring dependable switching solutions. It supports efficient and stable electrical performance with a switching current capacity rated up to 8A.
Explore similar high-quality Power Relays and other control components at EnvMart to meet your industrial automation and electrical control needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The WAGO DIN Rail Power Relay has a switching current capacity rated at 8A.
This relay operates with a coil voltage of 24V DC.
The relay measures 29mm in length, 15mm in height, and 12.7mm in width.
It features a Double Pole Double Throw (DPDT) contact configuration.
The maximum switching AC voltage for this relay is 250V AC.
The contacts are made of silver alloy, providing excellent conductivity.
It operates reliably in temperatures ranging from -40°C to 85°C.
This relay is designed for DIN rail mounting, facilitating easy installation.
Yes, it complies with RoHS standards for environmental safety.
It includes a built-in red status indicator for clear operational monitoring.
The switching power is rated at 4kVA.
This relay is suitable for general purpose use in industrial and automation applications.
