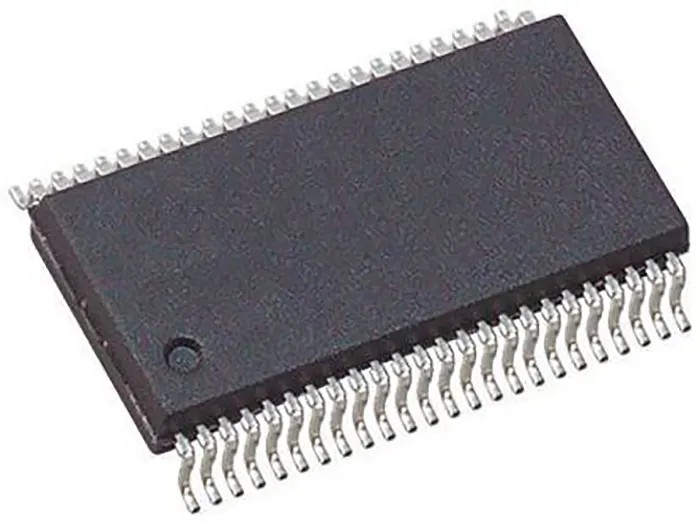

Texas Instruments 16-Bit Non-Inverting TTL Bus Transceiver, 48-Pin SSOP SN74ABT16245ADL

Free Delivery in India | Lowest Global Shipping Charges

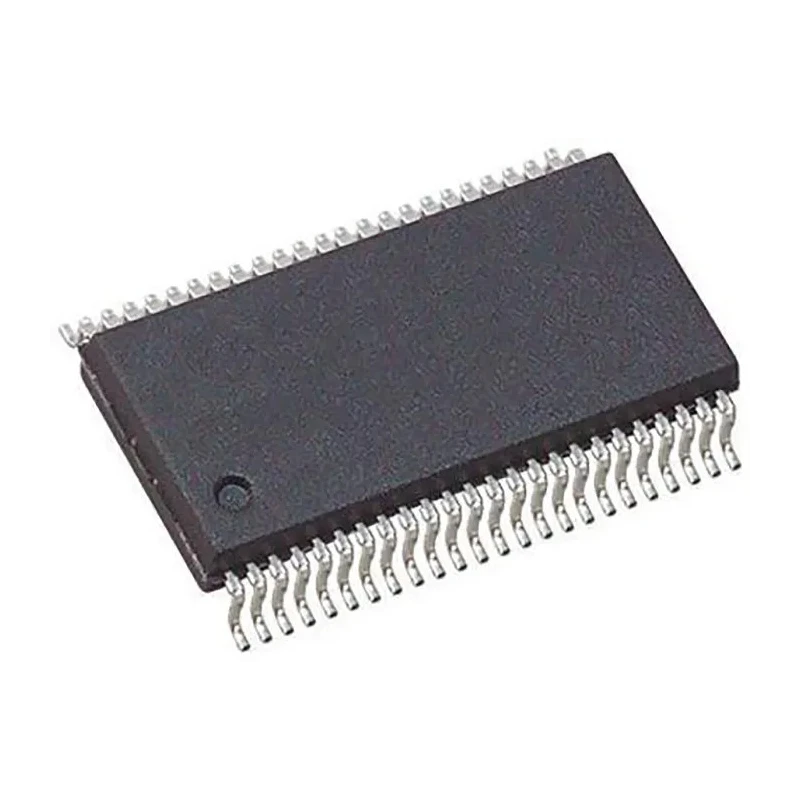

Texas Instruments 16-Bit Non-Inverting TTL Bus Transceiver, 48-Pin SSOP SN74ABT16245ADL

Name: Texas Instruments 16-Bit Non-Inverting TTL Bus Transceiver, 48-Pin SSOP SN74ABT16245ADL
Brand: Texas Instruments
SKU: 203529
Price: 2.56 USD
Availability: InStock



Category Bus Transceivers Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	2.59mm
Length	15.88mm
Model	SN74ABT16245ADL
Mount Type	Surface
Compatibility	Input LVTTL/TTL, Output TTL
Output type	3 State
Series	SN74ABT16245
Maximum Operating Temperature	85°C
Package Type	SSOP
Minimum Operating Temperature	-40°C
Polarity	Non-Inverting
Number Of Channels	16
Pin Count	48
Maximum Supply Voltage	5.5V
Logic Family	ABT
Logic Function	Bus Transceiver
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-32mA
Maximum Propagation Delay Time @ CL	4.6ns
Maximum Low Level Output Current	64mA
Output Level	TTL
Input Level	TTL

Key Features

Operates over a supply voltage range from 4.5V to 5.5V ensuring stable performance.
Features 16 channels with non-inverting logic for accurate signal transmission.
Employs advanced BiCMOS logic technology for high speed and low power consumption.
Compatible with input LVTTL/TTL logic levels and outputs TTL levels.
Offers a maximum propagation delay time of 4.6ns for quick data transfer.
Operates within a temperature range from -40°C to 85°C, suitable for industrial environments.
Comes in a space-saving 48-pin SSOP surface mount package.
Supports a 3-state output type for versatile bus control.

Product Description

Texas Instruments SN74ABT16245ADL is a 16-bit non-inverting bus transceiver designed to provide reliable data transmission in digital electronic circuits. It employs the 74ABT logic family using advanced BiCMOS technology, which combines the speed of bipolar transistors with the low power consumption of CMOS devices. The transceiver supports supply voltages from 4.5V to 5.5V and is compatible with LVTTL and TTL input logic levels, while outputting TTL levels.

This device has 16 individual channels, each providing non-inverting logic functionality, making it ideal for bus communication applications in industrial and commercial electronics. The maximum propagation delay time is 4.6 nanoseconds at a capacitive load, ensuring high-speed data transfer with minimal latency.

Suitable for harsh environments, the SN74ABT16245ADL functions reliably across a wide temperature range from minus 40 degrees Celsius to 85 degrees Celsius. Its 3-state output type enables versatile bus management and reduced power dissipation when outputs are not active. The component is packaged in a slim 48-pin SSOP surface mount form factor that facilitates compact PCB layout and automated assembly.

Advanced BiCMOS logic ensures high-speed operation and low power use. Wide voltage supply tolerance enhances circuit robustness. Supports 16 channels with non-inverting TTL-compatible inputs and outputs. 3-state output capability improves control in shared bus systems.

Compact 48-pin SSOP package suitable for surface mount technology. Operating temperature suitability from -40°C to 85°C for industrial applications.

This bus transceiver is suitable for applications in industrial controls, communication infrastructure, digital instrumentation, and embedded system designs requiring fast and accurate data bus handling. Its compliance with TTL logic levels and extended operating conditions makes it a versatile and reliable choice for digital system designers.

Explore our wide range of semiconductor products and components to find parts tailored to your industrial and electronics design needs at EnvMart.

Explore more products in our Bus Transceivers category.
