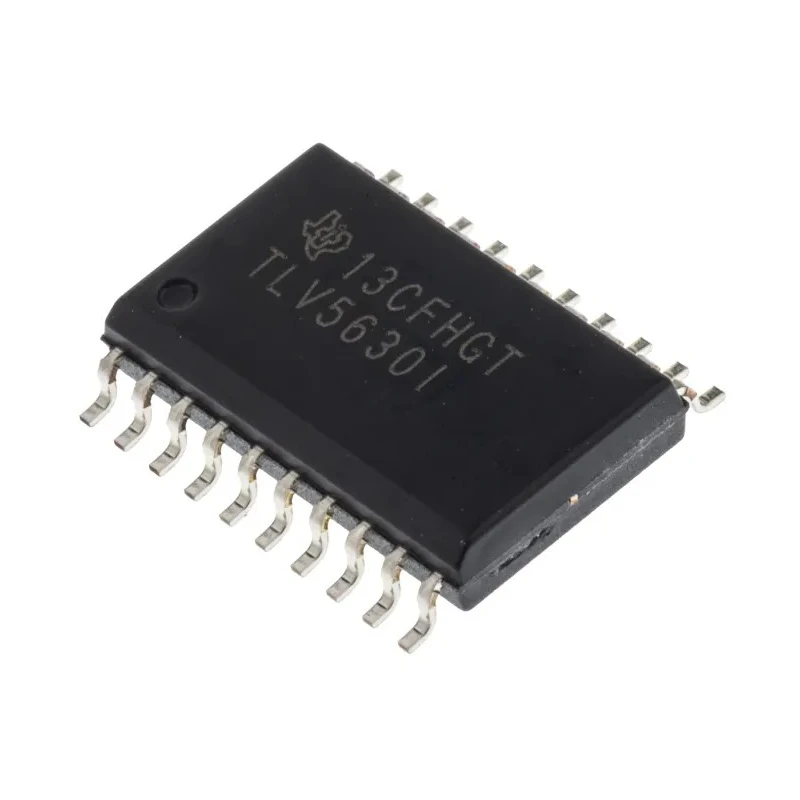

Texas Instruments 12-bit 8-Channel Digital to Analogue Converter 3V-5.5V Surface Mount SOIC TLV5630IDW
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Texas Instruments |
| Height | 2.6mm |
| Length | 13mm |
| Model | TLV5630IDW |
| Width | 7.6mm |
| Mount Type | Surface |
| Settling Time | 7μs |
| Sampling rate | 283ksps |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 8 |
| Interface Type | Microwire, QSPI, SPI |
| Architecture | Resistor String |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
Key Features
- Resistor string architecture ensures precise 12-bit digital to analogue conversion.
- Supports 8 output channels suitable for multi-channel applications.
- Surface mount package type for easy PCB integration.
- Wide operating voltage from 3V to 5.5V for flexible power supply options.
- Fast settling time of 7 microseconds for rapid signal conversion.
- Compatible with Microwire, QSPI, and SPI communication protocols.
- Operating temperature range from -40°C to +85°C supports harsh environments.
- Compact 20-pin SOIC package measuring 13mm length, 7.6mm width, and 2.6mm height.
Product Description
Texas Instruments TLV5630IDW is a 12-bit digital to analogue converter designed for precision analogue voltage output in multi-channel systems. This 8-channel DAC features a resistor string architecture, delivering accurate and reliable conversion performance at a sampling rate of 283 ksps.
The device supports standard serial interfaces including Microwire, QSPI, and SPI, providing flexible connectivity for various digital systems. Its wide supply voltage range from 3V to 5.5V allows operation in diverse electronic applications. With a fast settling time of 7 microseconds, the TLV5630IDW enables rapid signal processing.
The surface mount 20-pin SOIC package offers a compact footprint of 13mm x 7.6mm x 2.6mm, making it suitable for high-density circuit boards. It operates reliably across a temperature range of -40°C to +85°C, ensuring functionality in industrial and commercial electronic environments.
This DAC is ideal for use in laboratory instruments, industrial control, data acquisition systems, instrumentation, and other precision analogue signal generation applications. The analogue voltage output type ensures compatibility with a wide variety of downstream electronic systems.
Resistor string architecture ensures precise 12-bit conversion. 8 output channels adaptable for complex system designs. Surface mount SOIC package facilitates easy PCB assembly. Wide 3V to 5.5V supply voltage range enhances design flexibility.
7-microsecond settling time for fast response. Compatible with Microwire, QSPI, and SPI interfaces. Wide operating temperature supports industrial use. Compact dimensions suitable for space-constrained circuits. Discover more electronic components and Digital to Analogue Converters like the TLV5630IDW in the Electronics & Electricals category at EnvMart.
