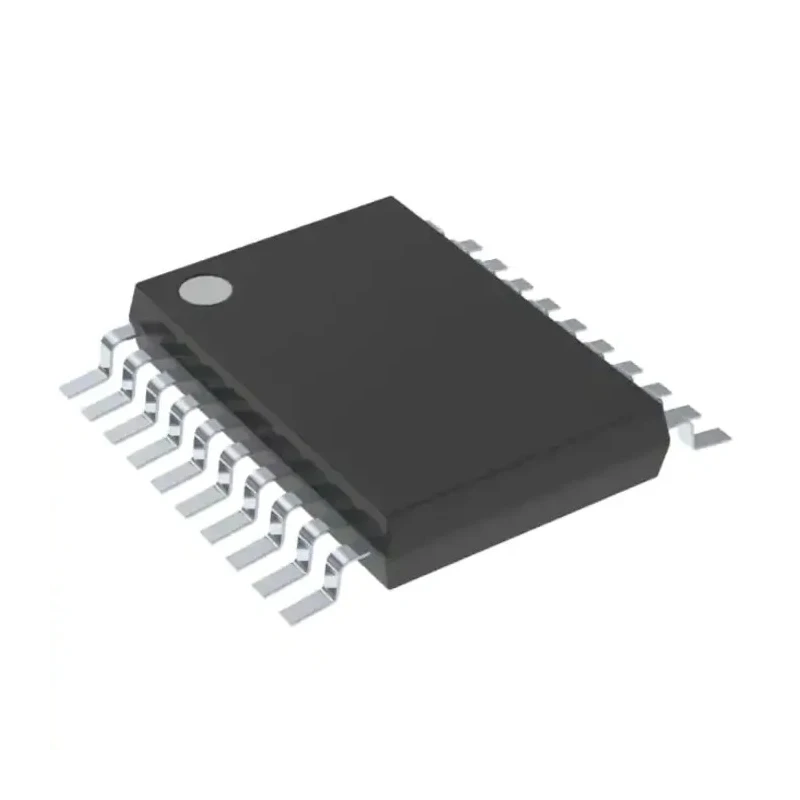

Microchip Digital to Analogue Converter 12 bit 4-Channel SPI Interface 20-Pin TSSOP MCP48FEB24-20E/ST
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 12 bit |
| Brand | Microchip |
| Height | 1.2mm |
| Length | 4.5mm |
| Model | MCP48FEB24-20E/ST |
| Width | 3.1mm |
| Settling Time | 7.8μs |
| Output type | Analogue Voltage |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Interface Type | SPI |
| Architecture | Resistor Ladder |
| Pin Count | 20 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 2.7V |
Key Features
- Features 12-bit resolution for precise analog voltage output.
- Includes 4 independent output channels.
- Operates with SPI compatible interface for easy digital communication.
- Supports minimum supply voltage of 2.7V and maximum supply voltage of 5.5V.
- Compact 20-pin TSSOP package measuring 4.5mm x 3.1mm x 1.2mm (LxWxH).
- Offers fast settling time of 7.8 microseconds for rapid response.
- Designed for use within operating temperatures from -40°C to 125°C.
- Buffered voltage output ensures stable analog signal delivery.
Product Description
Microchip MCP48FEB24-20E/ST is a 12-bit, 4-channel Digital to Analogue Converter (DAC) with SPI compatible interface housed in a 20-pin TSSOP package. It utilizes a resistor ladder architecture to deliver buffered analog voltage outputs with high precision and stability.
This DAC operates across a wide supply voltage range from 2.7V to 5.5V, making it suitable for various power environments. Its fast settling time of 7.8 microseconds enables quick signal transitions essential for real-time signal processing and control.
The device supports operating temperatures from -40°C to 125°C, which allows it to perform reliably in harsh industrial and laboratory settings. The compact physical dimensions of 4.5mm length, 3.1mm width, and 1.2mm height conserve PCB space and integrate well into dense circuit designs.
Featuring 4 independent channels, the MCP48FEB24-20E/ST allows simultaneous conversion of multiple digital signals into accurate analog voltages, ideal for instrumentation, control systems, and embedded applications.
This model does not carry automotive or special industry certifications, but its robust design fits well in a variety of electronic engineering projects where high-resolution voltage DACs are required.
Features 12-bit resolution for precise analog voltage output. Includes 4 independent output channels. Operates with SPI compatible interface for easy digital communication. Supports minimum supply voltage of 2.7V and maximum supply voltage of 5.5V.
Compact 20-pin TSSOP package measuring 4.5mm x 3.1mm x 1.2mm (LxWxH). Offers fast settling time of 7.8 microseconds for rapid response. Designed for use within operating temperatures from -40°C to 125°C. Buffered voltage output ensures stable analog signal delivery.
Non-automotive standard device without specific certifications. Suitable for industrial and laboratory electronic applications requiring high resolution D/A conversion. Explore more Digital to Analogue Converters and semiconductor components within the Electronics & Electricals category on EnvMart for comprehensive solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP48FEB24-20E/ST features a resolution of 12 bits, allowing for precise analog voltage output.
This model includes 4 independent output channels for simultaneous conversion of multiple digital signals into analog voltages.
It operates with a minimum supply voltage of 2.7V and a maximum supply voltage of 5.5V.
The settling time for this digital to analogue converter is 7.8 microseconds, enabling rapid signal transitions.
It operates with an SPI compatible interface for easy digital communication.
This unit has a compact 20-pin TSSOP package measuring 4.5mm in length, 3.1mm in width, and 1.2mm in height.
The device is designed to operate within a temperature range of -40°C to 125°C.
It provides buffered analog voltage outputs, ensuring stable signal delivery.
This model utilizes a resistor ladder architecture to deliver high precision and stability in its output.
Yes, it is suitable for industrial and laboratory electronic applications requiring high-resolution D/A conversion.
The MCP48FEB24-20E/ST has a total of 20 pins.
The country of origin for this model is India.
