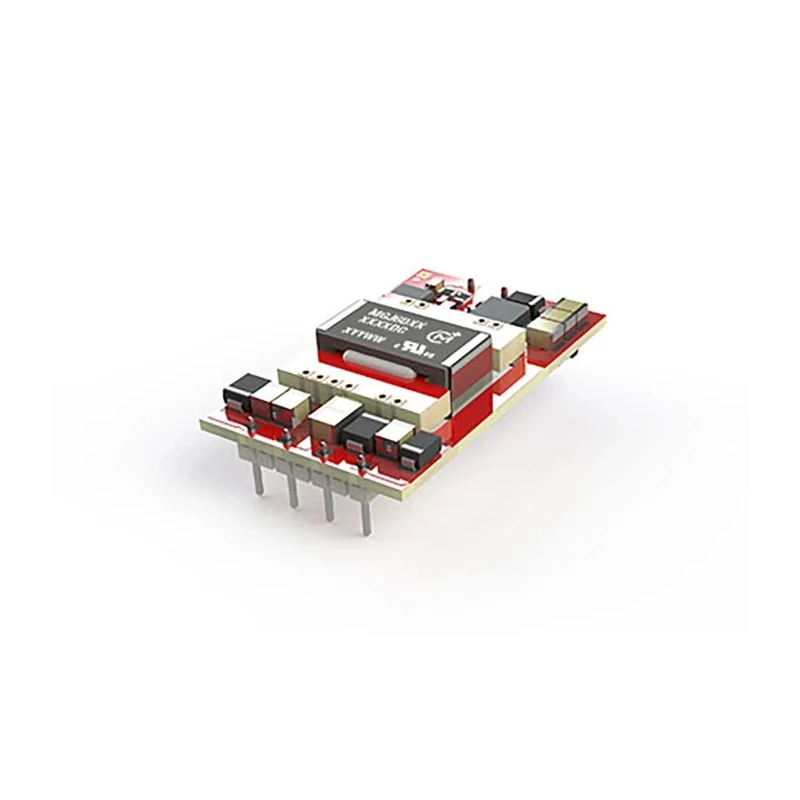

Murata Power Solutions DC/DC Converter , 15V DC Output, 300mA, 18-36V DC Input, 4.5W, PCB Mount, DIP Package, 105°C Max MGJ6

Murata Power Solutions MGJ6D241505DC is a highly reliable DC/DC converter designed for industrial electronic applications requiring isolated and efficient power conversion. This converter outputs a nominal 15 volts DC at 300 milliamps and operates over a wide input voltage range of 18 to 36 volts DC, making it suitable for various system voltages. Its compact surface-mount DIP package allows easy integration onto printed circuit boards while maintaining durability.

The MGJ6 series converter delivers a maximum output power of 4.5 watts with an impressive efficiency of 82 percent, minimizing energy loss in power-sensitive applications. The device features dual outputs, including a -5V DC secondary output for optimized gate drive control of IGBT and MOSFET transistors in bridge circuits, ensuring effective high-side and low-side drive levels.

Designed for harsh industrial environments, the converter provides an isolation voltage rating of 5.7 kV DC and a continuous barrier withstand voltage of 3 kV DC, making it ideal for motor drives, inverters, and other power electronics where high isolation is critical. The device operates reliably across a temperature range from -40°C to 105°C, supporting extended service life under demanding conditions.

The ripple and noise performance is tightly controlled to 150mV peak-to-peak, preserving signal integrity in sensitive circuits. Its dimensions of 45.47 mm length, 27.81 mm width, and 9.88 mm depth enable compact device architecture without compromising performance.

15V DC output voltage at 300mA current capacity. Wide input voltage range: 18V to 36V DC. Maximum output power of 4.5 watts. PCB mount DIP package for easy board integration. 5.7 kV DC isolation voltage for safety in industrial setups.

Operating temperature range from -40°C to 105°C. 82% efficiency for energy-saving operation. 150mV peak-to-peak ripple and noise specification. Compact dimensions suited for space-constrained applications. Compliant with ANSI, EN, RoHS, and UL standards.

This Murata MGJ6 series DC/DC converter is suitable for industrial, manufacturing, HVAC, and power supply applications requiring robust and isolated voltage conversion. It enables reliable powering of gate drivers for semiconductor devices in motor controllers and inverters. The product ensures long service life and system efficiency improvements, backed by Murata’s quality manufacturing standards.
