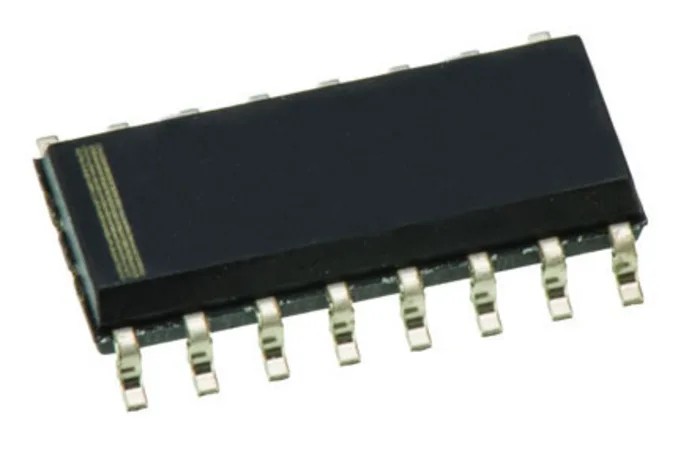

Texas Instruments Digital to Analogue Converter 8 bit, Parallel Interface, 10 Msps, 16-Pin SOIC TLC7524CDR
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Texas Instruments |
| Height | 1.7mm |
| Length | 8.7mm |
| Model | TLC7524CDR |
| Width | 4mm |
| Mount Type | Surface |
| Settling Time | 0.1μs |
| Sampling rate | 10Msps |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Number Of Channels | 1 |
| Interface Type | Parallel |
| Architecture | Resistor String, R-2R |
| Pin Count | 16 |
| Maximum Supply Voltage | 16.5V |
| Minimum Supply Voltage | 15V |
Key Features
- Utilizes resistor string, R-2R architecture for precise digital to analog conversion.
- Operates with a minimum supply voltage of 15V and maximum of 16.5V.
- Comes in a 16-pin SOIC surface mount package suitable for compact PCB design.
- Supporting a single channel with parallel interface to maximize data throughput.
- Offers a settling time of 0.1 microseconds ensuring fast signal stabilization.
- Operates reliably from 0°C up to 70°C ambient temperature.
- Requires an external voltage reference for accurate DAC output.
- Meets no specific automotive or industrial standard approvals, focusing on general electronic applications.
Product Description
Texas Instruments TLC7524CDR Digital to Analogue Converter (DAC) is an 8-bit, single channel device designed to convert digital signals into analog voltages effectively and efficiently. Featuring a parallel interface and resistor string R-2R architecture, this DAC is ideal for high-speed data acquisition systems, waveform generation, and signal processing in industrial and electronic components applications.
This DAC supports a high sampling rate of 10 Msps, enabling rapid digital-to-analog conversion suitable for laboratory, manufacturing, and instrumentation environments. Packaged in a 16-pin SOIC surface mount type, the compact physical dimensions of 8.7 mm length, 4 mm width, and 1.7 mm height make it ideal for integration into space-constrained printed circuit boards.
The device operates within a supply voltage range of 15 V to 16.5 V and requires an external voltage reference, providing flexibility to meet diverse system design requirements. The DAC features a settling time of 0.1 microseconds, facilitating quick response and precision control in demanding industrial automation and electronic systems.
It functions reliably over a temperature range of 0°C to 70°C, and while it does not carry specific automotive or industrial standard approvals, it serves well in general electronic equipment, laboratory instruments, and electronic measurement systems.
Utilizes resistor string, R-2R architecture for accurate digital-to-analog conversion. Single channel output with a parallel interface supports high data throughput. 16-pin SOIC package ensures compatibility with modern PCB assembly methods.
Compact size provides easy incorporation into constrained application spaces. High sampling rate of 10 Msps suits fast conversion requirements. Settling time of 0.1 microseconds ensures precision signal output stabilization.
Operating temperature range from 0°C to 70°C supports various working environments. External voltage reference allows customizable voltage scaling.
This DAC is suited for industrial electronics, laboratory instrumentation, data acquisition systems, and embedded electronics projects where precise and reliable digital to analog conversion is critical. Explore EnvMart’s catalog for comprehensive semiconductor solutions and supporting components to optimize your electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum sampling rate of this model is 10 Msps, allowing for rapid digital-to-analog conversion.
The resolution of this DAC is 8 bits, which determines the granularity of the output analog signal.
It operates reliably within a temperature range of 0°C to 70°C.
This model utilizes a parallel interface, which helps maximize data throughput.
The settling time for this digital to analogue converter is 0.1 microseconds, ensuring fast signal stabilization.
The package dimensions are 8.7 mm in length, 4 mm in width, and 1.7 mm in height, making it suitable for compact PCB designs.
It operates with a minimum supply voltage of 15V and a maximum of 16.5V.
This model supports a single channel output, which is typical for many applications requiring digital to analog conversion.
It utilizes a resistor string, R-2R architecture for precise digital to analog conversion.
Yes, it requires an external voltage reference for accurate DAC output.
This model is designed for surface mounting, which is suitable for modern PCB assembly methods.
It is suited for industrial electronics, laboratory instrumentation, data acquisition systems, and embedded electronics projects.
