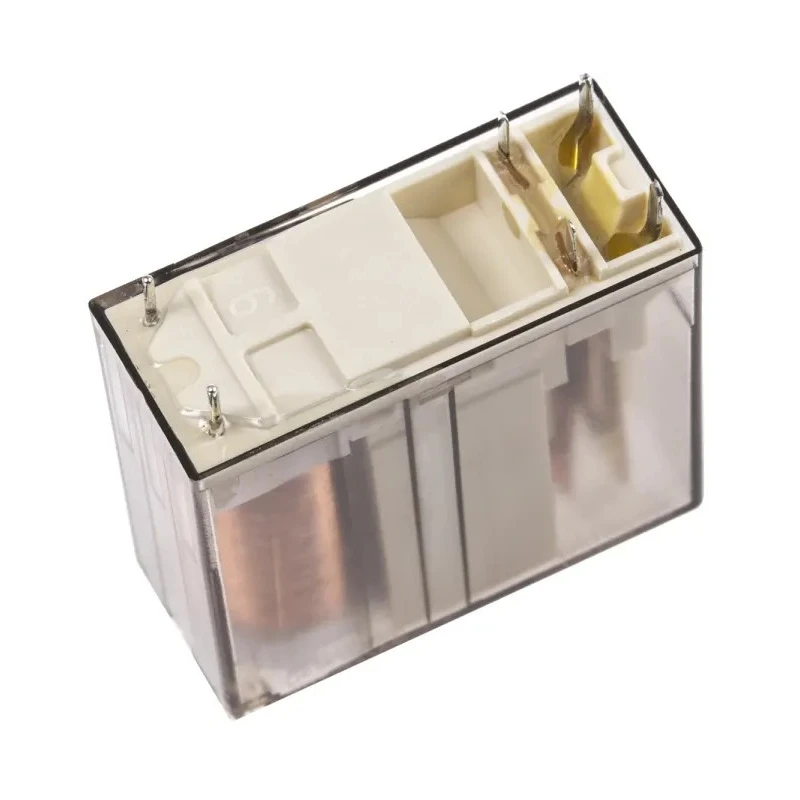

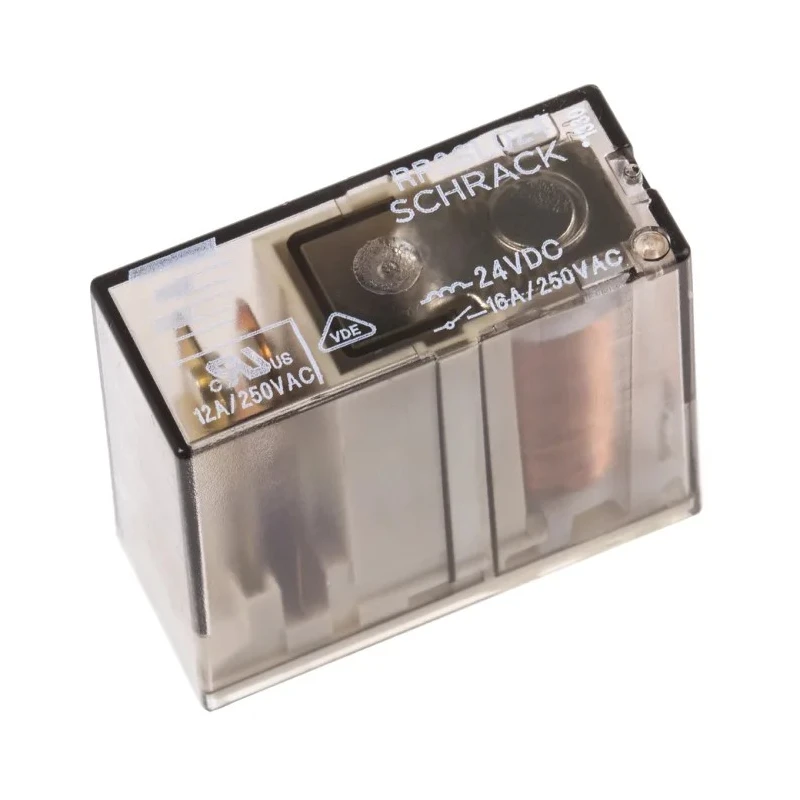

TE Connectivity PCB Non-Latching Relay, 24V DC Coil, 16A Switching Current, SPST RP3SL024
Specifications
| Country of Origin | Czech Republic |
|---|---|
| Brand | TE Connectivity |
| Height | 25.5mm |
| Operating Temperature Range | -40 to +70°C |
| Length | 29mm |
| Model | RP3SL024 |
| Width | 12.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | MY4 |
| Maximum Operating Temperature | 70°C |
| Contact Configuration | SPST |
| Minimum Operating Temperature | -40°C |
| Switching Current | 16A |
| Terminal type | Solder |
| Contact Resistance | 50mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 1.1kΩ |
| Coil Voltage | 24V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 500 mW |
| Isolation Coil To Contact | 4000Vac |
| Creepage & clearance | 8 mm |
Key Features
- Coil voltage rated at 24V DC ensuring consistent operation.
- Single Pole Single Throw (SPST) contact configuration for straightforward switching tasks.
- Supports switching current up to 16A suitable for power relay applications.
- Compact dimensions of 29mm length, 25.5mm height, and 12.6mm width for easy PCB integration.
- Constructed with silver alloy contacts to provide durability and low contact resistance.
- Operates within a temperature range from -40°C to +70°C.
- Coil resistance is 1.1kΩ with coil power consumption of 500 mW.
- Designed with 4000Vac isolation between coil and contact for safety compliance.
Product Description
TE Connectivity RP3SL024 is a PCB Non-Latching Relay engineered for industrial, laboratory, and automation applications requiring reliable and precise switching performance. This relay features a coil voltage of 24V DC and supports a switching current of 16A with an SPST contact configuration, making it suitable for power control on printed circuit boards.
The relay is manufactured with high-quality silver alloy contacts ensuring low contact resistance of 50mΩ and long operational life. It is designed to operate efficiently within a temperature range from -40°C to 70°C, suitable for a variety of environments including indoor electrical automation systems and commercial control panels.
Its compact size with dimensions of 29mm length, 25.5mm height, and 12.6mm width allows easy integration into tight PCB layouts. The coil exhibits a resistance of 1.1kΩ consuming 500 mW power, with isolation between coil and contacts rated at 4000Vac for high safety standards.
With a switching AC voltage rating of 250V and a switching power of 4kVA, this relay handles high loads and transient inrush currents up to 120A for 20ms. The product conforms to RoHS standards and originates from Czech Republic, reflecting quality European manufacturing.
Coil voltage of 24V DC ensures stable coil operation. SPST contact configuration simplifies control circuits. Supports high switching current of 16A for power applications. Compact physical dimensions facilitate PCB mounting.
Silver alloy contacts improve reliability and reduce resistance. Wide operating temperature range from -40°C to 70°C enables diverse application environments. Low coil power of 500 mW reduces energy consumption. 4000Vac isolation between coil and contact enhances safety.
Compliance with RoHS environmental standards. Suitable for lighting control, motor control, timers, and home automation.
This TE Connectivity relay is essential for electronics and electrical projects requiring efficient switching solutions in industrial automation, HVAC systems, manufacturing equipment, and commercial electrical panels. Explore further options within the EnvMart Relays category for detailed product comparison and additional connectivity accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The coil voltage of this relay is rated at 24V DC, ensuring consistent operation during use.
It supports a maximum switching current of 16A, making it suitable for power relay applications.
This relay features a Single Pole Single Throw (SPST) contact configuration, allowing for straightforward switching tasks.
The dimensions of this relay are 29mm in length, 25.5mm in height, and 12.6mm in width, facilitating easy PCB integration.
It operates efficiently within a temperature range from -40°C to +70°C, suitable for various environments.
The relay is constructed with silver alloy contacts, which provide low contact resistance and enhance reliability.
The coil resistance is 1.1kΩ, with a coil power consumption of 500 mW.
This relay has an isolation rating of 4000Vac between the coil and contact, ensuring safety compliance.
The switching AC voltage rating for this relay is 250V, making it suitable for high voltage applications.
This relay is suitable for applications such as lighting control, motor control, timers, and home automation.
The relay features solder terminal types, which are common for PCB mounting.
This relay conforms to RoHS standards, reflecting its compliance with environmental regulations.
