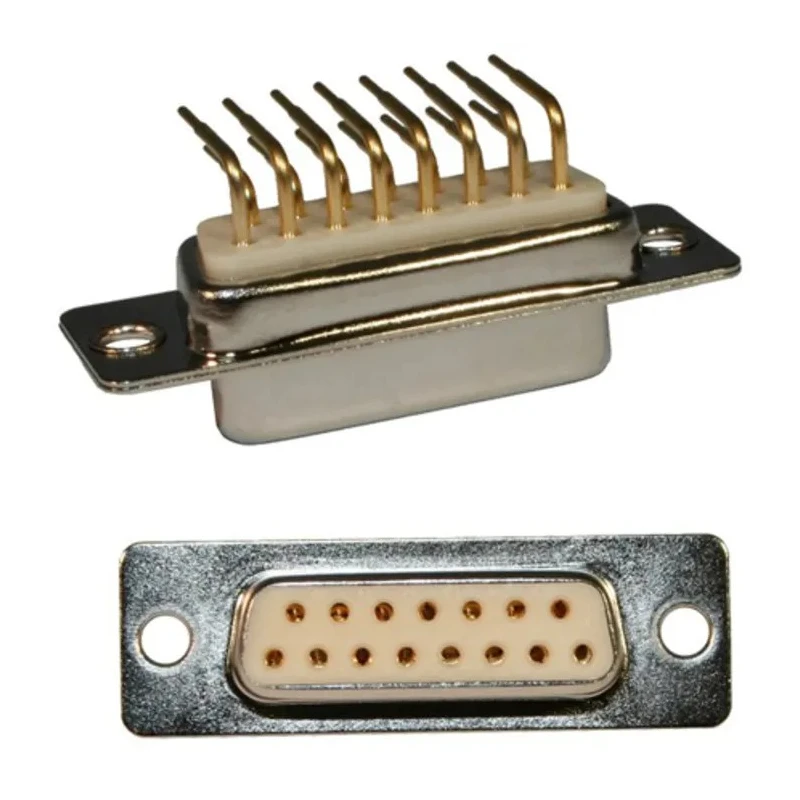

Norcomp SEAL-D 15 Way Right Angle 2.769 mm Pitch D-Sub Connector Male 773-E15-113R001
Specifications
| Country of Origin | United States |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 773-E15-113R001 |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | SEAL-D |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Pitch | 2.769mm |
| Contact Plating | Gold |
| Number of Contacts | 15 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
Key Features
- Features 15 contacts rated for 5A current.
- Right angle orientation for PCB mounting efficiency.
- Robust steel housing with nickel plating provides excellent shielding.
- Gold-plated brass contacts ensure optimal conductivity and corrosion resistance.
- Meets IEC-529-IP67 sealing requirements for dust and water ingress protection.
- Operates reliably from -50°C to 100°C temperature range.
- Designed for solder termination for secure connectivity.
- Compact 2.769 mm pitch standard density connector maintains existing D-Sub footprint.
Product Description
Norcomp 773-E15-113R001 SEAL-D 15 Way Right Angle D-Sub Connector Male is a high-quality, IP67 sealed D-Sub connector engineered for industrial and commercial electronic applications requiring robust environmental protection and electrical performance.
This connector features 15 gold-plated brass contacts capable of carrying up to 5 amperes of current, arranged in a compact 2.769 mm pitch format within a durable nickel-plated steel housing. Its right angle design facilitates efficient PCB mounting, conserving board space without compromising connection reliability.
The SEAL-D series connectors comply with IEC-529-IP67 standards, delivering dust-tight and water ingress protection ideal for harsh conditions including outdoor equipment, industrial control systems, and portable instrumentation. They maintain the classic D-Sub physical profile, enabling seamless retrofit of existing designs without enclosure redesign.
Operating reliably across a temperature range from -50°C to 100°C, this connector is solder terminated to ensure firm mechanical and electrical connection. The housing includes ground indents for enhanced shielding and grounding performance.
15 contacts rated for 5A current. Right angle orientation for PCB mount applications. Nickel plated steel outer shell for superior EMI shielding. Gold plated brass contacts for corrosion resistance and conductivity. IEC-529-IP67 sealing certified for environmental protection.
Temperature range from -50°C up to 100°C operation. Solder termination provides durable electrical connection. Voltage rating of 500V suitable for power and signal circuits. Compact 2.769 mm pitch retains standard D-Sub footprint.
Manufactured in the United States, ensuring quality standards.
This Norcomp SEAL-D connector is well suited for use in rugged industrial environments, medical devices, instrumentation, communication equipment, and other applications requiring a reliable sealed connector solution. The IP67 rating ensures protection against temporary submersion or washdown in outdoor or demanding settings.
Explore related D-Sub Connectors and components in the EnvMart Electronics & Electricals category for comprehensive interconnect solutions with trusted brand quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features 15 contacts rated for a maximum current of 5A.
The voltage rating for this connector is 500V, making it suitable for both power and signal circuits.
It operates reliably within a temperature range of -50°C to 100°C.
This connector is designed for solder termination, ensuring a secure mechanical and electrical connection.
The contacts are arranged in a compact 2.769 mm pitch format.
The housing is made of nickel-plated steel, while the contacts are gold-plated brass for optimal conductivity and corrosion resistance.
This model features a right angle orientation, which facilitates efficient PCB mounting.
Yes, it meets IEC-529-IP67 sealing requirements, providing dust-tight and water ingress protection, making it suitable for outdoor applications.
This D-Sub connector has a total of 15 contacts.
It is manufactured in the United States, ensuring adherence to quality standards.
This model is well suited for industrial environments, medical devices, instrumentation, and communication equipment requiring a reliable sealed connection.
The connector features male contacts, specifically designed for male connector applications.
