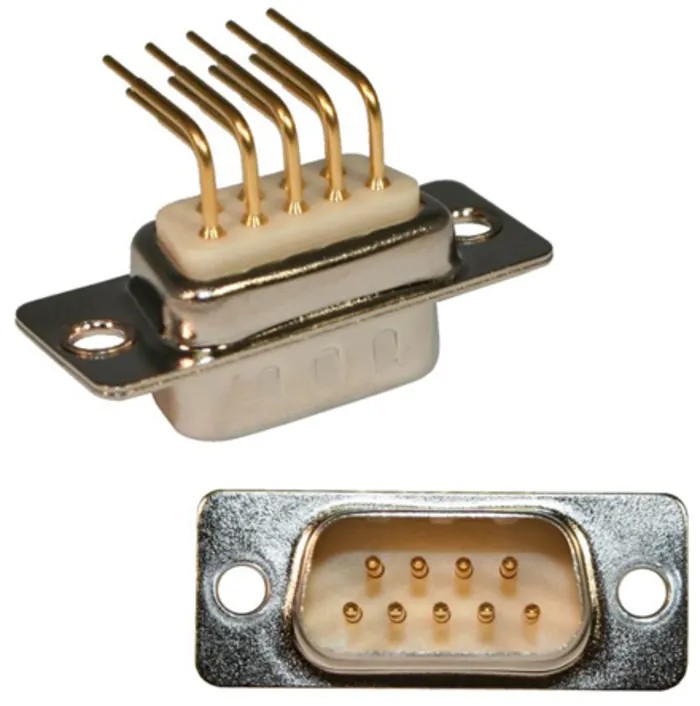

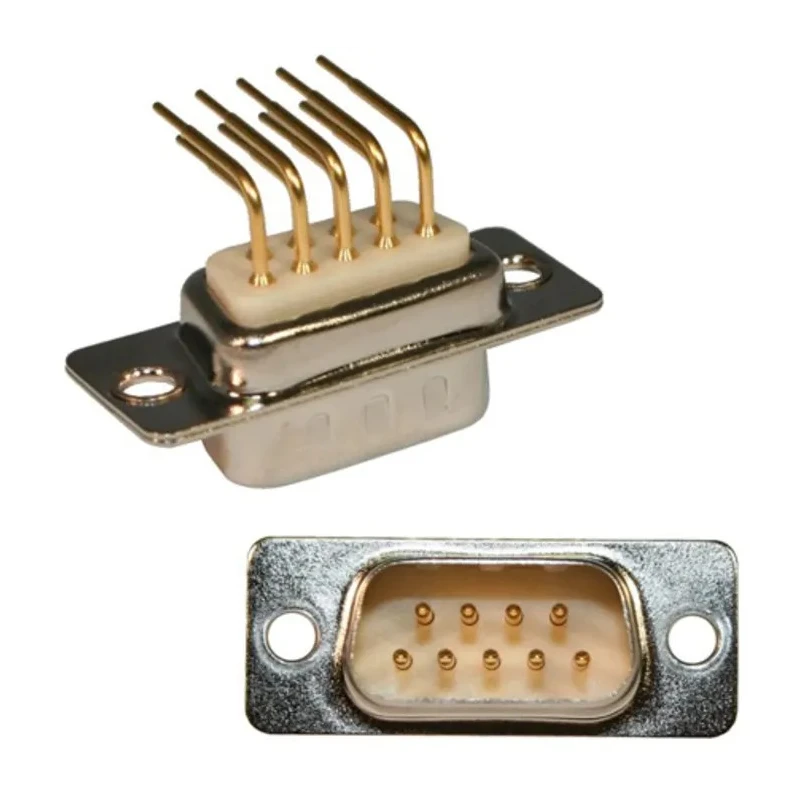

Norcomp SEAL-D 9 Way Right Angle 2.77 mm Pitch D-Sub Connector Male 774-E09-113R001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500V |
| Brand | Norcomp |
| Orientation | Right Angle |
| Current | 5A |
| Model | 774-E09-113R001 |
| Housing Material | Steel |
| Contact Material | Brass |
| Series | SEAL-D |
| Termination Type | Solder |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -50°C |
| Pitch | 2.77mm |
| Contact Plating | Gold |
| Number of Contacts | 9 |
| Contact Gender | Male |
| Connector Gender | Male |
| Connector Type D | Standard |
Key Features
- This connector supports 9 contact points ensuring multi-signal integration.
- The right angle orientation allows for PCB mounting in constrained spaces.
- Constructed with a steel housing for durability and improved shielding.
- Contacts are made of brass with gold plating to ensure excellent conductivity and corrosion resistance.
- Operates safely up to 500V and a current rating of 5A.
- Designed to meet IEC-529-IP67 sealing standards, resistant to harsh environmental conditions.
- Operating temperature range from -50°C to 100°C supports diverse industrial environments.
- Termination is by solder method ensuring secure electrical connections.
Product Description
Norcomp 774-E09-113R001 SEAL-D 9 Way Right Angle 2.77 mm Pitch D-Sub Connector Male is a high-quality, rugged connector designed for industrial, electronic, and medical applications. With a durable steel housing and IP67 sealing, it provides excellent protection against dust and water ingress, making it ideal for harsh operating environments.
This SEAL-D series connector meets IEC-529-IP67 standards and maintains the standard D-sub physical size and footprint, enabling easy upgrades without redesigning existing assemblies. Its right angle orientation is optimized for PCB mounting where space constraints exist.
The connector features 9 gold-plated brass contacts rated for 5A current and 500V, ensuring reliable electrical performance. The solder termination type guarantees secure and long-lasting cable connections. Additionally, the nickel-plated steel shell with ground indents offers improved electromagnetic shielding and grounding.
Designed for challenging conditions, it operates reliably from -50°C to 100°C. Typical applications include handheld computers, data loggers, industrial controls, medical devices, transmitters, and marine electronics. This connector series facilitates integration into outdoor and washdown environments due to its IP67 sealing.
This connector supports 9 contact points ensuring multi-signal integration. The right angle orientation allows for PCB mounting in constrained spaces. Constructed with a steel housing for durability and improved shielding.
Contacts are made of brass with gold plating to ensure excellent conductivity and corrosion resistance. Operates safely up to 500V and a current rating of 5A. Designed to meet IEC-529-IP67 sealing standards, resistant to harsh environmental conditions.
Operating temperature range from -50°C to 100°C supports diverse industrial environments. Termination is by solder method ensuring secure electrical connections. Nickel plated steel shell with ground indents provides enhanced grounding and shielding.
Ideal for use in outdoor equipment, medical devices, industrial machinery, and portable instrumentation. Explore the Norcomp product range in EnvMart's Connectors category for industry-leading electronic and power connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Norcomp SEAL-D 9 Way Right Angle D-Sub Connector has a voltage rating of 500V.
This connector is rated for a current of 5A.
The housing is made of steel, while the contacts are made of brass with gold plating for improved conductivity and corrosion resistance.
It operates reliably within a temperature range of -50°C to 100°C.
This model supports 9 contact points for multi-signal integration.
The termination type for this connector is solder, ensuring secure electrical connections.
It features a right angle orientation, which is optimized for PCB mounting in constrained spaces.
This connector meets the IEC-529-IP67 sealing standards, providing resistance to dust and water ingress.
Typical applications include handheld computers, data loggers, industrial controls, medical devices, transmitters, and marine electronics.
The pitch size of this model is 2.77 mm.
The nickel-plated steel shell with ground indents offers improved electromagnetic shielding and grounding.
The country of origin for this connector is India.
