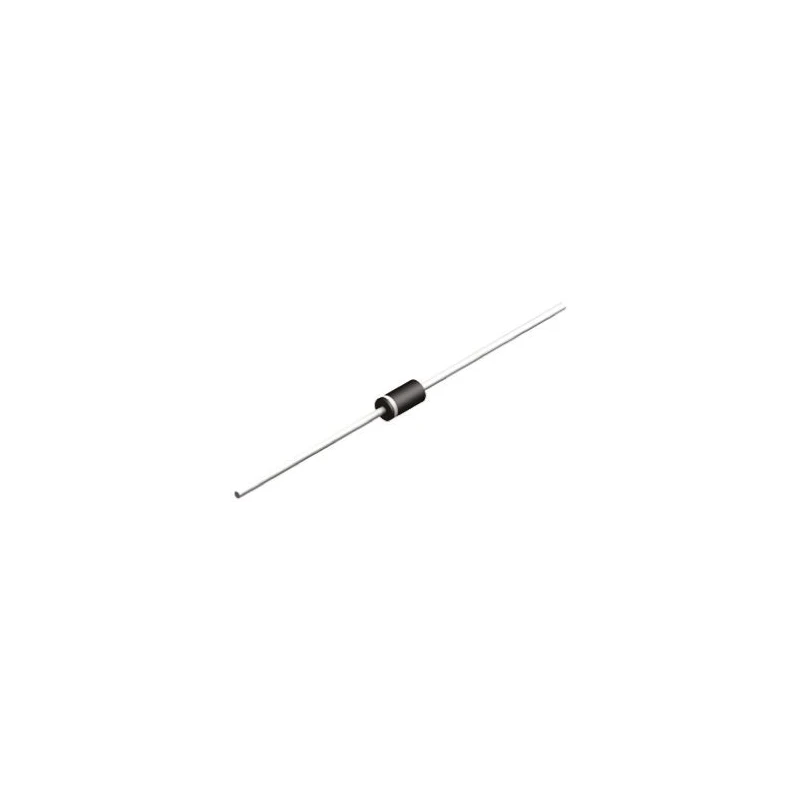

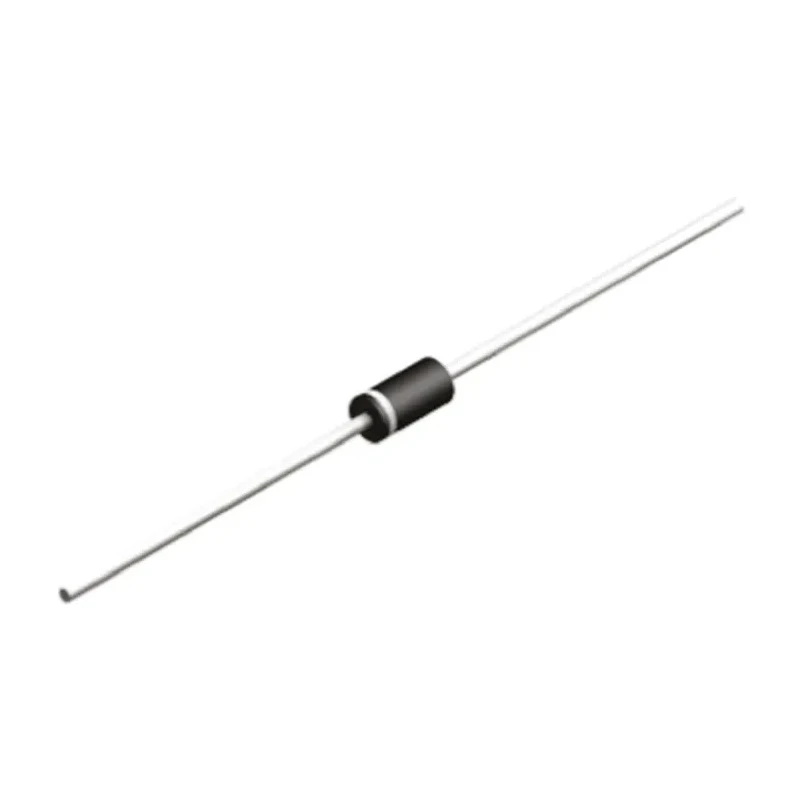

onsemi Zener Diode 3 W 150 V Nominal Voltage Through Hole 2-Pin Case 017AA 1N5953BRLG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5953BRLG |
| Mount Type | Through Hole |
| Series | 1N5913B |
| Maximum Operating Temperature | 200°C |
| Package Type | Case 017AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 3W |
| Diode Configuration | Single |
| Test Current It | 2.5mA |
| Maximum Reverse Leakage Current | 250nA |
| Nominal Zener Voltage Vz | 150V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 600Ω |
Key Features
- The device features a nominal Zener voltage of 150 V and a tight tolerance of ±5%.
- It supports a test current of 2.5 mA ensuring reliable performance in regulating voltage.
- Constructed in Case 017AA, the diode offers a compact height of 2.7 mm and length of 5.2 mm.
- The maximum operating temperature range spans from -65°C to 200°C for versatile industrial applications.
- The maximum reverse leakage current is limited to 250 nA ensuring minimal power loss.
- The Zener impedance is rated at a maximum of 600 Ω contributing to stable voltage regulation.
- Designed without special automotive standard approvals, suited for general electronic applications.
Product Description
The onsemi 1N5953BRLG Zener Diode is a discrete semiconductor device configured as a single-element Zener voltage regulator. It has a nominal Zener voltage rating of 150 V and supports a maximum power dissipation of 3 W. This device is mounted using a through hole configuration with two pins housed in a Case 017AA package featuring a height of 2.7 mm and length of 5.2 mm.
Operating temperatures range from -65°C to 200°C, enabling use in a wide array of industrial and electronic applications including power regulation, voltage reference, and protection circuits.
The diode features a maximum reverse leakage current of 250 nA and a maximum Zener impedance of 600 Ω for precise voltage regulation performance at a test current of 2.5 mA. Onsemi’s 1N5953BRLG is part of the 1N5913B series, widely used in circuits requiring efficient voltage stabilization without automotive certification constraints.
The package and pin configuration simplifies PCB mounting and circuit integration. Single-element construction ensures consistent electrical characteristics. The 3 W power dissipation rating suits moderate power applications.
Wide operating temperature range supports reliability in harsh environments. Compact dimensions facilitate space-efficient designs. Low leakage current enhances energy efficiency. Voltage tolerance of ±5% enables accurate regulation in sensitive circuits.
This Zener diode is suitable for industrial electronics, consumer devices, instrumentation, and power supply design. Its through hole package allows easy manual assembly as well as automated insertion.
Explore a wide range of electronic components and semiconductors at EnvMart, including Zener Diodes by onsemi and other leading manufacturers for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 150 V.
This model has a maximum power dissipation rating of 3 W.
The dimensions of the Case 017AA package are 2.7 mm in height and 5.2 mm in length.
The maximum operating temperature range for this diode spans from -65°C to 200°C.
The test current for this model is 2.5 mA.
The maximum reverse leakage current is limited to 250 nA.
This diode uses a through hole mounting type with a two-pin configuration.
The maximum Zener impedance is rated at 600 Ω.
This model is part of the 1N5913B series.
It is suitable for applications such as power regulation, voltage reference, and protection circuits.
This diode has a single element per chip configuration.
The configuration of this diode is a single-element Zener voltage regulator.
