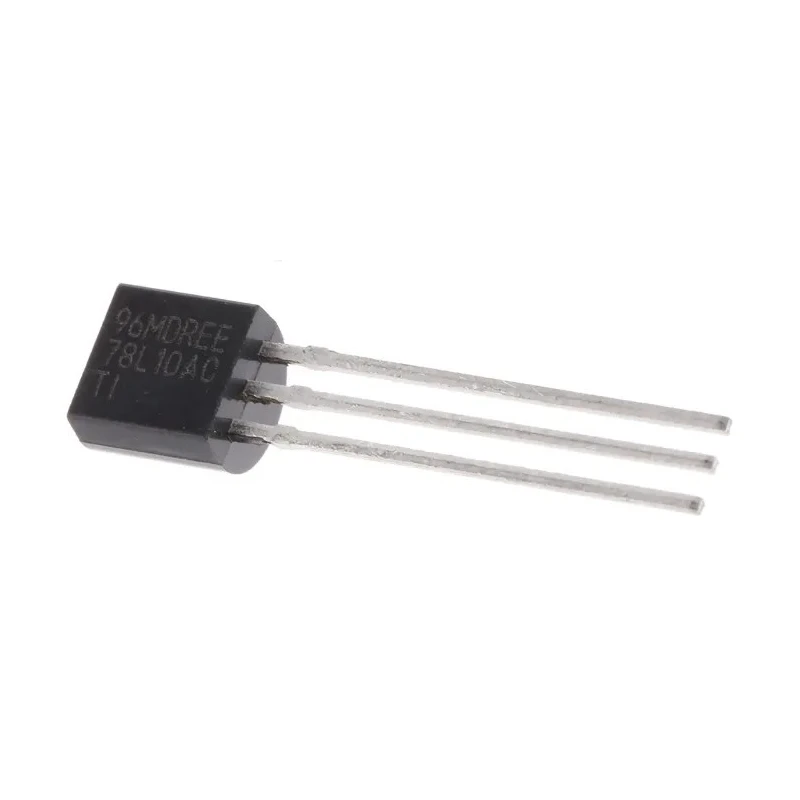

Texas Instruments Linear Voltage Regulator TO-92 25V 3-Pin 3.8mA Quiescent Current UA78L10ACLP
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators Texas Instruments, Voltage Regulator 25V TO-92 3-Pin RS Stock No |
| Brand | Texas Instruments |
| Height | 3.68mm |
| Length | 4.83mm |
| Model | UA78L10ACLP |
| Width | 3.43mm |
| Mount Type | Through Hole |
| Series | UA78Lxx |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-92 |
| Polarity | Positive |
| Maximum Input Voltage | 25V |
| Quiescent Current | 3.8mA |
| Minimum Input Voltage | 12.5V |
| Pin Count | 3 |
Key Features
- Fixed 10V output voltage regulator suitable for telecommunications and computing applications.
- Package type is TO-92 with through-hole mounting and 3-pin configuration.
- Built-in thermal overload shutdown and internal current limiting protect the device during operation.
- Maximum operating temperature of 125°C supports industrial-grade environments.
- Typical quiescent current of 3.8mA ensures low power consumption during operation.
- Output current limit of 0.1A suitable for low power linear regulation needs.
- Widely used in on-card regulation, portable devices, and general power management tasks.
Product Description
Texas Instruments UA78L10ACLP is a high reliability linear voltage regulator designed to provide a fixed positive 10V output voltage with a TO-92 3-pin package. The device supports input voltages ranging between 12.5V minimum to 25V maximum, making it suitable for various electronics and power management applications including telecommunications, computing, and portable device power supplies.
The voltage regulator features internal thermal overload shutdown to prevent device damage under excessive temperature conditions. Internal short-circuit current limiting and output transistor safe-area compensation enhance the robustness and reliability of the regulator. The device's quiescent current is low at 3.8mA which reduces power loss and heat dissipation.
With compact mechanical dimensions (length 4.83mm, width 3.43mm, height 3.68mm) and through-hole mounting, it facilitates easy incorporation into printed circuit boards. Its maximum operating temperature rating of 125°C enables use in industrial environments.
Typical applications include fixed on-card voltage regulation helping to eliminate problems associated with single-point regulation. The 3-pin TO-92 package makes it ideal for designs requiring a simple and effective solution for positive linear voltage regulation up to 0.1A output current.
Fixed 10V output voltage suitable for general electronics power management. Internal thermal overload shutdown protects against thermal damage. Short-circuit current limiting enhances device safety. Compact TO-92 package with 3 pins for through-hole PCB mounting.
Low quiescent current ensures energy efficiency. Wide input voltage range from 12.5V to 25V for flexible designs. Industrial grade max operating temperature of 125°C. Widely used in telecommunications, portable devices, and computing applications.
This Texas Instruments Voltage Regulator is a reliable component for industrial, laboratory, and commercial electronic circuits requiring stable and robust power regulation. Explore more electronic components and power management ICs on EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed positive output voltage of 10V.
The maximum input voltage for the UA78L10ACLP is 25V.
The typical quiescent current for the UA78L10ACLP is 3.8mA, ensuring low power consumption during operation.
It has a maximum operating temperature rating of 125°C, making it suitable for industrial-grade environments.
The output current limit for this voltage regulator is 0.1A, suitable for low power linear regulation needs.
The UA78L10ACLP comes in a TO-92 package with a 3-pin configuration for through-hole mounting.
This model has dimensions of 4.83mm in length, 3.43mm in width, and 3.68mm in height.
It is widely used in telecommunications, computing applications, and portable devices for power management.
The UA78L10ACLP features internal thermal overload shutdown and short-circuit current limiting for enhanced reliability.
It includes built-in thermal overload shutdown to protect the device from damage under excessive temperature conditions.
The minimum input voltage for the UA78L10ACLP is 12.5V.
This voltage regulator has a positive polarity.
