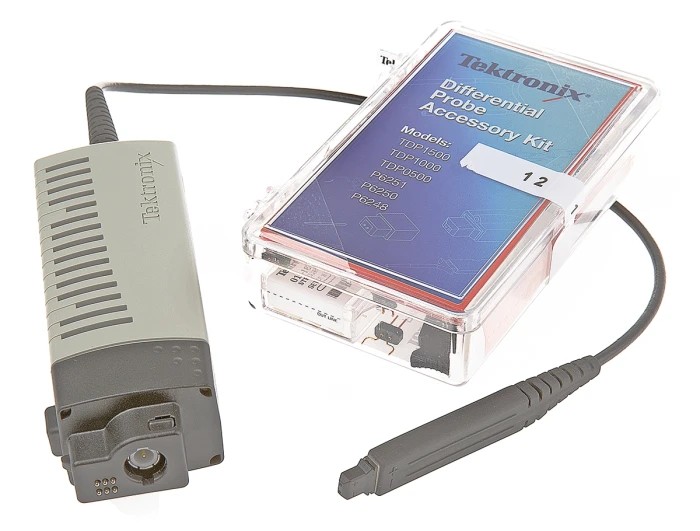

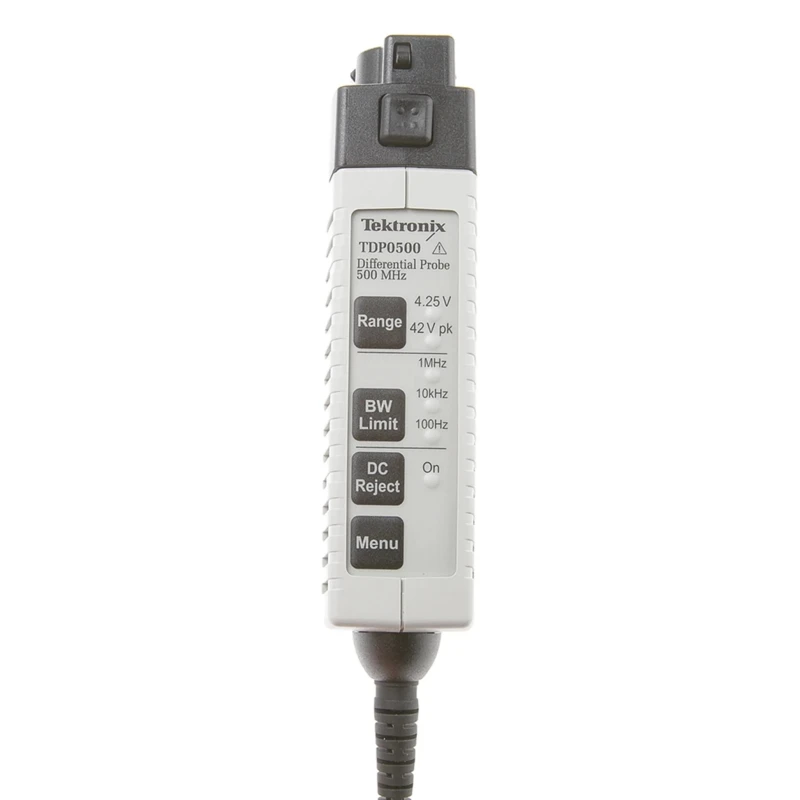

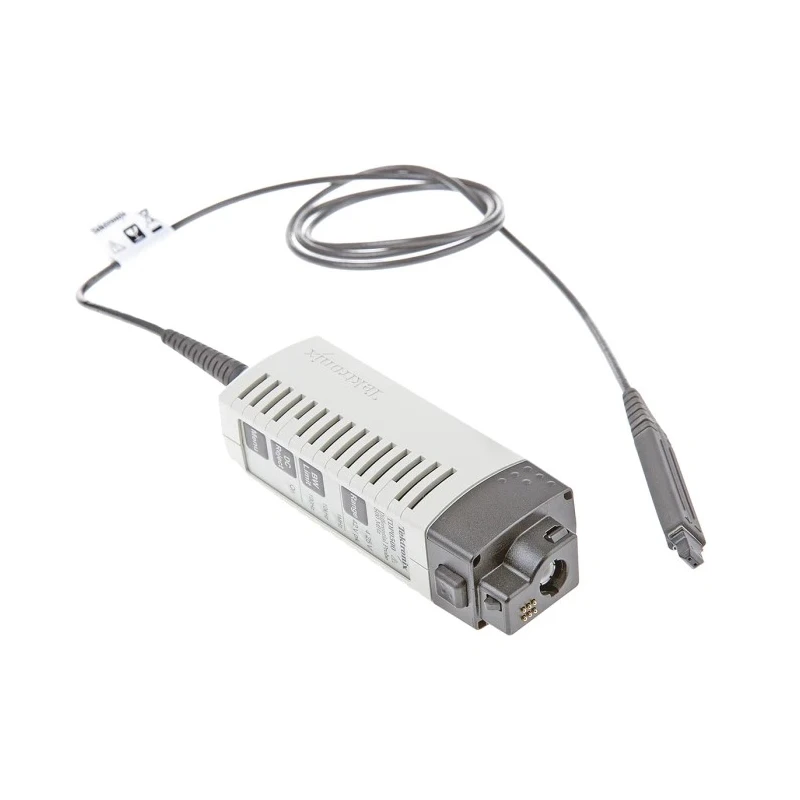

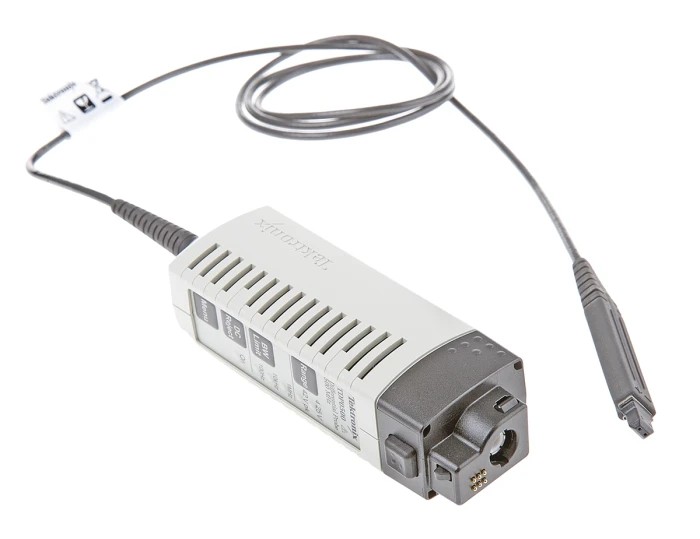

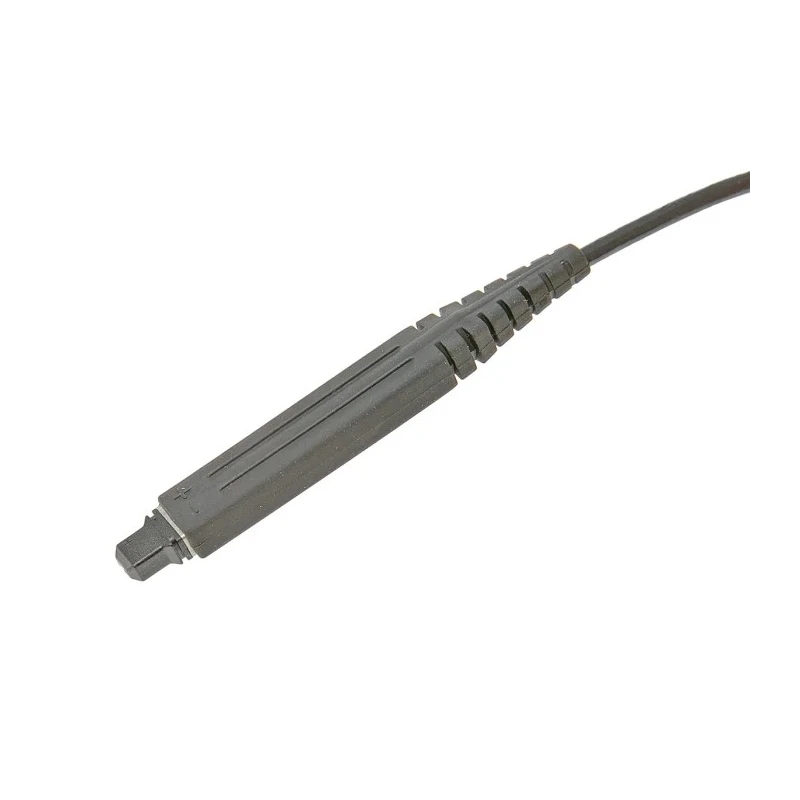

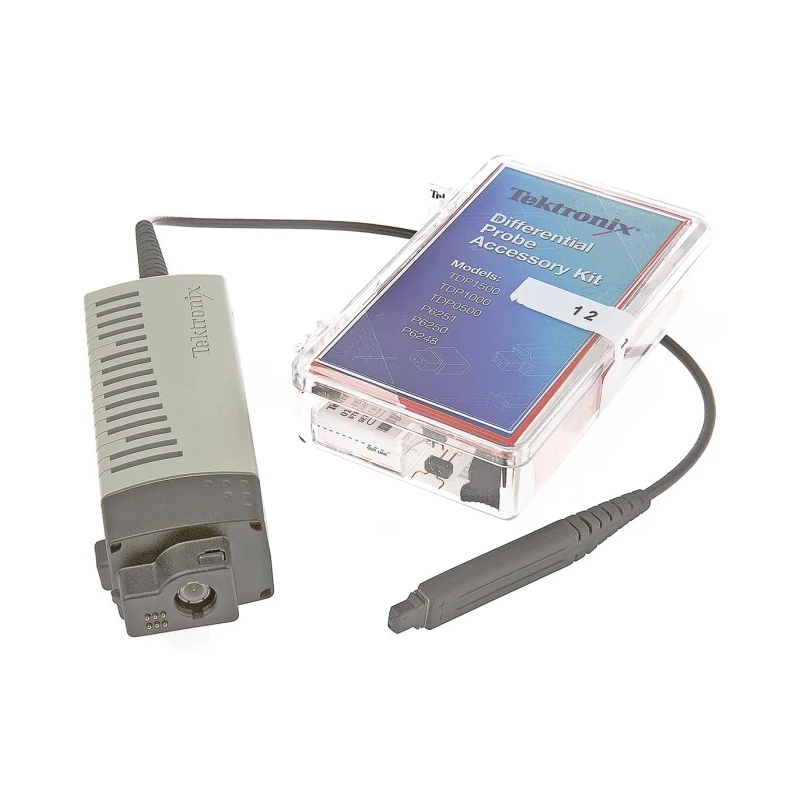

Tektronix High Voltage Differential Oscilloscope Probe 500 MHz Bandwidth, BNC Connector TDP0500

Tektronix TDP0500 is a high voltage differential oscilloscope probe providing exceptional high-speed electrical and mechanical performance essential for advanced testing environments. Its 500 MHz bandwidth capability and 700 ps rise time make it suitable for precision measurements in Switch Mode Power Supply (SMPS) design, CAN/LIN bus analysis, and high-speed digital circuits.

The probe features a differential mode input voltage of ±42 V (DC plus peak AC) and a maximum common mode input voltage of 35 V DC, ensuring reliable signal isolation and measurement accuracy. It supports 50:1 and 5:1 attenuation ratios, allowing flexibility across signal levels. Input impedance is 1 MΩ in parallel with 50 pF.

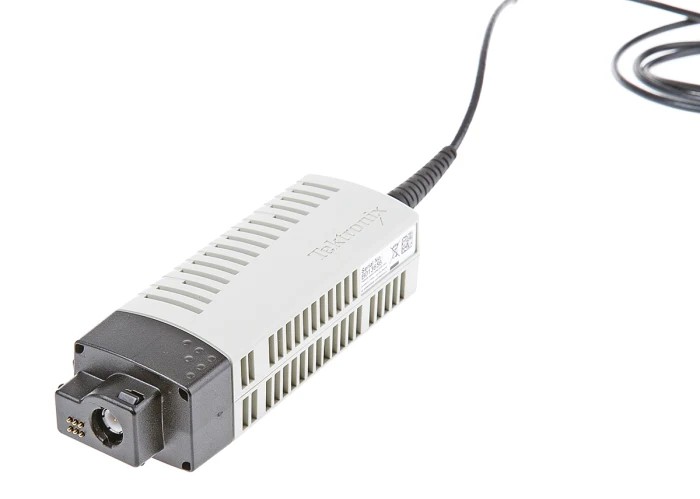

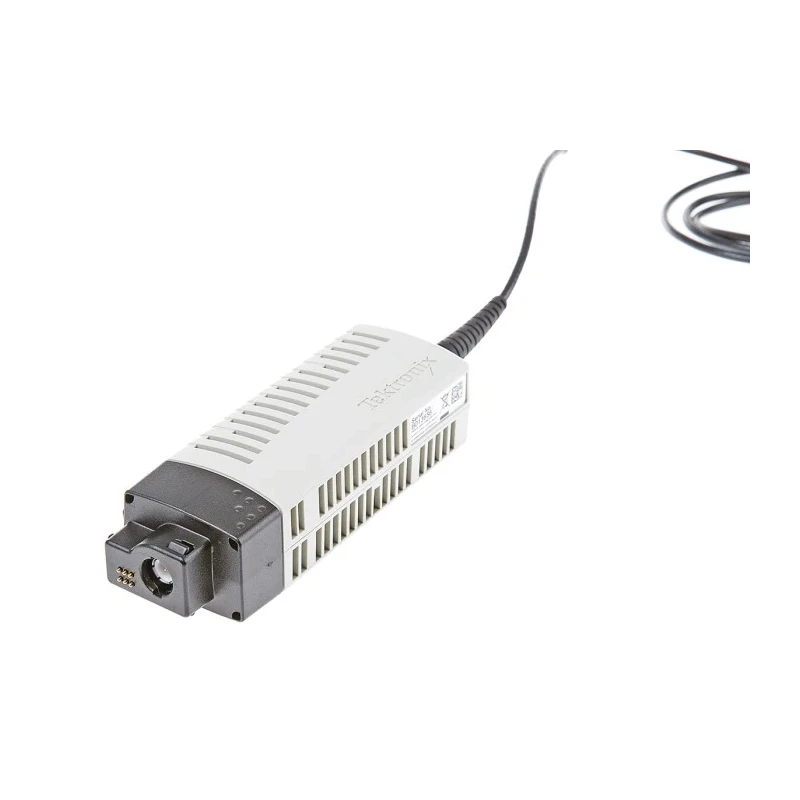

Connectivity is provided through a BNC connector compatible with various Tektronix oscilloscopes, utilizing the TekVPI probe interface. This interface offers seamless access to scope-displayed menus for easy probe configuration and health monitoring, including automatic offset nulling (auto-zero).

Additional features include selectable bandwidth limiting filters and DC reject to optimize measurement fidelity in various testing scenarios. This probe is designed for industrial, laboratory, manufacturing engineering test, and research and development use cases requiring high fidelity and reliable signal acquisition.

Provides differential, high voltage measurements with 50:1/5:1 attenuation ratios. Features a 700 picosecond rise time for precise signal capture. Supports maximum common mode input voltage of 35 V DC for safety and accuracy.

Equipped with BNC connector compatible with Tektronix oscilloscopes. Includes selectable bandwidth limiting filters and DC reject functionality. Offers easy probe setup and status access via TekVPI probe interface. Ideal for switch mode power supply, CAN/LIN bus, digital design, and research applications.
