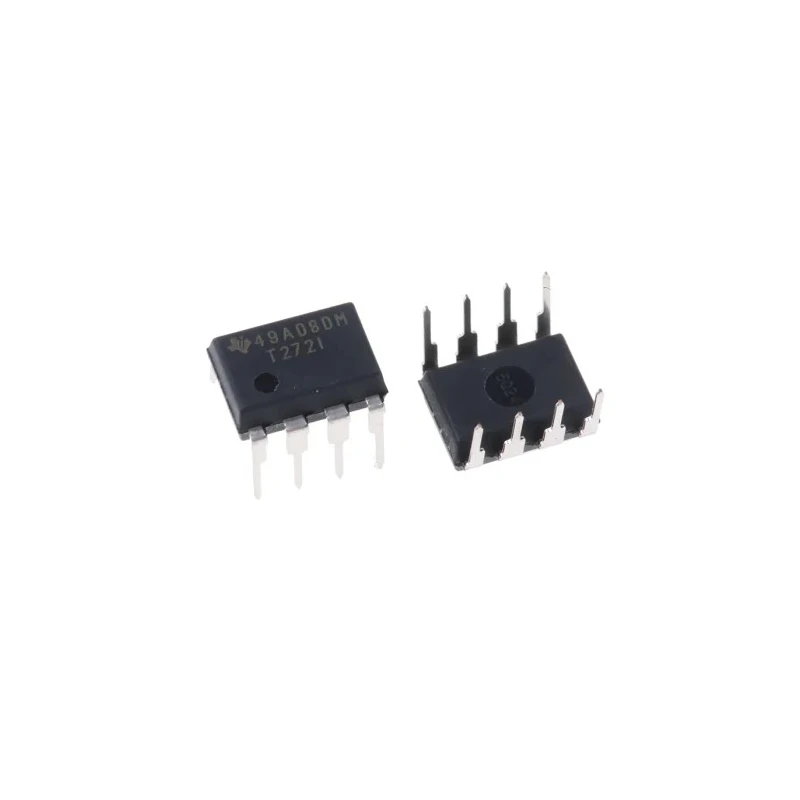

Texas Instruments Operational Amplifier 3 MHz 8-Pin 16V PDIP TLV272IP
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | TLV272IP |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | TLV272 |
| Output Current | 13mA |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 1 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 2.4V/μs |
Key Features
- Through-hole mount type for easy PCB integration.
- Dual channels with 8-pin configuration for versatile applications.
- Low input bias current of 1 nA ensures precise analog performance.
- Input offset voltage of 7 mV with a slew rate of 2.4 V/μs for fast signal processing.
- Operating temperature range from -40°C to 125°C supports robust industrial use.
- Supports maximum output current of 13 mA suitable for standard analog circuits.
- Complies with RoHS and automotive standard AEC-Q100 for quality and reliability.
Product Description
Texas Instruments TLV272IP is a dual-channel Operational Amplifier designed for high-performance analog signal processing with a 3 MHz gain bandwidth. Packaged in an 8-pin PDIP, this device is suitable for through-hole mounting and supports a wide supply voltage range from 5 V to 16 V.
With an exceptionally low input bias current of 1 nA and an input offset voltage of 7 mV, the TLV272IP ensures accurate analog signal amplification. It offers a fast slew rate of 2.4 V/μs enabling quick response to input changes, making it ideal for industrial, laboratory, and automotive electronics applications.
The device operates reliably across a broad temperature range of -40°C to +125°C, meeting automotive-grade standards AEC-Q100 and environmental compliance with RoHS directive. It features a maximum output current of 13 mA to drive a variety of loads.
Through-hole mount type for stable mechanical and electrical connections. Dual channels in an 8-pin PDIP package for efficient multi-signal processing. Low input bias current and offset voltage for precision measurements.
Fast slew rate facilitating high-speed analog operations. Wide operating temperature range suitable for harsh environments. RoHS compliance and automotive standard certification for quality assurance. Compact physical dimensions for space-constrained PCB layouts.
Ideal for integration in electronic circuits requiring reliable, precise operational amplification such as instrumentation, automotive control systems, and industrial automation. This amplifier enhances system performance in demanding analog applications.
Explore more professional-grade electronics components and amplifiers in the Electronics & Electricals category at EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TLV272IP has a gain bandwidth product of 3 MHz, making it suitable for high-performance analog signal processing applications.
This model operates within a temperature range of -40°C to 125°C, which supports robust industrial applications.
The maximum output current for this operational amplifier is 13 mA, which is suitable for driving standard analog circuits.
The TLV272IP features dual channels, allowing for versatile applications in multi-signal processing.
It has a low input bias current of 1 nA, ensuring precise analog performance.
The input offset voltage for this model is 7 mV, contributing to its accuracy in analog signal amplification.
The slew rate of this operational amplifier is 2.4 V/μs, enabling fast signal processing capabilities.
This model supports through-hole mounting, which allows for easy integration into PCB designs.
The dimensions of this operational amplifier are 4.57 mm in height, 9.81 mm in length, and 6.35 mm in width.
It complies with RoHS and the automotive standard AEC-Q100, ensuring quality and reliability for various applications.
The operational amplifier requires a supply voltage between 5 V and 16 V for proper operation.
This operational amplifier is ideal for applications in instrumentation, automotive control systems, and industrial automation, where reliable signal amplification is required.
