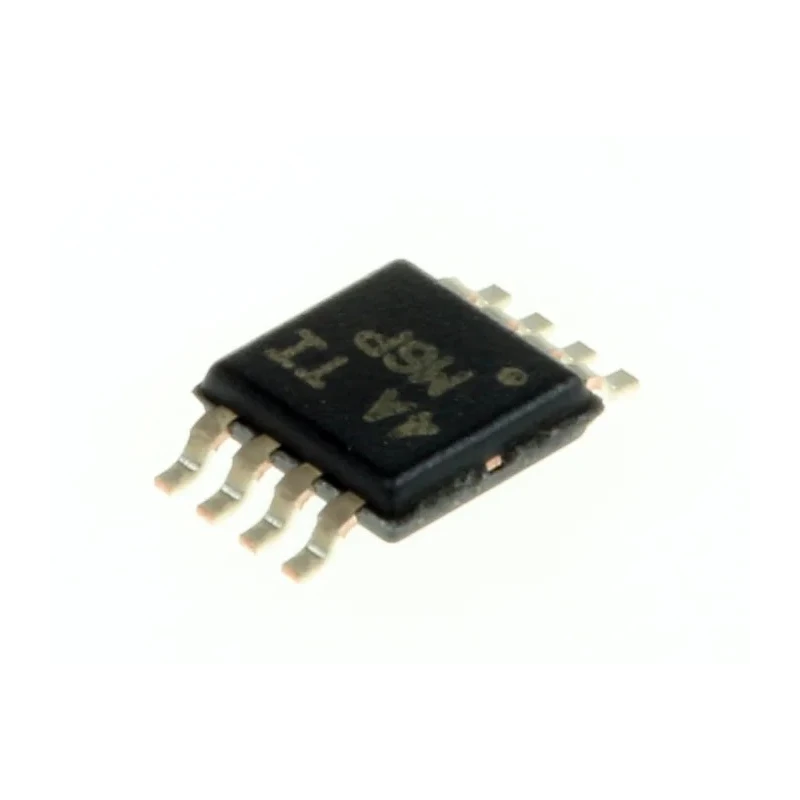

Texas Instruments Operational Amplifier, 700 kHz Gain Bandwidth, 8-Pin MSOP, 5-30V LM358ADGKR

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments Operational Amplifier, 700 kHz Gain Bandwidth, 8-Pin MSOP, 5-30V LM358ADGKR

Name: Texas Instruments Operational Amplifier, 700 kHz Gain Bandwidth, 8-Pin MSOP, 5-30V LM358ADGKR
Brand: Texas Instruments
SKU: 202711



Category Operational Amplifier Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	0.97mm
Length	3mm
Model	LM358ADGKR
Width	3mm
Mount Type	Surface
Series	LM358A
Output Current	-60mA
Maximum Operating Temperature	70°C
Package Type	MSOP
Minimum Operating Temperature	0°C
Number Of Channels	2
Standards/Approvals	RoHS
Pin Count	8
Maximum Supply Voltage	30V
Minimum Supply Voltage	5V
GBP - Gain Bandwidth Product	700kHz
Input Bias Current	-250 nA
Vos - Input Offset Voltage	7 mV
Slew Rate	0.3V/μs
Input Offset Current	50 nA
LM358ADR2G onsemi, Operational Amplifier, 1 MHz, 8-Pin 32V SOICBrand	onsemi

Key Features

The amplifier provides dual channel operation for versatile signal processing.
Supports a wide supply voltage range from 5V to 30V for various industrial applications.
Compact 3 mm x 3 mm x 0.97 mm MSOP packaging supports compact designs and space saving.
Features low input bias current of -250 nA and input offset voltage of 7 mV for precision signal amplification.
Slew rate of 0.3 V/μs permits stable performance in general-purpose analog circuits.
Operating temperature from 0°C to 70°C ensures reliable function in typical industrial environments.
Meets RoHS compliance standards, ensuring environmentally responsible manufacturing.
Output current capability of -60 mA supports driving moderate loads effectively.

Product Description

Texas Instruments LM358ADGKR is a dual channel operational amplifier designed to operate with a gain bandwidth product of 700 kHz. Packaged in a compact 8-pin MSOP surface mount package measuring 3 mm in length, 3 mm in width, and 0.97 mm in height, it facilitates compact and efficient circuit design. The device supports a supply voltage ranging from 5V to 30V, accommodating diverse industrial and laboratory applications.

This operational amplifier features precise electrical characteristics such as an input bias current of -250 nA, input offset voltage of 7 mV, and a slew rate of 0.3 V/μs that enable it to handle analog signal amplification with adequate accuracy and stability. It can deliver output currents up to -60 mA suitable for various driving requirements.

Designed for general-purpose use, the LM358ADGKR operates reliably within a temperature range of 0°C to 70°C. Compliance with RoHS standards ensures it meets modern environmental guidelines for electronic components. The device is suitable for use in industrial machines, laboratory instruments, signal processing equipment, and other electronic devices requiring dependable amplification with low power consumption.

The amplifier provides dual channel operation for versatile signal processing. Supports a wide supply voltage range from 5V to 30V for various industrial applications. Compact MSOP packaging supports compact and space-saving design.

Low input bias current and offset voltage ensure accurate amplification. Suitable for operation within 0°C to 70°C industrial temperature range. RoHS compliant for environmentally responsible manufacturing. Output current up to -60 mA supports moderate load driving.

Applicable for industrial, laboratory, and electronic manufacturing.

This Texas Instruments LM358ADGKR Operational Amplifier is ideal for engineers and manufacturers seeking a reliable, general purpose amplifier for various applications including testing instrumentation, automation equipment, and consumer electronics. Explore more semiconductor amplifiers and components on EnvMart for your project requirements.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The gain bandwidth product of this operational amplifier is 700 kHz, allowing it to handle a variety of signal processing tasks effectively.

It supports a wide supply voltage range from 5V to 30V, making it suitable for various industrial applications.

This model has dimensions of 3 mm in length, 3 mm in width, and 0.97 mm in height, packaged in an 8-pin MSOP format.

It can deliver output currents up to -60 mA, which is suitable for driving moderate loads.

The input bias current is -250 nA, which contributes to its precision in signal amplification.

It operates reliably within a temperature range of 0°C to 70°C, suitable for typical industrial environments.

The slew rate is 0.3 V/μs, allowing for stable performance in general-purpose analog circuits.

Yes, it meets RoHS compliance standards, ensuring environmentally responsible manufacturing practices.

The input offset voltage is 7 mV, which aids in achieving accurate amplification of signals.

This operational amplifier uses surface mount technology, specifically in an MSOP package.

It is applicable in industrial machines, laboratory instruments, signal processing equipment, and other electronic devices requiring dependable amplification.
