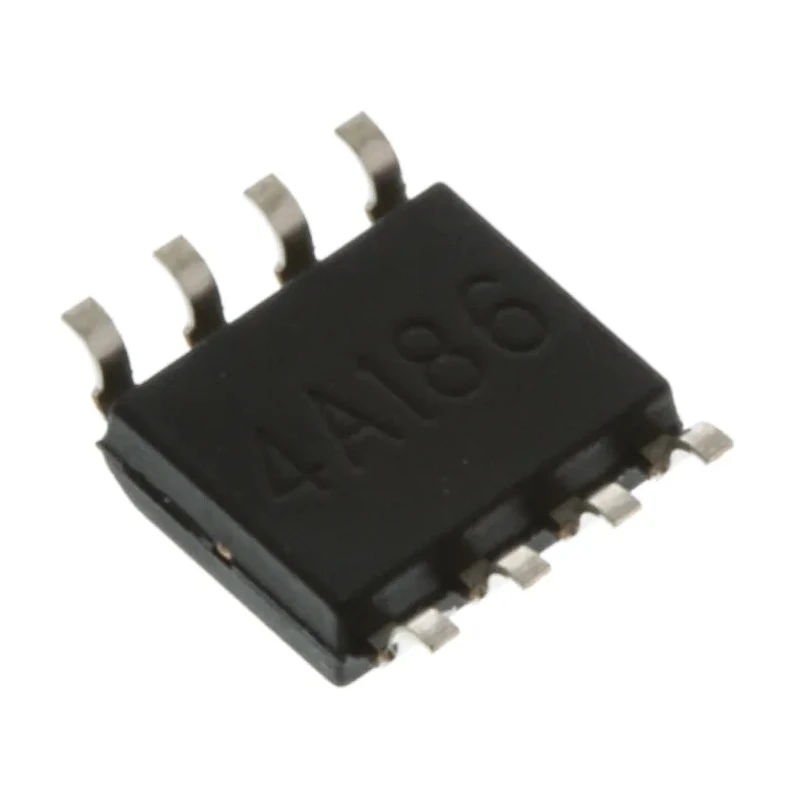

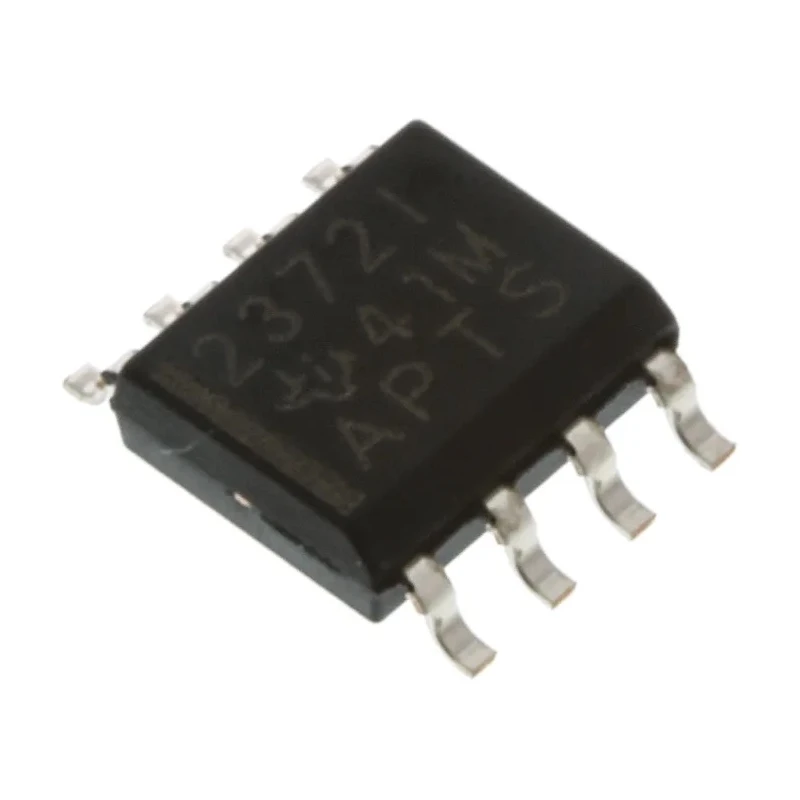

Texas Instruments Operational Amplifier, 3 MHz Gain Bandwidth, 16V Max Supply, 8-Pin SOIC, 2 Channels TLV2372IDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 4.9mm |
| Model | TLV2372IDR |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | TLV2372 |
| Output Current | 100mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | REACH, RoHS |
| Pin Count | 8 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 1 nA |
| Vos - Input Offset Voltage | 6 mV |
| Slew Rate | 2.4V/μs |
Key Features
- The device features 2 amplifier channels in an 8-pin SOIC package.
- It operates over a temperature range of -40°C to 125°C, ensuring reliable performance in various environments.
- Input bias current is extremely low at 1 nA, contributing to high accuracy.
- The slew rate is 2.4 V/μs, enabling fast response times.
- Input offset voltage is minimized to 6 mV for improved signal fidelity.
- Output current capability is up to 100 mA for driving loads effectively.
- The compact package dimensions are 4.9 mm length, 3.91 mm width, and 1.58 mm height.
- Designed to meet automotive standard AEC-Q100, and compliant with REACH and RoHS standards.
Product Description
Texas Instruments TLV2372IDR is a low voltage operational amplifier offering precise signal amplification with a gain bandwidth product of 3 MHz. Housed in an 8-pin SOIC surface-mount package, this device provides two independent amplifier channels with excellent electrical characteristics suitable for industrial, automotive, and electronic applications.
The operational amplifier supports a wide supply voltage range from 3 V up to 16 V and functions reliably across harsh temperatures from -40°C to 125°C. Its ultra-low input bias current of 1 nA ensures minimal signal distortion, making it ideal for sensitive sensor interfaces and measurement systems.
With a slew rate of 2.4 V/μs and an input offset voltage of 6 mV, the TLV2372IDR offers fast and accurate amplification. It can deliver an output current of up to 100 mA, supporting moderate load driving capabilities in typical circuits.
The small form factor with dimensions of 4.9 mm length, 3.91 mm width, and 1.58 mm height facilitates compact PCB designs. The product complies with stringent automotive quality standards (AEC-Q100) and environmental regulations (REACH, RoHS), ensuring suitability for automotive and other regulated industries.
This operational amplifier is widely used in applications including signal conditioning, active filtering, data acquisition systems, and portable instrumentation. Its surface mount package enhances manufacturing efficiency and board space utilization.
The device contains 2 independent amplifier channels, enhancing multiplexing and signal processing options. It features a surface mount SOIC package for automated assembly processes. Maximum supply voltage capability of 16V enables robust operation in various electronic system architectures.
Low input offset voltage and bias currents improve overall circuit accuracy. Designed to meet automotive and environmental standards for quality and safety. Explore more electronic components and Operational Amplifiers on EnvMart for your industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this operational amplifier is 3 MHz.
The maximum supply voltage for the TLV2372IDR is 16V.
It has an extremely low input bias current of 1 nA.
This model operates over a temperature range of -40°C to 125°C.
The TLV2372IDR features 2 independent amplifier channels.
It can deliver an output current of up to 100 mA.
The dimensions are 4.9 mm in length, 3.91 mm in width, and 1.58 mm in height.
The slew rate is 2.4 V/μs, allowing for fast response times.
The input offset voltage is minimized to 6 mV for improved signal fidelity.
It is housed in an 8-pin SOIC surface-mount package.
Yes, it is designed to meet automotive standard AEC-Q100 and is compliant with REACH and RoHS standards.
This operational amplifier is suitable for applications such as signal conditioning, active filtering, and data acquisition systems.
