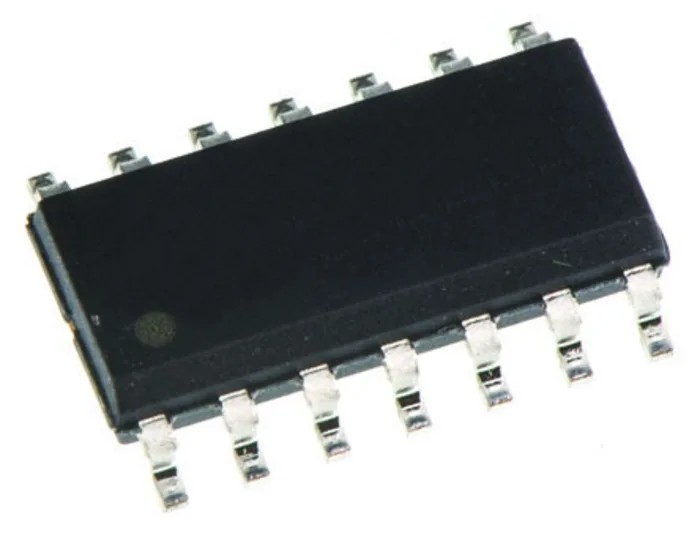

Texas Instruments Operational Amplifier 4-Channel Surface Mount SOIC Package 3 MHz Bandwidth 15V TL084IDR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | TL084IDR |
| Width | 3.91mm |
| Mount Type | Surface |
| Low Noise | 18nV/√Hz typical at 1 kHz |
| Series | TL084 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Total Harmonic Distortion | 0.003 % |
| Pin Count | 14 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 15V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | 20 nA |
| Vos - Input Offset Voltage | 9 mV |
| Slew Rate | 13V/μs |
| Input Offset Current | 10 nA |
| Wide supply voltage range | ±5 to ±15V |
| High Slew Rate | 13 V/μs typical |
| Low Total Harmonic Distortion | 0.003% typical |
Key Features
- Features JFET input for low input bias currents and high slew rate.
- Operates with a wide supply voltage range from 5V to 15V.
- Low input offset voltage of 9 mV ensures accurate amplification.
- Slew rate of 13 V/μs enables fast signal processing.
- Low total harmonic distortion of 0.003% minimizes signal distortion.
- Suitable for audio and signal processing applications due to low noise characteristics.
- Compact SOIC 14-pin surface mount package with dimensions 8.65 x 3.91 x 1.58 mm.
- Operating temperature range from -40°C to 85°C for robust industrial use.
Product Description
Texas Instruments TL084IDR is a high-performance operational amplifier featuring a JFET input stage with very low input bias currents and low offset currents, making it ideal for precision amplification tasks. This quad-channel amplifier operates within a wide voltage supply range of 5 to 15V, supporting robust circuit designs in industrial and commercial electronics.
The device has a gain bandwidth product of 3 MHz and a high slew rate of 13 V/μs, enabling efficient handling of high-frequency signals with minimal distortion. Its low total harmonic distortion of 0.003% ensures signal accuracy, suitable for audio, instrumentation, and general signal conditioning applications.
Enclosed in a compact 14-pin SOIC surface mount package with dimensions 8.65mm length, 3.91mm width, and 1.58mm height, the TL084IDR is designed for space-efficient PCB layouts. The device operates efficiently in harsh environments with an operating temperature range from -40°C to 85°C, and it meets automotive quality standard AEC-Q100, ensuring reliability in automotive electronics and other stringent applications.
Additional features include low noise operation at 18nV/√Hz typical at 1 kHz, offset adjustment, and external compensation options, providing design flexibility for various analog signal processing tasks.
Features JFET input for low input bias currents and high slew rate. Operates with a wide supply voltage range from 5V to 15V. Low input offset voltage of 9 mV ensures accurate amplification. Slew rate of 13 V/μs enables fast signal processing.
Low total harmonic distortion of 0.003% minimizes signal distortion. Suitable for audio and signal processing applications due to low noise characteristics. Compact SOIC 14-pin surface mount package with dimensions 8.65 x 3.91 x 1.58 mm.
Operating temperature range from -40°C to 85°C for robust industrial use. Includes automotive standard compliance with AEC-Q100.
This operational amplifier is widely used in industrial, audio, automotive, laboratory, and instrumentation applications where high precision and low distortion signal amplification are critical. Its surface mount design enables modern automated assembly and space-saving electronic packaging.
Explore more Operational Amplifiers and semiconductor components on EnvMart for comprehensive electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The TL084IDR has a gain bandwidth product of 3 MHz, making it suitable for various signal processing applications.
This operational amplifier operates within a temperature range of -40°C to 85°C, allowing it to function effectively in harsh environments.
The input offset voltage for the TL084IDR is 9 mV, which ensures accurate amplification of signals.
This model features 4 channels, allowing for multiple signal processing tasks in a single package.
The maximum supply voltage for the TL084IDR is 15V, which supports a wide range of applications.
The TL084IDR has a slew rate of 13 V/μs, enabling fast signal processing capabilities.
The TL084IDR comes in a compact SOIC package with dimensions of 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height.
The total harmonic distortion of the TL084IDR is 0.003%, which minimizes signal distortion during amplification.
This model features a JFET input stage, which provides low input bias currents and high slew rates.
Yes, the TL084IDR meets the automotive quality standard AEC-Q100, ensuring reliability in automotive applications.
The operational amplifier has a typical low noise performance of 18nV/√Hz at 1 kHz, making it suitable for audio applications.
The minimum supply voltage for this operational amplifier is 5V, allowing for versatile circuit designs.
