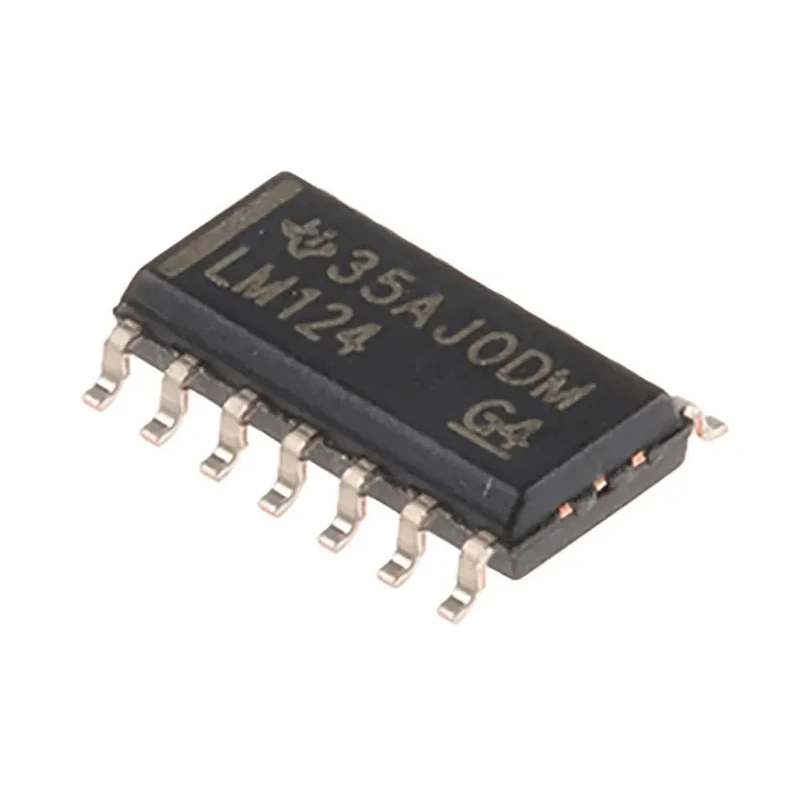

Texas Instruments Operational Amplifier 4-Channel 1.2 MHz 14-Pin SOIC Surface Mount LM124DR
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | LM124DR |
| Width | 3.91mm |
| Mount Type | Surface |
| Series | LM124 |
| Output Current | -10mA |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Number Of Channels | 4 |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | -300 nA |
| Vos - Input Offset Voltage | 7 mV |
| Slew Rate | 0.5V/μs |
| Input Offset Current | 100 nA |
Key Features
- Operates with supply voltage between 5 V and 30 V.
- Input offset voltage is 7 mV ensuring precision performance.
- High maximum operating temperature of 125°C suitable for demanding environments.
- Low input bias current of -300 nA for minimal signal distortion.
- Compact dimensions with a length of 8.65 mm and width of 3.91 mm.
- RoHS compliant ensuring adherence to environmental standards.
- Slew rate of 0.5 V/μs allowing moderate-speed signal amplification.
- 4 operational amplifier channels in a single device for versatile circuit design.
Product Description
Texas Instruments LM124DR is a high-quality operational amplifier designed for general-purpose applications. This quad-channel amplifier provides a gain bandwidth of 1.2 MHz and is housed in a 14-pin SOIC surface mount package, delivering compactness and ease of integration into modern PCB layouts.
Operating with a supply voltage range from 5 V to 30 V, LM124DR is suitable for various power environments, including industrial, laboratory, and electronic manufacturing settings. Its low input bias current of -300 nA and input offset voltage of 7 mV ensure precise analog signal amplification, essential in measurement and control systems.
The device supports temperatures from -55°C to 125°C, making it reliable for applications requiring operation in harsh or variable thermal conditions. The slew rate of 0.5 V/μs allows effective signal response in moderate-frequency analog circuits.
The LM124 series amplifiers are RoHS compliant and provide four independent amplifiers in a single package, ideal for compact multi-channel signal processing without compromising performance. The surface mount SOIC package simplifies automated assembly processes and enhances production efficiency.
Typical industrial uses include signal conditioning in instrumentation, data acquisition systems, analog circuit design for communication equipment, and general laboratory electronics. The LM124DR supports a broad range of electronic applications requiring stable and precise operational amplification.
Operates over a wide supply voltage range of 5 V to 30 V. Quad operational amplifier channels in one SOIC package. Low input bias and offset currents ensure accurate signal processing. Temperature range from -55°C to 125°C for industrial reliability.
RoHS compliant manufacturing for environmentally friendly applications. Slew rate supports moderate speed analog signal amplification. Compact package dimensions enable space-saving PCB designs. Suitable for industrial, laboratory, and electronic manufacturing use cases.
Explore the wide selection of Operational Amplifiers at EnvMart for industrial and laboratory needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This operational amplifier operates with a supply voltage range from 5 V to 30 V.
The compact dimensions of this operational amplifier are 8.65 mm in length, 3.91 mm in width, and 1.58 mm in height.
The LM124DR can operate at a maximum temperature of 125°C, making it suitable for demanding environments.
This model has an input offset voltage of 7 mV, ensuring precision in signal amplification.
The input bias current for this operational amplifier is -300 nA, which helps minimize signal distortion.
The slew rate of this operational amplifier is 0.5 V/μs, allowing for moderate-speed signal amplification.
Yes, the LM124DR is RoHS compliant, ensuring adherence to environmental standards.
This operational amplifier is housed in a 14-pin SOIC surface mount package, facilitating easy integration into PCB layouts.
The LM124DR is suitable for applications such as signal conditioning in instrumentation, data acquisition systems, and general laboratory electronics.
The output current capability of this model is -10 mA, which is suitable for various operational needs.
