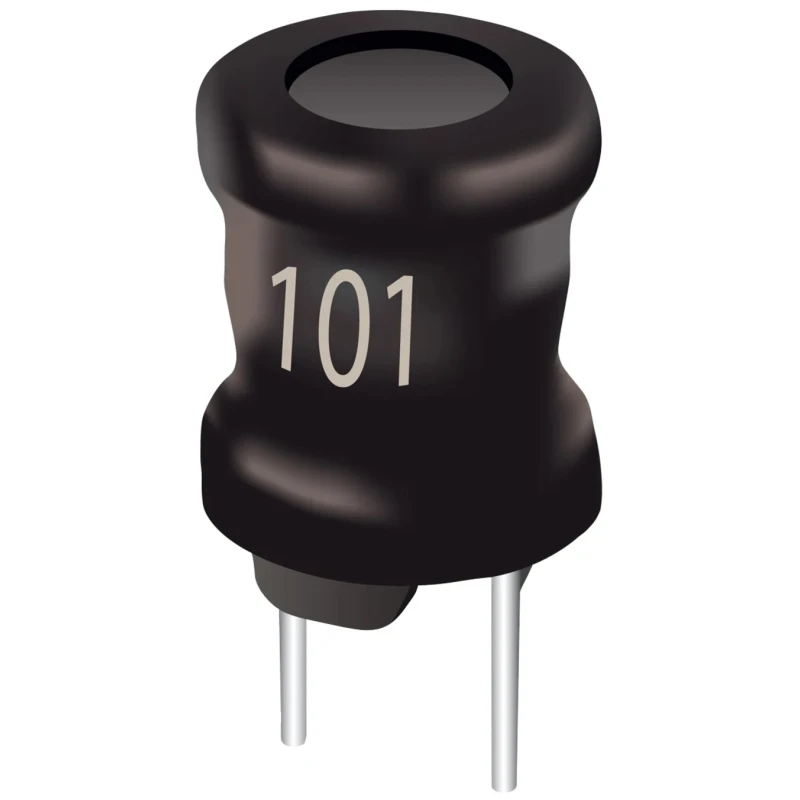

Bourns 47 mH Ferrite Leaded Inductor, Max SRF 100 kHz, Q 20, 30 mA Idc, 99 Ω Rdc, Radial Mount RLB0913
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 8.5mm |
| Brand | Bourns |
| Height | 12.5mm |
| Length | 17.5mm |
| Model | RLB0913 |
| Depth | 12.5mm |
| Packaging | Tray |
| Mount Type | Radial |
| Series | RLB0913 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Test Frequency | 0.08MHz |
| Core Material | Ferrite |
| Inductance | 47mH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 30mA |
| Maximum DC Resistance | 99Ω |
| Inductance Tolerance | ±10 % |
| Termination Style | Radial Lead |
| Maximum Self Resonant Frequency | 100kHz |
| Minimum Quality Factor | 20 |
| Lead Pitch | 5mm |
| Lead Diameter | 0.65mm |
| Bourns 47 mH Ferrite Leaded Inductor, Max SRF | 100 kHz, Q:20, 30 mA Idc, 99 Ω Rdc, RLB0913 |
Key Features
- Inductance value is 47 mH with a tolerance of ±10%.
- Maximum DC current rating is 30 mA suitable for low current applications.
- Features radial mounting style with 0.65 mm lead diameter and 5 mm lead pitch.
- Maximum DC resistance is 99 Ω ensuring minimal resistive losses.
- Ferrite core material enables efficient magnetic properties and heat resistance.
- Operating temperature ranges from -55°C to 125°C for harsh environment use.
- Minimum quality factor of 20 measured at 0.08 MHz for efficient performance.
- Compact dimensions with diameter 8.5 mm, height and depth 12.5 mm, and length 17.5 mm.
Product Description
Bourns RLB0913 47 mH Ferrite Leaded Inductor is a high-performance radial leaded inductor designed for applications including DC-DC converters, power supplies, output chokes, and EMI/RFI filters. This component provides reliable inductance of 47 mH with a tolerance of ±10%. It supports a maximum DC current of 30 mA and has a maximum DC resistance of 99 Ω, contributing to minimal power losses.
The inductor features a ferrite core material providing strong magnetic characteristics and stability under high temperatures up to 125°C. Operating temperature ranges from -55°C to 125°C, making it suitable for a variety of industrial and commercial electronics environments. The radial lead termination and lead diameter of 0.65 mm with 5 mm pitch facilitate secure PCB mounting and connectivity.
Mechanical dimensions are compact, with an 8.5 mm diameter, 12.5 mm height and depth, and 17.5 mm overall length. Its quality factor minimum of 20 at the test frequency of 0.08 MHz ensures efficient signal filtering and energy storage capability. The product is RoHS compliant, aligning with global environmental regulations.
This inductor series by Bourns provides stabilized electromagnetic characteristics with a maximum self-resonant frequency of 100 kHz, ideal for electronic circuits requiring precise inductance without interference. It is packaged in trays, supporting bulk handling and minimising damage during transport.
Industrial usages include electronics manufacturing, power management units in electrical devices, telecommunications equipment, and other fields requiring reliable inductors. This leaded inductor offers durability, performance stability, and efficient electromagnetic properties in a compact form factor.
Inductance: 47 mH with ±10% tolerance. Maximum DC current: 30 mA. Packaging: Tray. Mounting type: Radial lead. Ferrite core material ensuring optimal magnetic performance. Operating temperature range: -55°C to 125°C. Maximum DC resistance: 99 Ω.
Dimensions: Diameter 8.5 mm, Height 12.5 mm, Depth 12.5 mm, Length 17.5 mm. Compliance: RoHS. Minimum quality factor: 20 at 0.08 MHz test frequency. Explore a comprehensive range of Leaded Inductors on EnvMart for industrial and electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 47 mH with a tolerance of ±10%.
This inductor has a maximum DC current rating of 30 mA, making it suitable for low current applications.
The maximum DC resistance is 99 Ω, which helps ensure minimal resistive losses.
The dimensions are as follows: diameter 8.5 mm, height 12.5 mm, depth 12.5 mm, and length 17.5 mm.
It operates within a temperature range of -55°C to 125°C, suitable for harsh environments.
The minimum quality factor is 20, measured at a test frequency of 0.08 MHz, ensuring efficient performance.
This model uses a ferrite core material, which provides efficient magnetic properties.
It features a radial mounting style with a lead diameter of 0.65 mm and a lead pitch of 5 mm.
The maximum self-resonant frequency is 100 kHz, making it suitable for various electronic applications.
Yes, this inductor is RoHS compliant, aligning with global environmental regulations.
It is packaged in trays, which supports bulk handling and minimizes damage during transport.
This inductor is designed for applications including DC-DC converters, power supplies, output chokes, and EMI/RFI filters.
