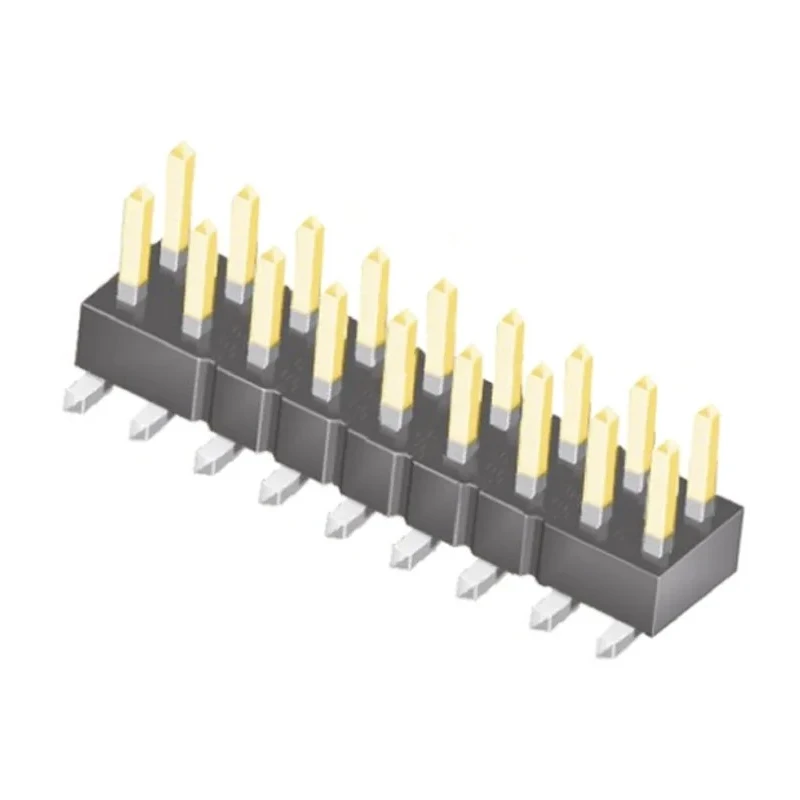

Samtec TSM Series Straight Surface Pin Header 18 Contacts 2 Row 2.54 mm Pitch Unshrouded TSM-109-01-L-DV
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 475V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 7A |
| Model | TSM-109-01-L-DV |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | TSM |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 18 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Mating Pin Length | 5.84mm |
Key Features
- Constructed with liquid crystal polymer housing for high durability.
- Phosphor bronze contacts plated with 0.25μm gold on posts ensure excellent conductivity.
- Supports a maximum current of 7A and voltage up to 475V.
- Designed for surface mount with straight orientation and male contacts.
- Operating temperature range from -55°C to 125°C suitable for diverse environments.
- Mating pin length is 5.84 mm for secure connectivity.
- Ideal for electronic assemblies requiring compact, high-performance pin header solutions.
Product Description
Samtec TSM-109-01-L-DV is a high-quality straight surface mount pin header featuring 18 phosphor bronze contacts arranged in 2 rows at 2.54 mm pitch. Its liquid crystal polymer housing provides mechanical strength and electrical insulation, suitable for advanced PCB applications.
The pins are gold-plated with 0.25μm thickness for superior corrosion resistance and reliable signal integrity. Rated for a current capacity of 7 amperes and voltage rating of 475 volts, this pin header supports demanding electrical loads.
Designed with surface mount technology (SMT) and unshrouded male contacts, it ensures easy soldering and integration into various circuit boards. The operating temperature range from -55°C to 125°C expands its usability in industrial, automotive, consumer electronics, and telecommunications applications.
This TSM series module is especially suited for board-to-board and wire-to-board connector systems where high-density pin arrangements and durable materials are required. Mating pin length of 5.84 mm provides robust mechanical connection with compatible sockets.
Constructed with liquid crystal polymer housing for mechanical stability and electrical isolation. Phosphor bronze contact material ensures excellent electrical conductivity and strength. Gold contact plating enhances wear resistance and signal reliability.
Supports currents up to 7A and voltages up to 475V. Wide operating temperature range from -55°C to 125°C supports varied industrial environments. Surface mount design with straight orientation simplifies PCB assembly. Unshrouded male contacts facilitate easy mating with multiple connector types.
This pin header is widely used in electronics manufacturing for reliable interconnection solutions across industrial, laboratory, telecom, automotive, and commercial sectors. Explore additional Samtec PCB connectors and headers for comprehensive electronic system integration solutions at EnvMart.
Explore more products in our PCB Pin Header category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports a maximum current of 7A and a voltage rating of 475V.
The contacts are arranged at a pitch of 2.54 mm.
The housing is constructed from liquid crystal polymer, providing mechanical strength and electrical insulation.
This pin header features 18 contacts arranged in 2 rows.
The mating pin length is 5.84 mm, ensuring a secure connection with compatible sockets.
It operates within a temperature range from -55°C to 125°C, suitable for various environments.
It uses solder termination for secure connections to the PCB.
The TSM-109-01-L-DV is designed with unshrouded male contacts, facilitating easy mating with other connectors.
It is widely used in industrial, automotive, consumer electronics, and telecommunications applications requiring reliable interconnections.
The contacts are made of phosphor bronze, which ensures excellent electrical conductivity.
It supports board-to-board and wire-to-board connector systems, making it versatile for various electronic assemblies.
The country of origin for this pin header is India.
