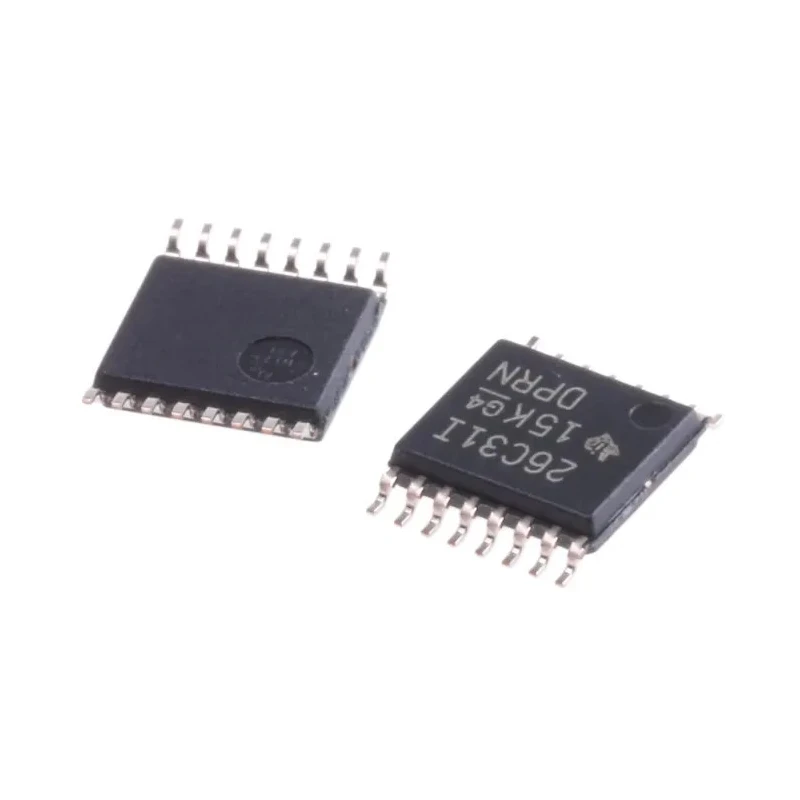

Texas Instruments Line Transmitter 3 State TSSOP 16-Pin BiCMOS Logic AM26C31IPW
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.2mm |
| Length | 5.1mm |
| Model | AM26C31IPW |
| Width | 6.6mm |
| Mount Type | Surface |
| Output type | 3 State |
| Series | AM26C31 |
| Input Type | Differential |
| Maximum Operating Temperature | 85°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| IC Type | Line Transmitter |
| Pin Count | 16 |
| Maximum Supply Voltage | 5.5V |
| Logic Family | BiCMOS |
| Logic Function | Line Driver |
| Minimum Supply Voltage | 4.5V |
| Maximum High Level Output Current | -20mA |
| Maximum Propagation Delay Time @ CL | 12ns |
| Supply Current | 3mA |
| Maximum Low Level Output Current | 20mA |
Key Features
- This line transmitter features differential input and 3 state output functionality.
- It operates with a supply voltage range of 4.5V to 5.5V.
- The device supports a maximum propagation delay time of 12ns at specified load.
- It is surface mountable with a compact 6.6mm width, 5.1mm length, and 1.2mm height.
- Designed for operation in temperature range from -40°C to 85°C for reliability.
- The maximum output current is ±20mA, suitable for RS-422 line drivers and interface circuits.
- Low quiescent supply current of approximately 3mA ensures efficient power usage.
- This component is ideal for industrial and electronic interface applications requiring robust line driving capability.
Product Description
Texas Instruments AM26C31IPW is a Line Transmitter IC designed for reliable RS-422 line driving applications. Featuring BiCMOS logic, this device provides differential input signals and a 3 state output, housed in a compact 16-Pin TSSOP package. Operating from 4.5V to 5.5V supply voltage, it ensures stable performance with a maximum propagation delay of 12ns, making it suitable for high-speed communication lines.
The transmitter supports output currents up to ±20mA, meeting the requirements for robust line transmission. Its surface mount design allows for efficient PCB layout with minimal footprint (6.6mm width, 5.1mm length, and 1.2mm height). The device operates over a wide industrial temperature range from -40°C to 85°C, ensuring durability in demanding environments.
Power consumption is minimized with a low supply current of 3mA, beneficial for energy-sensitive systems. The AM26C31IPW is widely used in industrial, manufacturing, and electronic system applications where differential line transmission and noise immunity are critical. Its absence of automotive standards indicates focus on general industrial electronics rather than automotive-grade applications.
This line transmitter features differential input and 3 state output functionality. It operates with a supply voltage range of 4.5V to 5.5V. The device supports a maximum propagation delay time of 12ns at specified load.
It is surface mountable with a compact 6.6mm width, 5.1mm length, and 1.2mm height. Designed for operation in temperature range from -40°C to 85°C for reliability. The maximum output current is ±20mA, suitable for RS-422 line drivers and interface circuits.
Low quiescent supply current of approximately 3mA ensures efficient power usage. This component is ideal for industrial and electronic interface applications requiring robust line driving capability. Explore the Electronics & Electricals category on EnvMart for other semiconductor solutions and related Line Interface ICs from Texas Instruments and other leading manufacturers.
