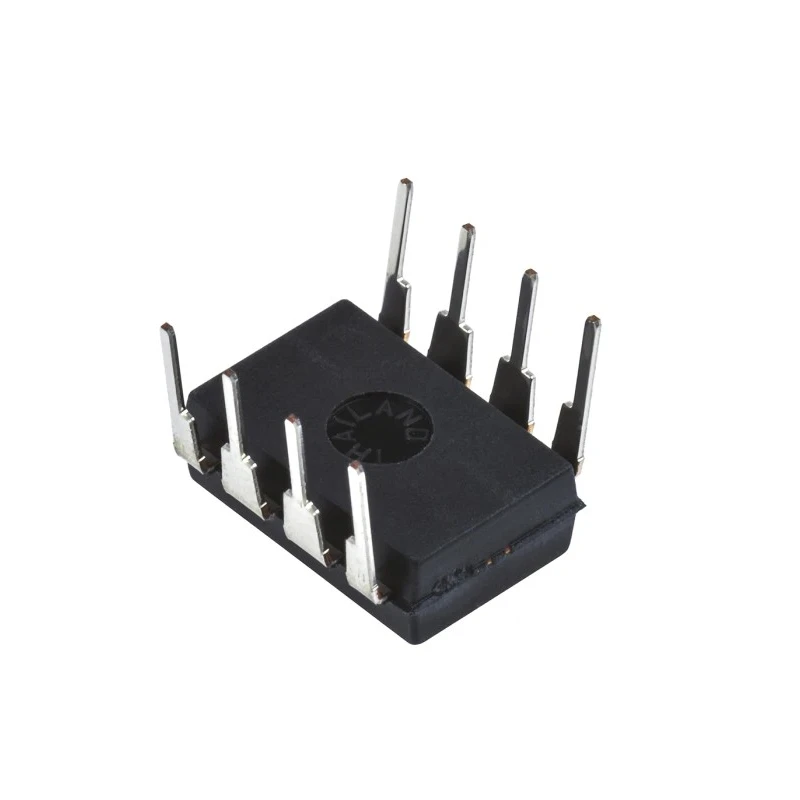

Texas Instruments Operational Amplifier 3 MHz 8-Pin 30V PDIP OPA551PA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 9.81mm |
| Model | OPA551PA |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | OPA551 |
| Output Current | 200mA |
| Maximum Operating Temperature | 125°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 30V |
| Minimum Supply Voltage | 4V |
| GBP - Gain Bandwidth Product | 3MHz |
| Input Bias Current | ±100 pA |
| Vos - Input Offset Voltage | ±5 mV |
| Slew Rate | 15V/μs |
Key Features
- High voltage and high current operational amplifier designed for power applications.
- Single channel device with 8 pins for through-hole mounting.
- Gain bandwidth product of 3 MHz suitable for precision amplification.
- Input bias and offset currents are ultralow at ±100 pA.
- Slew rate of 15V/μs for fast signal response.
- Operating temperature ranges from -40°C to 125°C.
- Output current capability up to 200 mA to drive low impedance loads.
- RoHS compliant ensuring environmental standards adherence.
Product Description
Texas Instruments OPA551PA Operational Amplifier is a high voltage and high current power operational amplifier designed for demanding industrial and electronic applications. Featuring a 3 MHz gain bandwidth product and housed in a robust 8-pin PDIP package, this device supports through-hole mounting for easy integration into various PCB layouts.
This amplifier operates with a supply voltage range from 4V up to 30V and delivers an output current of 200mA, making it ideal for driving low impedance and difficult loads such as MOSFETs, power transistors, bridge amplifiers, motor speed controllers, and servo amplifiers.
The OPA551PA offers ultralow input bias and offset currents of ±100 picoamperes, and a low input offset voltage of ±5 mV, ensuring high precision in analog signal processing tasks. Its slew rate of 15 V/μs provides fast response characteristics required in control systems and instrumentation.
Designed to operate reliably over a wide temperature range from -40°C to 125°C, this device is suitable for industrial, laboratory, and manufacturing environments. It complies with RoHS standards, ensuring compliance with environmental directives.
Physical dimensions measure 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height, making it compact for various embedded and instrumentation applications. Typical applications include use in power supplies, servo control, motor control, and instrumentation systems requiring high voltage and high current operational amplifiers.
High voltage and high current operational amplifier designed for power applications. Single channel device with 8 pins for through-hole mounting. Gain bandwidth product of 3 MHz suitable for precision amplification. Input bias and offset currents are ultralow at ±100 pA.
Slew rate of 15V/μs for fast signal response. Operating temperature ranges from -40°C to 125°C. Output current capability up to 200 mA to drive low impedance loads. RoHS compliant ensuring environmental standards adherence.
Compact dimensions of 9.81 mm length, 6.35 mm width, and 4.57 mm height. Explore EnvMart's selection of Operational Amplifiers for electronics and industrial uses to source reliable, quality components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of the OPA551PA operational amplifier is 3 MHz, making it suitable for precision amplification applications.
This model can deliver an output current of up to 200 mA, which is effective for driving low impedance loads.
The operational amplifier operates reliably over a temperature range from -40°C to 125°C, suitable for various industrial applications.
The input bias current for this operational amplifier is ultralow at ±100 picoamperes, ensuring high precision in signal processing.
This operational amplifier supports through-hole mounting, making it easy to integrate into various PCB layouts.
The dimensions of this operational amplifier are 9.81 mm in length, 6.35 mm in width, and 4.57 mm in height.
The slew rate of this model is 15 V/μs, providing fast signal response characteristics required in control systems.
The input offset voltage for this operational amplifier is ±5 mV, contributing to its precision in analog signal processing.
The maximum supply voltage for this operational amplifier is 30V, allowing it to handle a range of power applications.
Yes, the OPA551PA is RoHS compliant, ensuring adherence to environmental standards.
This operational amplifier is suitable for applications such as power supplies, servo control, motor control, and instrumentation systems.
The OPA551PA is a single-channel device, designed for various amplification tasks.
