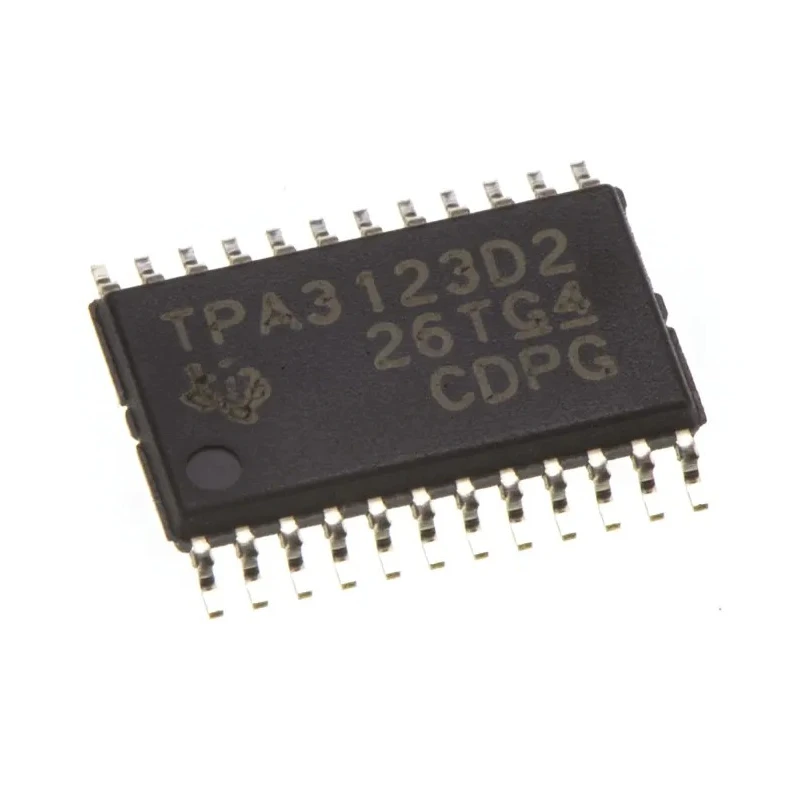

Texas Instruments 2-Channel Class D Audio Amplifier 20W HTSSOP 24-Pin TPA3123D2PWP

Free Delivery in India | Lowest Global Shipping Charges

Texas Instruments 2-Channel Class D Audio Amplifier 20W HTSSOP 24-Pin TPA3123D2PWP

Name: Texas Instruments 2-Channel Class D Audio Amplifier 20W HTSSOP 24-Pin TPA3123D2PWP
Brand: Texas Instruments
SKU: 202522
Price: 11.13 USD
Availability: InStock



Category Audio Amplifier ICs Brand Texas Instruments Condition New

Specifications

Country of Origin	India
Brand	Texas Instruments
Height	1.1mm
Length	7.8mm
Model	TPA3123D2PWP
Width	4.4mm
Output Power	20W
Mount Type	Surface
Series	TPA3123D
Maximum Operating Temperature	85°C
Package Type	HTSSOP
Minimum Operating Temperature	-40°C
Number Of Channels	2
Pin Count	24
Maximum Supply Voltage	28V
Minimum Supply Voltage	12V
Amplifier Type	Audio
Amplifier Class	Class D

Key Features

This audio amplifier is designed for surface mount applications with high efficiency class D operation.
It supports a wide supply voltage range from 12V to 28V ensuring versatility in different systems.
The device features stereo 2-channel output, suitable for speaker amplification.
Its compact dimensions are 7.8mm length, 4.4mm width, and 1.1mm height for space-saving PCB design.
Operating temperature ranges from -40°C to a maximum of 85°C for robust performance.
No automotive industry qualification applies to this amplifier IC.
This amplifier is well suited for consumer electronics, automotive audio, PDA, computer, and mobile device applications.
The package type is HTSSOP ensuring easy integration on PCBs.

Product Description

Texas Instruments TPA3123D2PWP is a 2-channel Class D audio amplifier integrated circuit housed in a compact 24-pin HTSSOP package, designed for efficient and high-quality speaker amplification delivering 20 watts of output power.

This audio amplifier IC supports a wide supply voltage range of 12V to 28V, making it adaptable for various electronic systems, including stereo audio equipment, automotive applications, televisions, PDAs, computers, and mobile devices.

The device features surface mount technology, enabling space-saving and high-density PCB assembly. Its compact dimensions of 7.8mm in length, 4.4mm in width, and 1.1mm in height allow integration into miniaturized electronic products.

Operating temperature range from -40°C up to +85°C ensures reliable performance in diverse environmental conditions without compromising efficiency or sound quality.

This amplifier operates using Class D technology, providing high efficiency and low heat dissipation compared to linear amplifiers, making it suitable for portable and battery-operated devices.

This amplifier IC features stereo output with 2 channels supporting up to 20W power. Designed for usage in various industrial sectors including consumer electronics, automotive sound systems, and communications equipment.

The HTSSOP package type provides a balance of compact size and thermal performance for moderate power applications. Compliance with no specific automotive standards highlights its general application scope. Mount type is surface mount for easy PCB assembly and manufacturing efficiency.

Overall, the Texas Instruments TPA3123D2PWP audio amplifier IC represents a reliable, compact, and efficient solution for mid-power audio amplification needs in a wide range of electronic devices and industrial applications.
