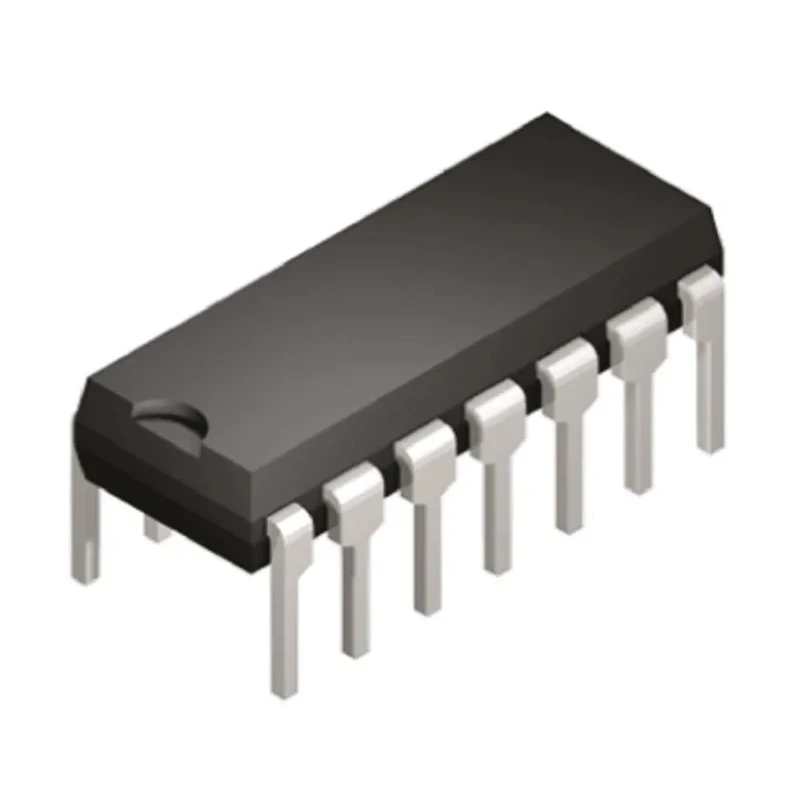

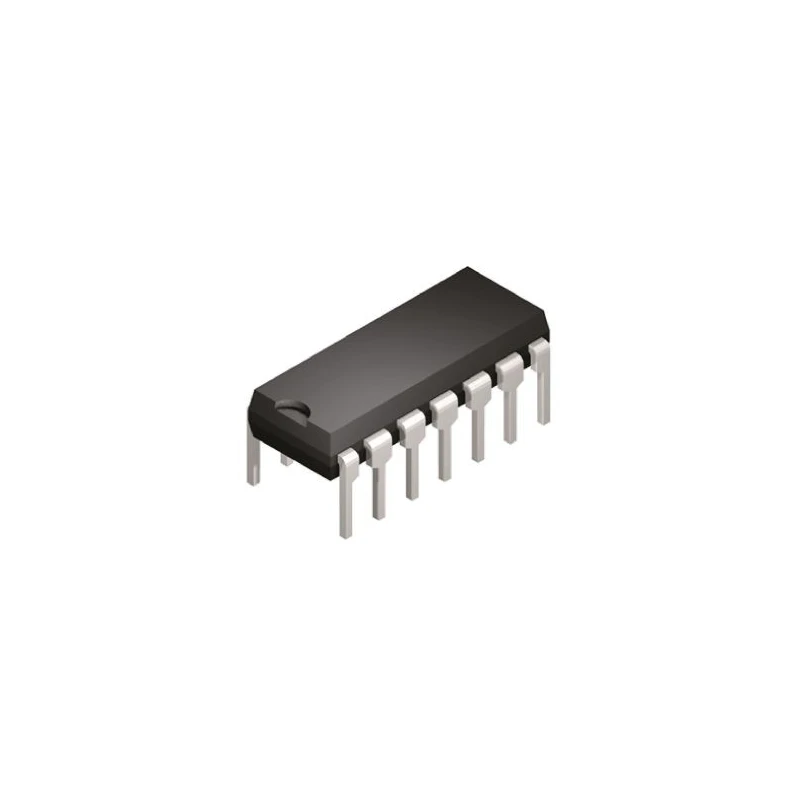

Texas Instruments Precision Operational Amplifier 8 MHz Gain Bandwidth, 14-Pin PDIP Through Hole OPA4228PA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 4.57mm |
| Length | 19.3mm |
| Model | OPA4228PA |
| Width | 6.35mm |
| Mount Type | Through Hole |
| Series | OPA4228 |
| Maximum Operating Temperature | 85°C |
| Package Type | PDIP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Pin Count | 14 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 2.5V |
| GBP - Gain Bandwidth Product | 8MHz |
| Input Bias Current | ±10 nA |
| Slew Rate | 11V/μs |
Key Features
- Features a high gain bandwidth product of 8 MHz.
- Includes 4 operational amplifier channels in a 14-pin PDIP package.
- Supports a maximum supply voltage of 18V and minimum of 2.5V for versatility.
- Operates reliably across temperatures from -40°C to 85°C.
- Offers a low input offset voltage of ±200 μV for precision applications.
- Possesses a fast slew rate of 11 V/μs for rapid response.
- Input bias current is low at ±10 nA, ensuring minimal loading.
- Ideal for demanding applications requiring accuracy and low drift over time and temperature.
Product Description
Texas Instruments OPA4228PA precision operational amplifier is engineered for high accuracy and low parametric drift over varying time and temperature conditions, suitable for advanced electronic applications. It features a gain bandwidth product of 8 MHz and is presented in a 14-pin plastic dual in-line package (PDIP) with through-hole mount.
This quad-channel operational amplifier supports a wide supply voltage range from 2.5V to 18V, enabling flexible design integration. With an input offset voltage of ±200 μV and an input bias current of ±10 nA, it offers precise signal amplification with minimal error.
The amplifier operates across a temperature range from -40°C to 85°C, making it dependable for industrial, laboratory, and instrumentation purposes. A fast slew rate of 11 V/μs ensures quick signal transitions, enhancing performance in dynamic systems.
Typical applications include transducer and strain gauge amplifiers, precision integrators, active filters, and high-accuracy instrumentation circuits. This device is part of the renowned Burr Brown OPA series, known for reliability in demanding environments.
High gain bandwidth product (8 MHz) for precision amplification. Four independent op amp channels in a single package. Wide operating voltage range (2.5V to 18V) suitable for diverse circuits. Low input offset voltage and bias current for accuracy.
Robust temperature range (-40°C to 85°C) for industrial use. Fast slew rate (11 V/μs) for responsive signal handling. Through-hole 14-pin PDIP packaging for easy PCB integration.
This operational amplifier is widely used in industrial control systems, instrumentation, test equipment, medical devices, and precision measurement setups. Its high performance and flexibility enable engineers and designers to achieve reliable analog signal processing and amplification.
Explore EnvMart's selection of precision Operational Amplifiers to find components tailored to your exact technical and industrial requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The OPA4228PA features a gain bandwidth product of 8 MHz, which supports precision amplification in various applications.
It supports a wide supply voltage range from 2.5V to 18V, allowing for flexible design integration in various circuits.
This model operates reliably across a temperature range from -40°C to 85°C, making it suitable for industrial applications.
The OPA4228PA includes four independent operational amplifier channels in a single package.
It has a low input offset voltage of ±200 μV, which is beneficial for precision applications.
The operational amplifier possesses a fast slew rate of 11 V/μs, allowing for rapid signal response.
This model is packaged in a 14-pin plastic dual in-line package (PDIP) with through-hole mounting.
The input bias current is low at ±10 nA, ensuring minimal loading on the input signal.
Typical applications include transducer and strain gauge amplifiers, precision integrators, active filters, and high-accuracy instrumentation circuits.
The dimensions of this operational amplifier are 19.3mm in length, 6.35mm in width, and 4.57mm in height.
It is part of the Burr Brown OPA series, known for its reliability in demanding environments.
The country of origin for the OPA4228PA is India.
