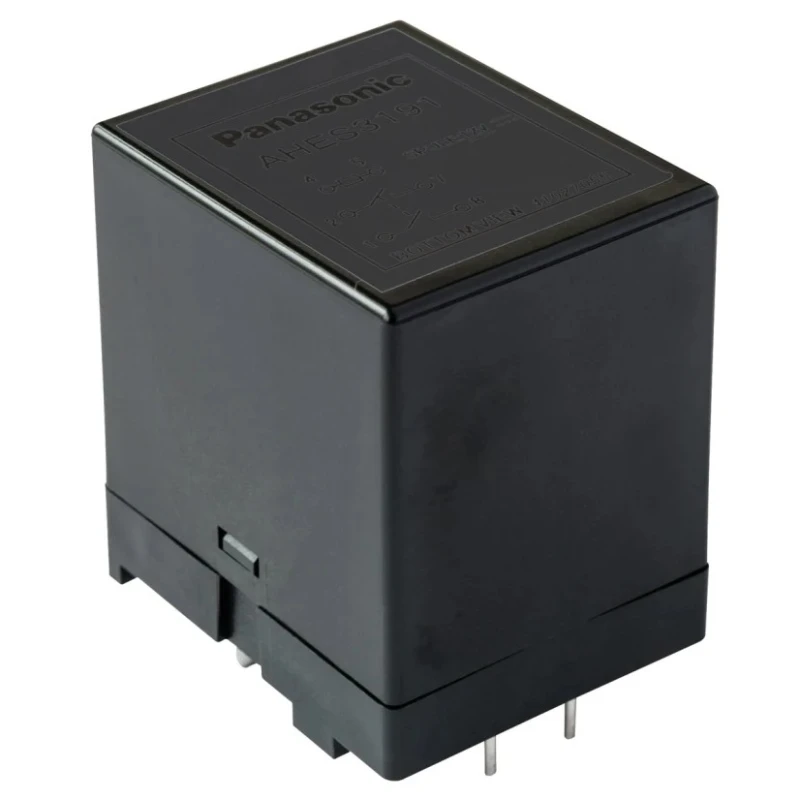

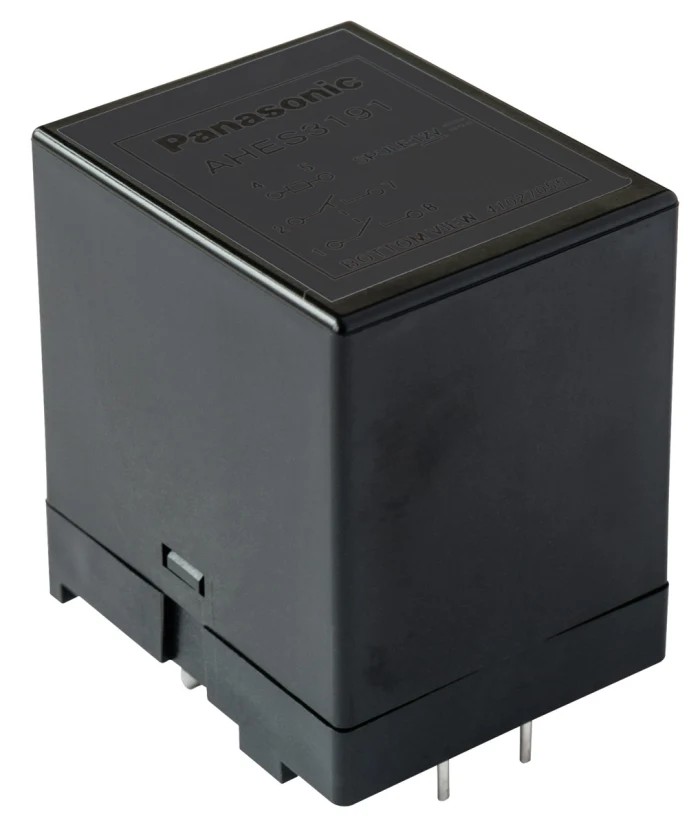

Panasonic PCB Power Relay 24V dc Coil 35A Switching Current HE-S Series AHES4292

Free Delivery in India | Lowest Global Shipping Charges

Panasonic PCB Power Relay 24V dc Coil 35A Switching Current HE-S Series AHES4292

Name: Panasonic PCB Power Relay 24V dc Coil 35A Switching Current HE-S Series AHES4292
Brand: Panasonic
SKU: 202251
Price: 31.98 USD
Availability: InStock



Category Power Relays Brand Panasonic Condition New

Specifications

Country of Origin	Thailand
Brand	Panasonic
Height	40mm
Length	30mm
Model	AHES4292
Width	36mm
Mount Type	PCB
Contact Material	Silver Alloy
Series	HE-S
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Switching Current	35A
Terminal type	PCB Pin
Contact Resistance	100mΩ
Standards/Approvals	VDE, RoHS
Coil Resistance	306.4Ω
Coil Voltage	24V dc
Switching DC Voltage	110V dc
Switching AC Voltage	110V ac
Coil Power	1.88W

Key Features

Compact design suitable for PCB mounting.
Coil voltage rated at 24V dc for efficient control.
High switching current capacity of 35A.
Wide operating temperature range from -40°C to 85°C.
Silver alloy contact material ensures durability.
Contact resistance maintained at 100mΩ for reliable switching.
Supports switching AC voltage up to 110V and DC voltage up to 110V.
Complies with VDE and RoHS standards.

Product Description

Panasonic AHES4292 PCB Power Relay is a compact and robust relay designed for high power applications with a 24V dc coil and 35A switching current capacity. It is built to withstand stressful industrial and energy management conditions.

The relay is designed for PCB mounting with PCB pin terminals and is part of the HE-S series that ensures reliable and efficient operation. It features a coil resistance of 306.4Ω and a coil power rating of 1.88W, suitable for precise control in automation systems.

Operating temperature ranges from -40°C to 85°C provide versatility in harsh environments. The relay contacts are made from silver alloy with low contact resistance of 100mΩ, enabling stable switching performance.

This power relay supports switching AC and DC voltages up to 110V, making it applicable in photovoltaic power generation systems such as solar inverters, uninterruptible power supplies (UPS), industrial equipment, air conditioning systems, and other automation applications.

Compact PCB-mount relay for space-efficient designs. High current switching capacity of 35A for demanding applications. Robust coil and contact design for long service life. Wide temperature operation ensuring reliability in industrial environments.

VDE and RoHS certified for safety and environmental compliance.

With its high reliability and compliance standards, the Panasonic AHES4292 is suitable for various industrial, HVAC, renewable energy, and automation applications. This product supports modern industrial control systems requiring efficient and dependable power relay solutions.
