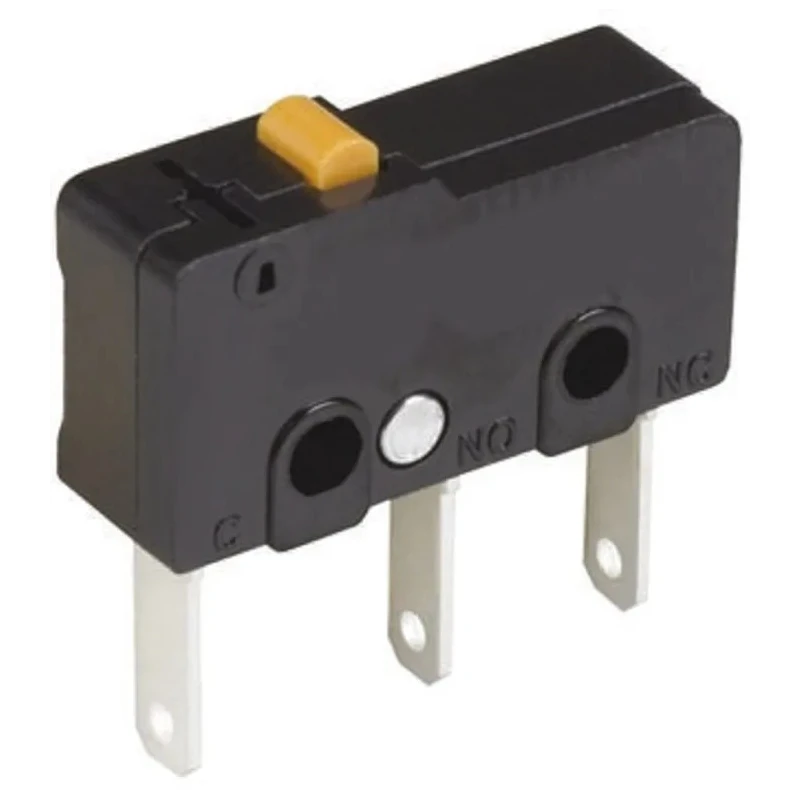

Omron Subminiature Pin Plunger Micro Switch, Tab Terminal, 5A, SPDT, IP40 SS-5T

Free Delivery in India | Lowest Global Shipping Charges

Omron Subminiature Pin Plunger Micro Switch, Tab Terminal, 5A, SPDT, IP40 SS-5T

Name: Omron Subminiature Pin Plunger Micro Switch, Tab Terminal, 5A, SPDT, IP40 SS-5T
Brand: Omron
SKU: 313128
Price: 1.4 USD
Availability: InStock



Category Micro Switches Brand Omron Condition New

Specifications

Country of Origin	Indonesia
Brand	Omron
Model	SS-5T
IP Rating	IP40
Series	SS
Maximum Operating Temperature	85°C
Contact Configuration	SPDT
Actuator Type	Pin Plunger
Minimum Operating Temperature	-25°C
Terminal type	Tab
Standards/Approvals	RoHS
Switch Contact Current	5A
Operating Force	1.47N
Mechanical Life	30000000Operations
Microswitch Type	Subminiature

Key Features

Designed with a simple stable two split spring for a long mechanical life of 30 million operations.
Operating force of 1.47 newtons allows reliable actuation with minimal effort.
Operational temperature range from -25°C up to 85°C enables versatile use.
RoHS compliant ensuring environmentally friendly manufacturing standards.
Constructed as a subminiature switch ideal for compact and precise switching applications.
IP40 rating provides protection against solid objects larger than 1 mm.
Tab type terminals suitable for quick connect and soldering applications.
Manufactured in Indonesia with consistent quality control.

Product Description

The Omron SS-5T subminiature micro switch features a pin plunger actuator and tab terminal, engineered for applications requiring reliable switching with a 5 amp contact current. The SPDT contact configuration supports versatile circuit arrangements commonly used in industrial automation, instrumentation, and electrical control systems.

Constructed with a simple and stable two split spring mechanism, this micro switch offers an extended mechanical life rated at 30 million operations, ensuring durability and maintenance-free performance. The operating force is 1.47 newtons, allowing sensitive and precise activation under various mechanical loads.

Designed to operate reliably in a temperature range from -25°C to 85°C, the SS-5T is suitable for industrial, laboratory, and HVAC control environments where temperature variations are expected. Its IP40 ingress protection rating provides limited protection against solid objects larger than 1 mm, making it suitable for moderately protected installations.

This switch complies with RoHS standards, meeting environmental compliance for hazardous substance restrictions. Its compact subminiature form factor makes it ideal for space-constrained environments and intricate control panels.

The tab terminal design supports quick connection techniques such as soldering or fast connect terminals (#110 style), facilitating easier installation and maintenance on printed circuit boards or wiring harnesses.

Simple and stable two split spring design for enhanced durability. Long mechanical lifetime of 30 million operations. Operating force rating of 1.47N for reliable actuation. Wide operational temperature range from -25°C to 85°C.

RoHS compliant manufacturing standards. Subminiature size for compact switch applications. IP40 rated ingress protection. Tab terminal type for quick connect and soldering. Manufactured in Indonesia ensuring quality and consistency.

This micro switch is suitable for use in electrical control panels, industrial machines, automation equipment, laboratory instrumentation, HVAC systems, and other industrial or commercial applications requiring precise and durable switching components.

Discover comprehensive selections and technical details about Omron switches and other automation hardware at EnvMart for industrial and commercial requirements.

Explore more products in our Micro Switches category.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

The operating temperature range of the Omron SS-5T micro switch is from -25°C to 85°C, allowing it to function effectively in various environments.

This model features a Single Pole Double Throw (SPDT) contact configuration, which supports versatile circuit arrangements for various applications.

The maximum contact current for the SS-5T micro switch is 5A, making it suitable for a range of electrical control applications.

The mechanical life of the Omron SS-5T is rated at 30 million operations, ensuring long-lasting performance in applications.

This micro switch uses a pin plunger actuator, which allows for reliable and precise activation in various applications.

The SS-5T is equipped with tab type terminals, which are suitable for quick connection techniques such as soldering or fast connect terminals.

The Omron SS-5T has an IP40 ingress protection rating, providing limited protection against solid objects larger than 1 mm.

This micro switch is manufactured in Indonesia, ensuring consistent quality control during production.

The SS-5T complies with RoHS standards, which restrict hazardous substances in manufacturing.

The operating force required for actuation of the SS-5T is 1.47 newtons, allowing for reliable actuation with minimal effort.

This micro switch is suitable for use in electrical control panels, industrial machines, automation equipment, laboratory instrumentation, and HVAC systems.

The series designation for this model is SS, indicating its classification within Omron's range of micro switches.
